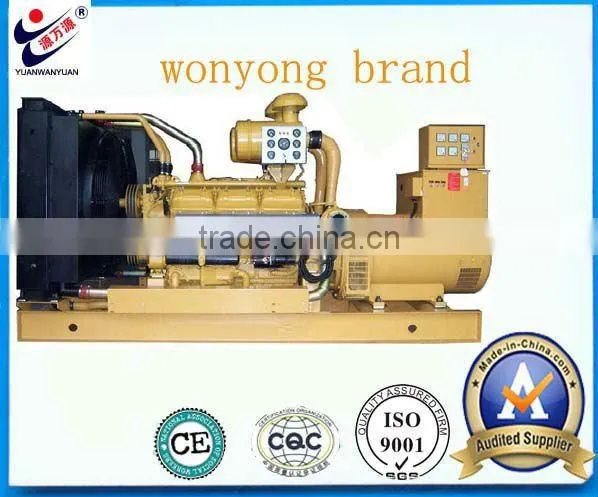

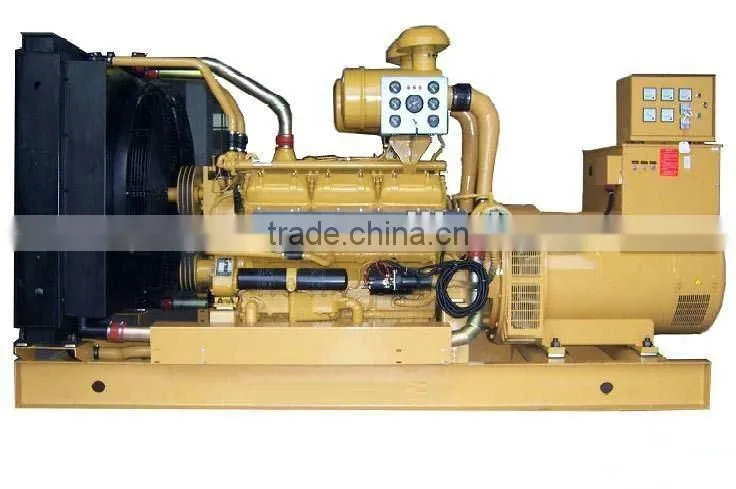

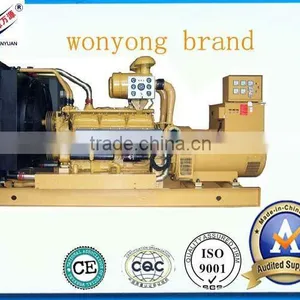

generator 300 kva Shangchai Diesel generator
- 1000 Piece / Pieces per Month
- Fuzhou
- T/T
Product Details
Place of Origin: | China | Brand Name: | WonYong | Model Number: | WY120GF |
Output Type: | AC Three Phase | Speed: | 1500/1800rpm | Frequency: | 50/60Hz |
Rated Power: | 100kw | Rated Voltage: | 400/230V | Rated Current: | 180 A |
Product Description
Specifications
Shangchai Diesel Generator1.China famous brand Yuchai engine!
2.Stamford alternator!
3.Genset Type; Open / silent
1.diesel generator adopt shangchai engine
2.diesel genset have 1 year warranty
3.One year warranty
4.100% load 100% cooper,
5.Stamford alternator!
6. Genset Type; Open / silent
7.With brushless alternator
8.Low fuel comsuption
9.Water cooling
10.Electric start
Shangchai Diesel generator
Genertor Features:
Rated Power: 100kw/125kva
Standard Voltage: 400/230kva (adjustable)
Frequency: 50/60Hz
Power Factor: 0.8(lagging)
Connecting type: 3 phase 4 wires
Insulation class: H/H
Protection type: IP21-23
EngineFeatures:
1. Electric start,water-cooled, four-stoke, direct injection.
2. Turbocharged& intercooler (air to air) 1500rpm/1800rpm
3. Compact designwith low noise, heavy load durable
4. Low exhaustemission. Environmental friendly
StandardAccessories:
Standard control panel, Exhaust silencer, Flexiblepipe, Battery and battery cables,
Battery rack, Operation manual and document
OptionalAccessories:
Intelligence control panel, Paralleled controlpanel, Automatic transfer switch (ATS) panel,
Automatic Remote Control Panel, Water heater,Oil-water separator, intelligent battery charger, soundproof canopy, weatherproofcanopy, Fuel tank, Trailer.
Technical data | |
Genset Model | 500GF |
Genset Output Power | 500KW |
Rated Voltage | 380/220V |
Frequency | 50Hz |
Power Factor(COS) | 0.8(lagging) |
Dimension (L×W×H) (mm) | 3700×1700×2200 |
Net weight (kg) | 4400 |
Diesel Engine | |
Brand | Dongfeng(Shangchai) |
Model | 12V135BZLD1 |
Engine Structure | V type 12 cylinder, 4 stroke, turbocharged |
Rotating Speed | 1500r/min |
Engine Cooling Method | Water-cooled |
Governor System | Electrical governor system |
Aspiration mode | Turbo intercooled |
Starting Method | 24V DC electric starting |
Displacement(L) | 25.8 |
Bore×Stroke(mm) | 135×160 |
Compression Ratio | 17.01 |
100% load fuel consumption (L/h) | 109 |
Alternator | |
Brand | Kaijieli(China-French joint venture Leory Somer technology) |
Model | TWG5D |
Excite Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type | 3 Phase and 4 Wires |
Steady Frequency Change | 05% |
No load voltage | ≥95%105% |
Steady voltage | ≤±1% |
Insulation degree | H degree |
Enclosure degree | IP21 |
The components of the genset | |
(1) Diesel engine; (2) Generator; (3) Control panel | |
The Accessories | |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . | |
Control panel | |
The Control panel is Ordinary integrative |
2.Factory internal Testing: All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Warranty policy:
Guarantee for one year or 1000 hours of the total running time. During the guarantee period, we will supply freely the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for gen set maintenance
