Factory Price Big Power Diesel Generator
Specifications
diesel generator1top qualty,factory price
2 generator diesel,big power genset
3single or 3phase
4.water colled,50hz/1500rpm
diesel generator
1top qualty,factory price
2 generator diesel,big power genset
3single or 3phase
4.water colled,50hz/1500rpm
disel generator specification
| Model | WY-CM50(S) | ||
| Cont.AC outpu(KW) | 40 | 45 | |
| Max.output(KW) | 45 | 50 | |
| Voltage(V) | 220/380 | ||
| Frequency(Hz) | 50 | 60 | |
| Power factor | 0.8 | ||
| GENERATOR | Model | WY224D | |
| Cont.AC output(KW) | 40 | 45 | |
| Max.output(KW) | 45 | 50 | |
| Excitation SyStem | Brushless excitation | ||
| InSulation Class | H | ||
| ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | ||
| ENGINE | Model | 4BTA3.9-G2 | |
| Number of cylinders | 4L | ||
| Bore×stroke(mm) | 102×120 | ||
| Compression Ratio | |||
| Displacement(L) | 3.9 | ||
| Specific fuel consumption (g/kW.h) |
≤209 | ||
| Rated speed(r/min) | 1500 | 1800 | |
| Cont.output(kW) | 50 | 55 | |
| Max.outout(kW) | 55 | 60 | |
| Starting system | Electric | ||
| Cooling method | Closed circle water-cooled | ||
| Starting battery | 12V/120AH | ||
| Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | ||
| ing time(h) | 12 | ||
| Overall dimensions(mm) | 2250*950*1150 | ||
| Package dimensions(mm) | 2350*1000*1220 | ||
| Net weight(kg) | 1120 | ||
| Dry weight(kg) | 1170 | ||
For 2012!! Genuine Cummins dieselgenerator set
Our company is an approved Cummins OEM partner. So we can provide genuine Cummins genset with very competitive price and comprehensive technical support.
Engine Features:
1. Cummins engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

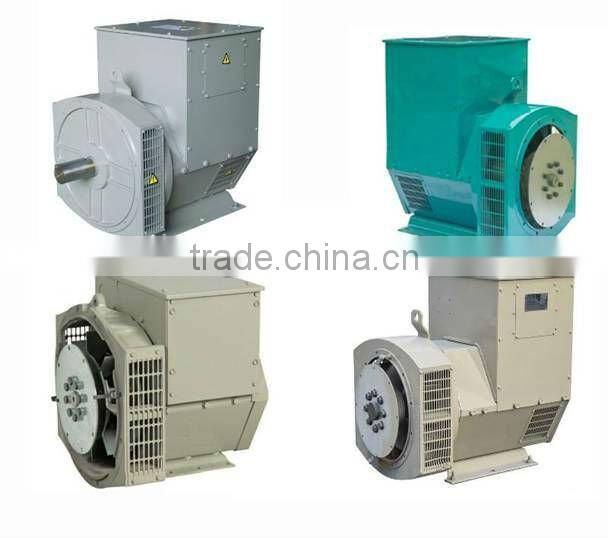

Alternator Features:
1. World famous brand AC alternator: Stamford,
2. Brushless, 4 poles, rotation magnet
3. IP23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for more than 10-hour working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel , LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
We have provided wearing parts for free, such as air filter, oil filter, fuel filter etc.
