water cooled with kva diesel container genset price
- 10000 Set / Sets per Month
- Fuzhou China
- T/T
Product Details
Place of Origin: | Fujian, China | Brand Name: | WONYONG | Model Number: | WY-CM38 |
Output Type: | AC Three Phase | Speed: | 1800RPM | Frequency: | 60HZ, 50/60hz |
Rated Power: | 30KW | Rated Voltage: | 220/380V,400V,440V | Rated Current: | other |
Product Description
Specifications

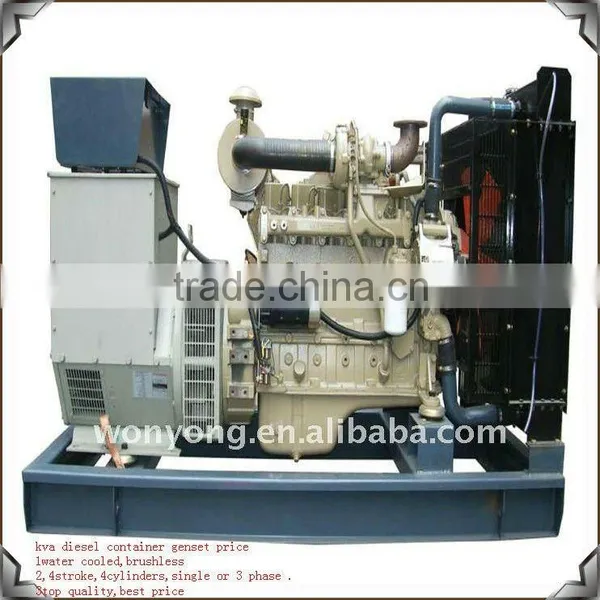

kva diesel container genset price1water cooled,brushless
2,4stroke,4cylinders,single or 3 phase .
3top quality,best price
kva diesel container genset price
1water cooled,brushless,3 phase
2,4stroke,4cylinders,cummins engine
3,50/60hz,380v diesel generator manufacturer price
4top quality,best price .Stamford alternator and Leroy somer alternator.
Range:3kw~800kw
diesel generator specification
Model | WY-CM38(S) | ||
Cont.AC outpu(KW) | 30 | 33 | |
Max.output(KW) | 33 | 36 | |
Voltage(V) | 220/380 | ||
Frequency(Hz) | 50 | 60 | |
Power factor | 0.8/1 | ||
GENERATOR | Model | WY184H | |
Cont.AC output(KW) | 30 | 33 | |
Max.output(KW) | 33 | 36 | |
Excitation SyStem | Brushless excitation | ||
InSulation Class | H | ||
ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | ||
ENGINE | Model | 4BT3.9-G2 | |
Number of cylinders | 4L | ||
Bore×stroke(mm) | 102×120 | ||
Compression Ratio | |||
Displacement(L) | 3.9 | ||
Specific fuel consumption (g/kW.h) | ≤209 | ||
Rated speed(r/min) | 1500 | 1800 | |
Cont.output(kW) | 36 | 40 | |
Max.outout(kW) | 40 | 44 | |
Starting system | Electric | ||
Cooling method | Closed circle water-cooled | ||
Starting battery | 12V/120AH | ||
Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | ||
ing time(h) | 12 | ||
Overall dimensions(mm) | 2250*950*1150 | ||
Package dimensions(mm) | 2350*1000*1220 | ||
Net weight(kg) | 1080 | ||
Dry weight(kg) | 1130 |

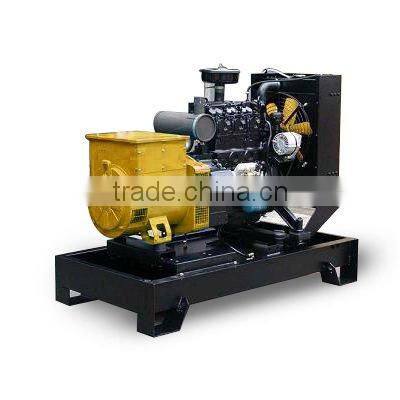

Open type cummins diesel generator(20kw~600kw)

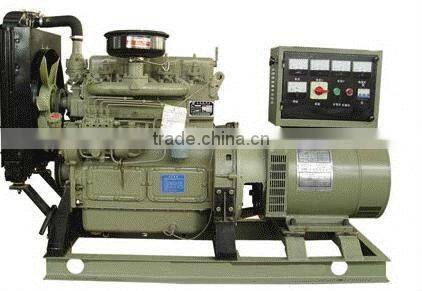

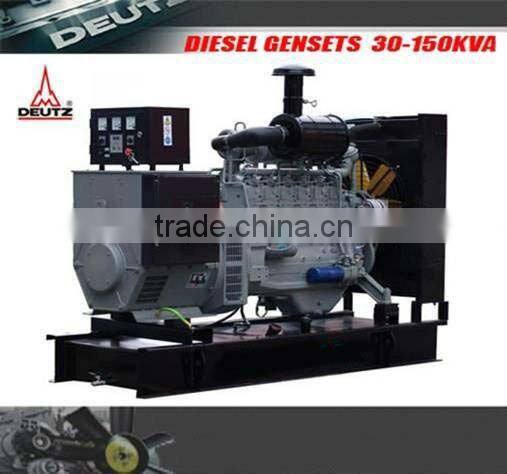

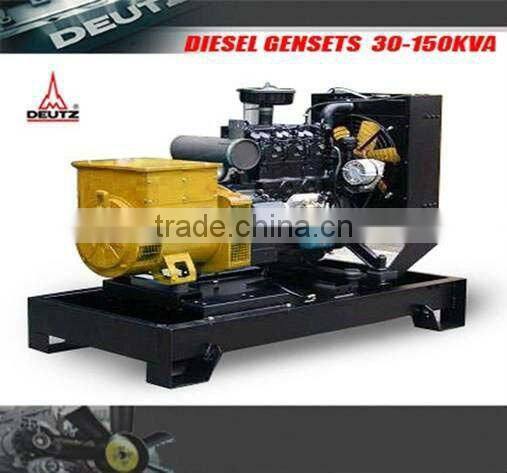

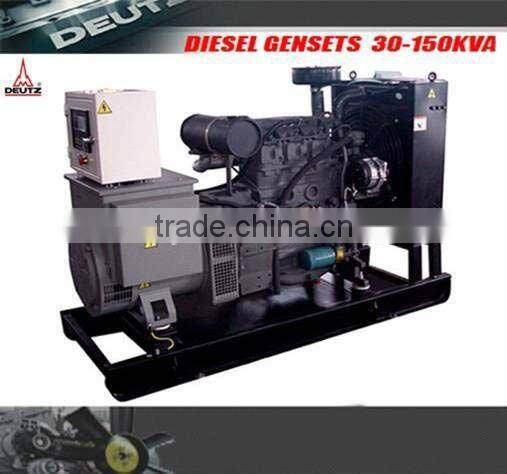

Deutz diesel generators(24kw~120kw) Weifang diesel generator(8kw~200kw)

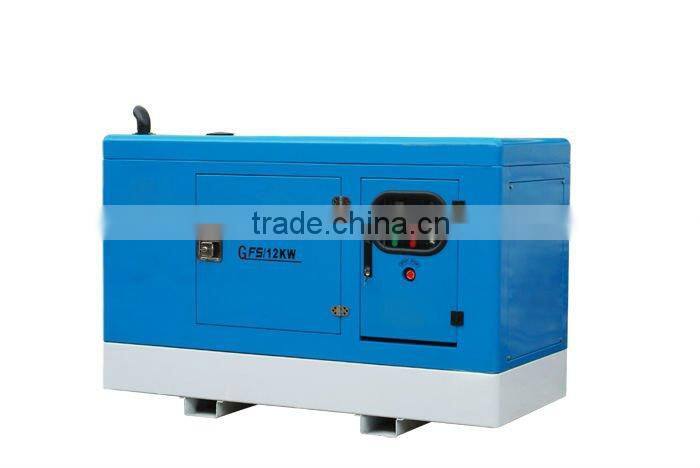

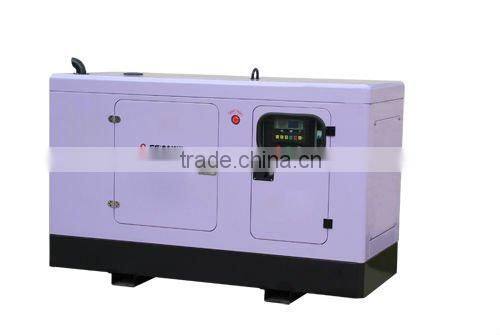

Silent diesel generator

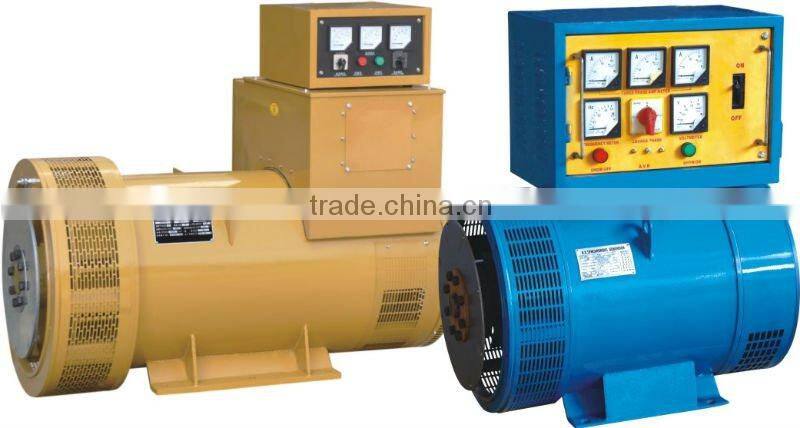

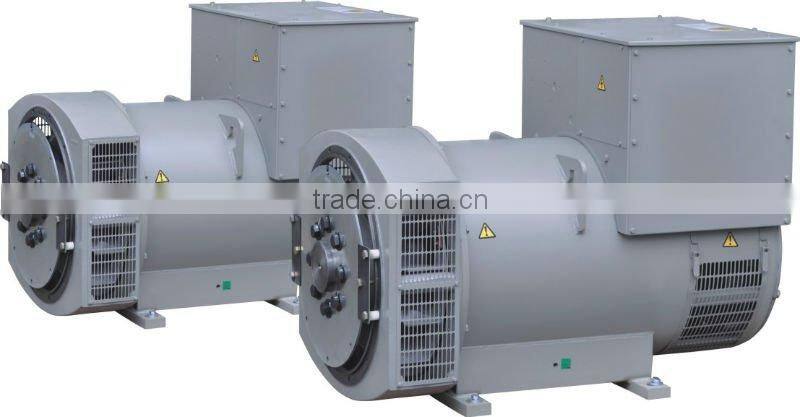

Generator for diesel generator set

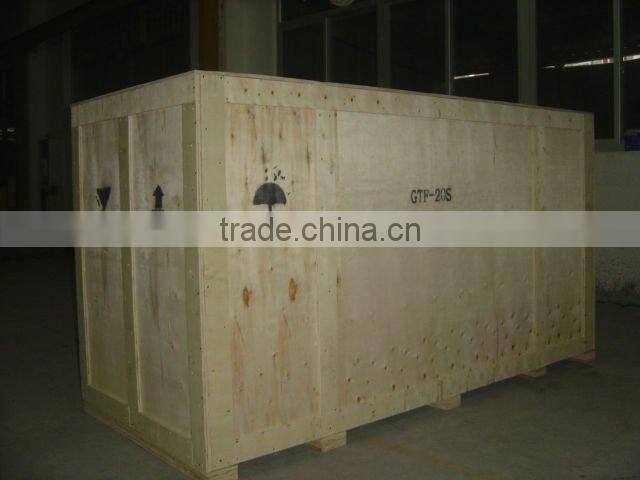

Packing of diesel generator
diesel generator
Spdiesel generatorecifications of diesel generator set as follows:
1) Output range: 30kW (37.5KVA) up to 1,000kW (1,250kVA)
2) Engine model: Cummins
3) Alternator model: Stamford
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets:
a) Engine: Cummins diesel engine
b) Engine type: water-cooled, in line four-stoke, Humit cylinder liner,
direct injection
c) Alternator: Marathon brushless alternator
18) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the water
is over temperature, the oil pulls down, over speed, over load and
over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: combined cooling water tank fitted to meet the
requirement of radiation at ambient temperature 40°C
22) Filter system: oil, fuel and air filter
23) Accessories: exhaust elbow, bellow, muffler
24) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
25) Delivery time 10-20days
26) Warranty 18 months
