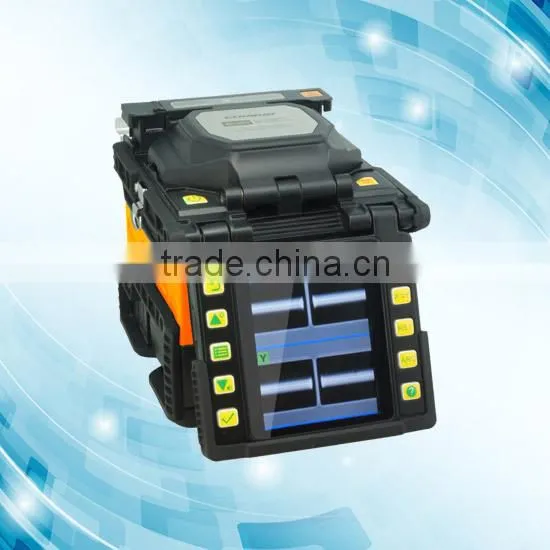

High Performance Single Fiber Arc Fusion Splicer COMWAY C6
Feature:
Splicing 6 sec., heating 25 sec.
Fast boot technology
More than 300 times splicing and heating
Resist dust, rain, wind, and shock
Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet
Size & Weight |
D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh |
Fiber alignment |
core alignment |
Fiber type |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
Splice mode |
Single fiber |
Fiber diameter |
Cladding diameter 80~150µm, coating 100~1000µm |
Cleave length |
250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm |
Splicing programs |
Max. 100 |
Splicing cycle time |
6 sec. SM-SM Fast program, 12 sec. AUTO program |
Heating programs |
Max. 30 |
Heating cycle time |
Adjustable, 25 sec. typical |
Splice protector |
10 ~ 60mm |
Splice image capture |
Max. 30 |
Splice data storage |
Max. 3000 |
Splice loss |
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
Return loss |
>>60dB |
Loss estination |
Provided |
Operation condition |
Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s |
Storage condition |
Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C) |
Tension |
1.96~2.25N |
Fiber view |
Two cameras observation, 4.1 inch color screen |
Fiber magnification |
300x fo X or Y single axis view, 180x for both X&Y dual axis view |
Port |
High speed USB, used for PC software connection and firmware upgrade |
Electrode life |
3500 arc discharges |
Power supply |
AC100-240V, 50/60Hz |
Battery module |
7800mAh High capacity battery, more than 300 times splicing and heating |

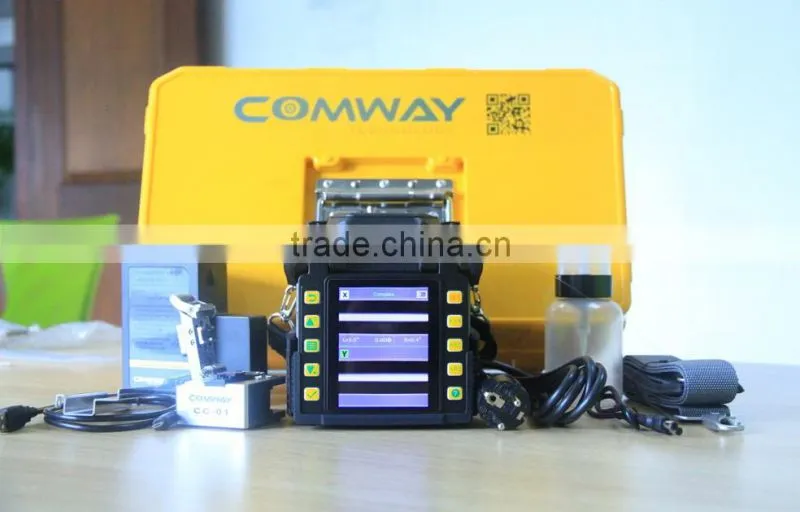

standard accessories:
1. C6 main body

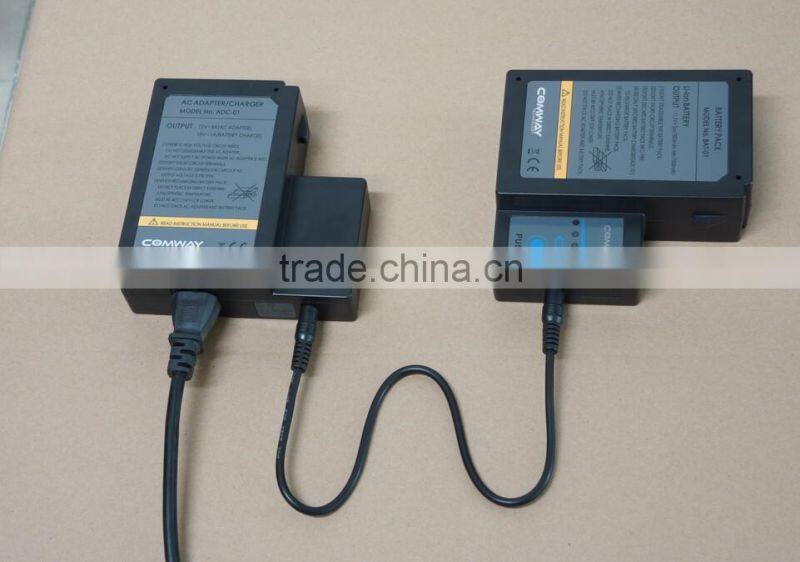

2. High capacity battery
3. AC adapter
4. Extra electrode
5. Cooling tray
6. AC adapter cable
7. DC adapter cable
8. USB cable
9. Hand strap
10. Shoulder strap

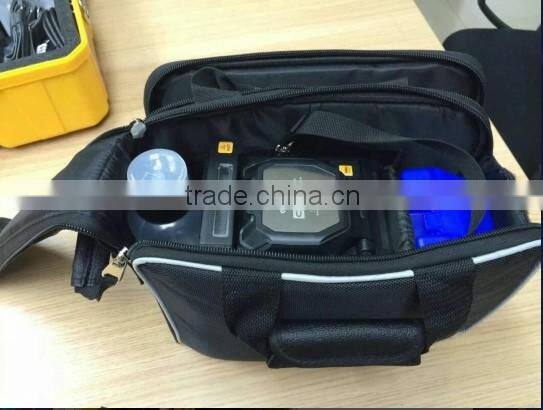

11. Carrying case
Maintenance Service: We have our own maintenance department.
> During the warranty period, we can repair or replace the defective parts for free.
> After the warranty time, we also repair the defective parts, but only charge part cost.
Shenzhen Hontek Co.,Ltd is a professional international sales company for telecom test equipments. We are the sole agency of COMWAY fusion splicer in global marekt and the agent of Fujikura, Sumitomo, EXFO, JDSU, Anritsu products. At the same time, we have our own factory producing the fiber tester and fiber accessories.
If you have any problems with it , you can contact Linda:
Skype:linda.hsv
Tel:+86-755-36934393
