Economical COMWAY Fusion Splicer Machine C8 as Good as Fujikura FSM-21S

Name: Economical COMWAY Fusion Splicer Machine C8 as Good as Fujikura FSM-21S
Brand: COMWAY
SKU: 108967291
Availability: InStock

Shenzhen Hontek Co., Ltd.

5Yrs

US$ 3,000 - 3,800 MOQ: 1 Unit

Key Specifications

Place of Origin:

United States

Brand Name:

COMWAY

Model Number:

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin United States

Brand Name COMWAY

Model Number C8

Economical COMWAY Fusion Splicer Machine C8 as good as Fujikura FSM-21S

Contact information

Mobile: 0086-13823128817

Tel:+86-755-36934393

Fax: 0086-755-33503470

Website: www..hk

Skype: kitty.hsv

Features:

Core-to-Core alignment system

*Splicing 6 sec., heating 25 sec.

*Fast boot technology

*More than 300 times splicing and heating Resist dust, rain, wind, and shock

*Fiber type identify, AUTO splicing mode

*Easy to change electrode and fiber holder

*High speed USB, maintenance via the Internet

Specifications:

Size & Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X&Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz

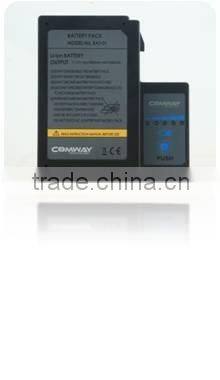

Battery module	7800mAh High capacity battery, more than 300 times splicing and heating
