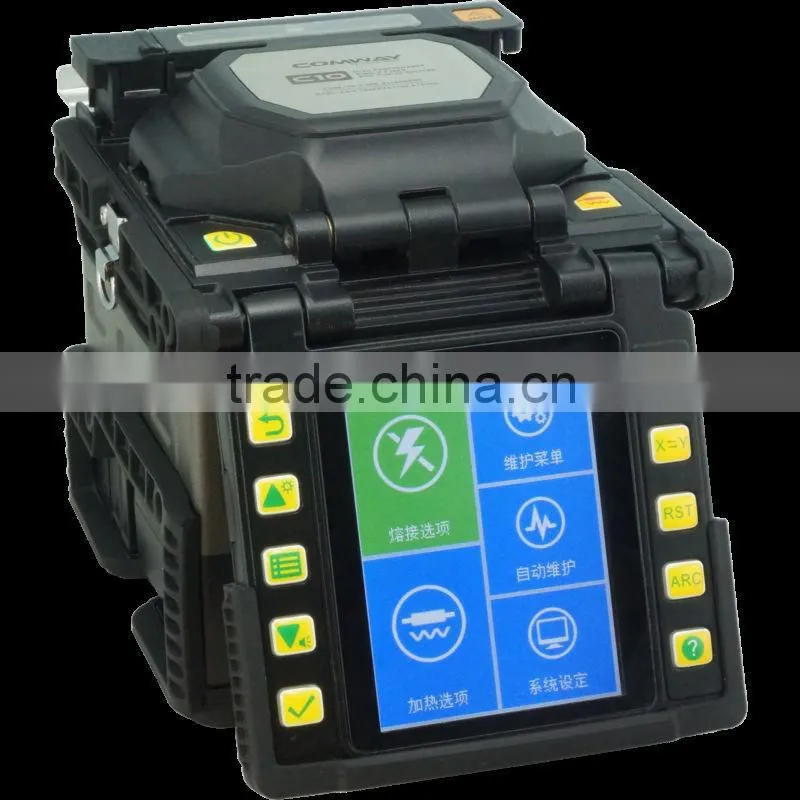

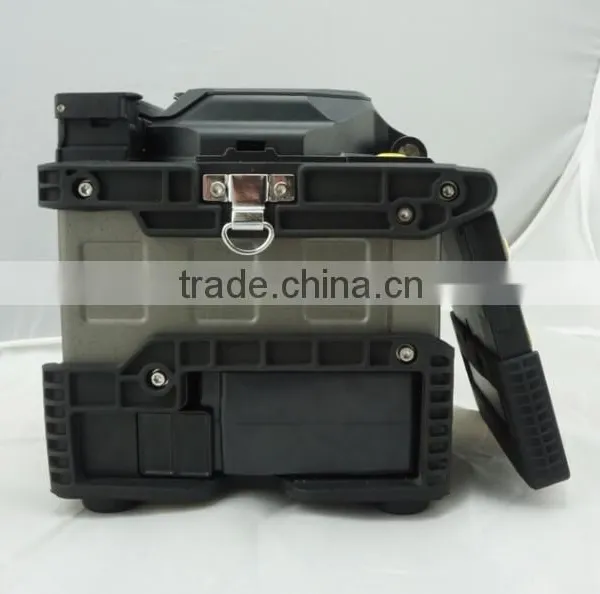

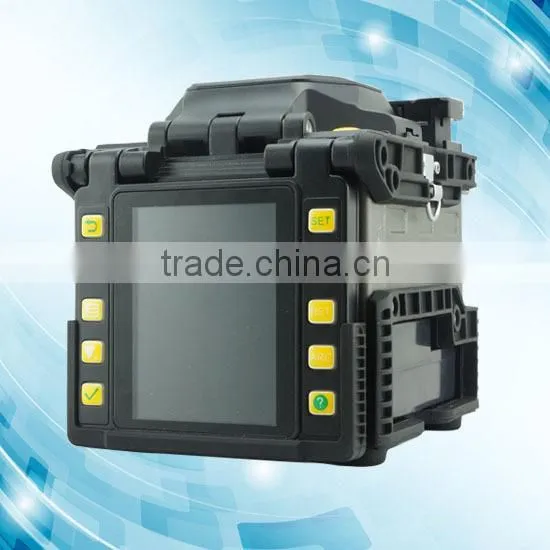

COMWAY Fusion Solicer Machine C10/ The Most Featured Product

Name: COMWAY Fusion Solicer Machine C10/ The Most Featured Product
Brand: COMWAY
SKU: 108967327
Availability: InStock

US$ 4,000 - 4,600 MOQ: 1 Set

Key Specifications

Place of Origin:

United States

Brand Name:

COMWAY

Model Number:

C10

Shenzhen Hontek Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin United States

Brand Name COMWAY

Model Number C10

COMWAY Fusion Solicer Machine C10/ The Most Featured Product

Contact information

Tel:0086-755-36934393

Fax: 0086-755-33503470

Mobile:0086-13823128817

Skype:kitty.hsv

Feature:

*Core-to-Core alignment system

*Splicing 6 sec., heating 25 sec.

*Fast boot technology

*More than 300 times splicing and heating Resist dust, rain, wind, and shock

*Fiber type identify, AUTO splicing mode

*Easy to change electrode and fiber holder

*High speed USB, maintenance via the Internet

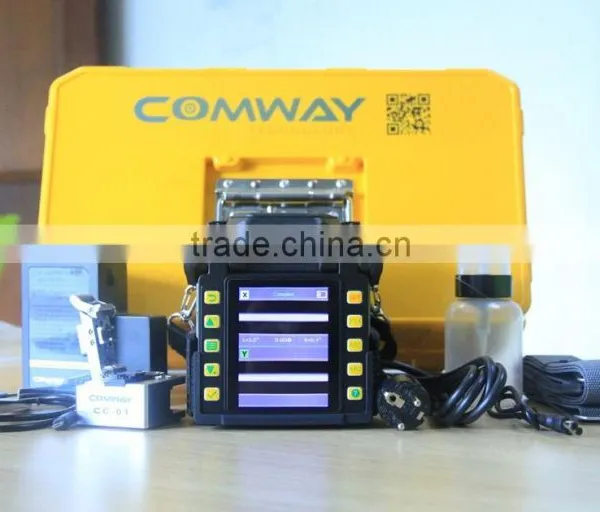

standard accessories:
1. C10 Splicer
2. High capacity battery
3. AC adapter
4. Extra electrode
5. Cooling tray
6. AC adapter cable

7. DC adapter cable
8. USB cable
9. Hand strap
10. Shoulder strap
11. Carrying case

Size & Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X&Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz
Battery module	7800mAh High capacity battery, more than 300 times splicing and heating
