Specifications
PVC sheet production line-SJZ-80/156 twin screw extruder
-T type sheet mould
-3 roller calendar machine
-CE/SGS approved
CE/SGS approved 1220mm PVC sheet production line was specially designed for the PVC sheet making with thickness from 0.5-3mm and with from 500-1800mm.
PVC sheet production line purchase the conical twin screw extruder which can feeded the PVC powder raw material directly.
Major parts of the PVC sheet production lines as following:
NO. |
Major Parts |
Technology Information |
1 |
Screw loading machine |
2.2KW driving motor, screw loading method, stainless steel loading screw and barrel |
2 |
PVC mixing unit |
SRL-Z300/600 model, 40/55/11KW driving motor, stainless steel barrel; self-friction heating; recycling water cooling |
3 |
Spring loading machine |
1.5KW driving motor,alloy steel spring loading, stainless steel loading barrel and storage tank |
4 |
SJSZ-80/156 conical twin screw extruder |
55KW driving motor,38CrMoAlA screw and barrel,hard surface gear box, cast aluminum heating device |
5 |

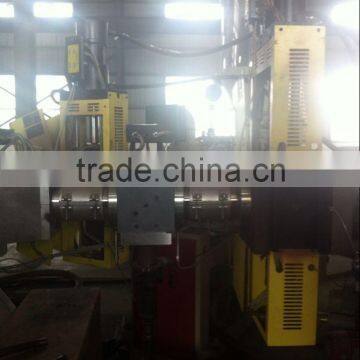

Sheet extruder die head |
1220mm mould house width,stainless steel heating bars, T type mould design |
6 |

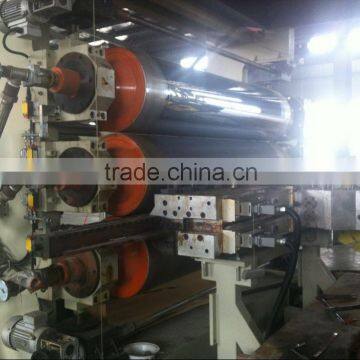

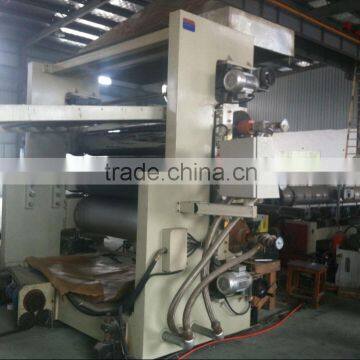

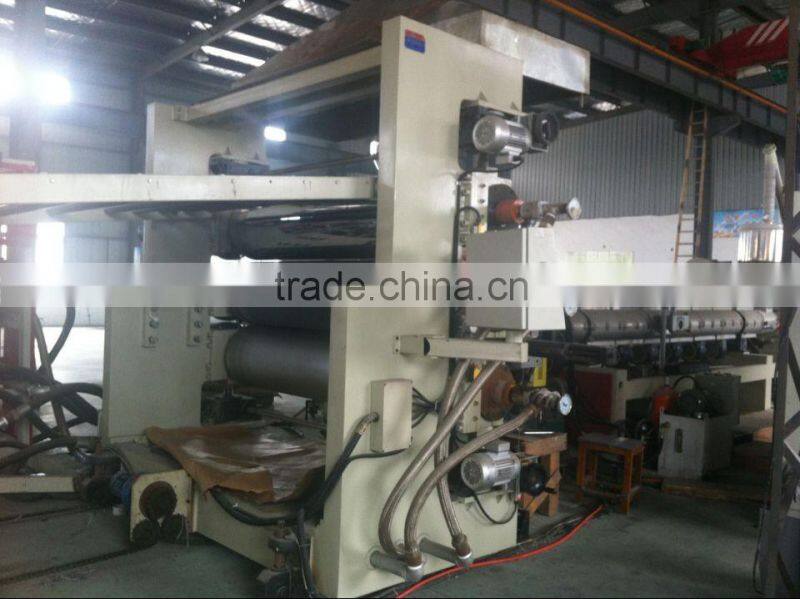

3 rollers calendar machine |
Vertical roller lining type,2.2KW,3pcs driving motors |
7 |
Cooling table and edge cutting device |
6meter length and fan cooling |
8 |
Sheet haul off machine |
2 rollers haul off model, rubber rollers |
9 |

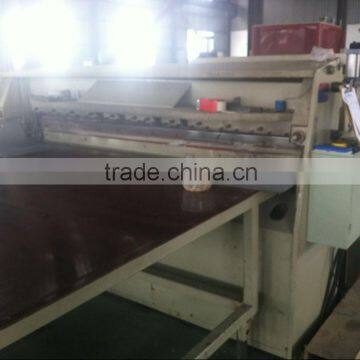

Sheet cutting machine |
Air cylinder control cutting processing |
10 |
Sheet winding machine |
Torque motor winding machine |
