Home > Products > plastic sheet production line > PVC plastic sheet extruding machine/production line

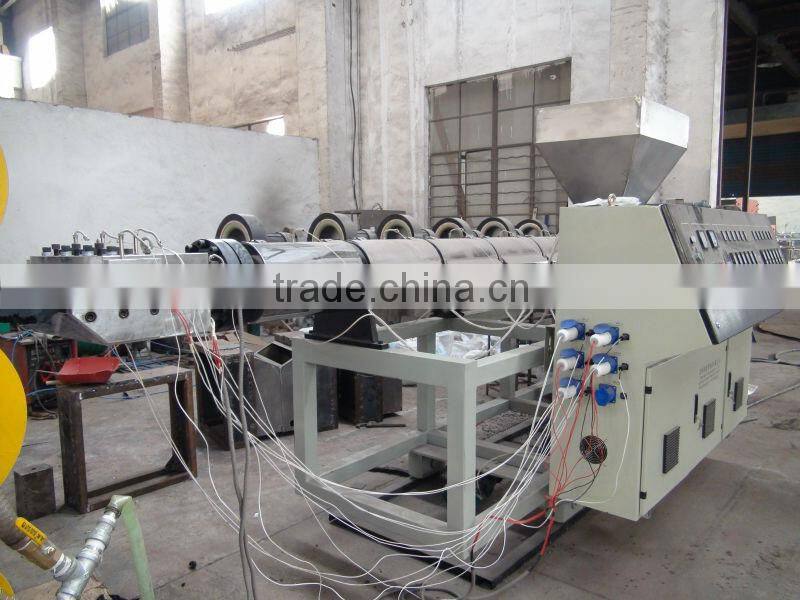

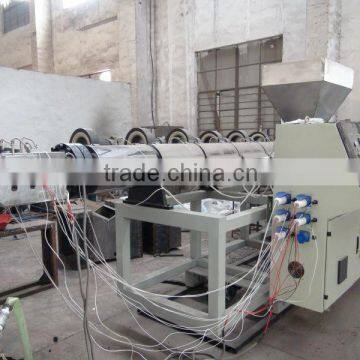

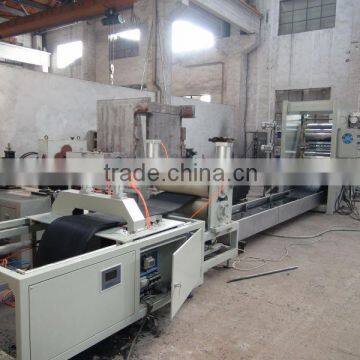

PVC plastic sheet extruding machine/production line
- 120 Set / Sets per Month
- SHANGHAI/NINGBO of Made in China PVC plastic sheet extruding machine
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BEIERMAN of Made in China PVC plastic sheet extruding machine | Model Number: | BMSE-1220 of Made in China PVC plastic sheet extruding machine |
Material: | PVC | Thickness: | 0.5-3mm | Size: | 0.5-3mm thickness and 1220mm width |
Product Description
PVC plastic sheet extruding machine/production line was specially designed for the PVC sheet making with thickness from 0.5-3mm and with from 500-1800mm.
PVC plastic sheet extruding machine/production line purchase the conical twin screw extruder which can feeded the PVC powder raw material directly.
Major parts of the PVC plastic sheet extruding machine/production line as following:
NO. | Major Parts | Technology Information |
1 | Screw loading machine | 2.2KW driving motor, screw loading method, stainless steel loading screw and barrel |
2 | PVC mixing unit | SRL-Z300/600 model, 40/55/11KW driving motor, stainless steel barrel; self-friction heating; recycling water cooling |
3 | Spring loading machine | 1.5KW driving motor,alloy steel spring loading, stainless steel loading barrel and storage tank |
4 | SJSZ-80/156 conical twin screw extruder | 55KW driving motor,38CrMoAlA screw and barrel,hard surface gear box, cast aluminum heating device |
5 | Sheet extruder die head | 1220mm mould house width,stainless steel heating bars, T type mould design |

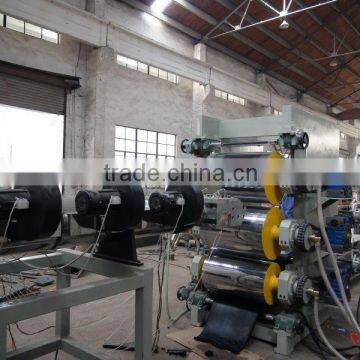

6 | 3 rollers calendar machine | Vertical roller lining type,2.2KW,3pcs driving motors |
7 | Cooling table and edge cutting device | 6meter length and fan cooling |
8 | Sheet haul off machine | 2 rollers haul off model, rubber rollers |
9 | Sheet cutting machine | Air cylinder control cutting processing |

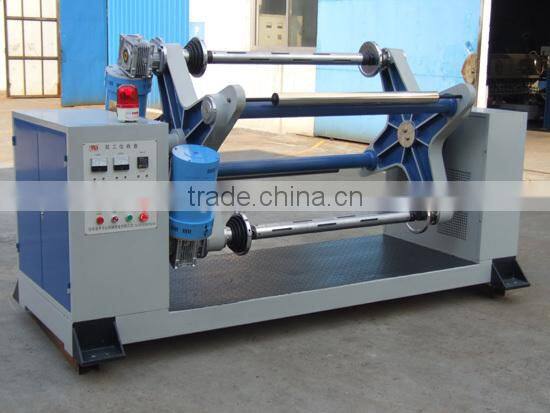

10 | Sheet winding machine | Torque motor winding machine |
- Packaging: poly-wooden case, no need fumigate; bubble films packaging.We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the macines running test, installiation, workers training and machines repairment.
- we have already get CE and ISO9001 cerficate for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abrod plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new prouced machines will be showed to the customers every year.
- we already established cooperations with the customers from Middle East, Southeast Asia and south America countries.
