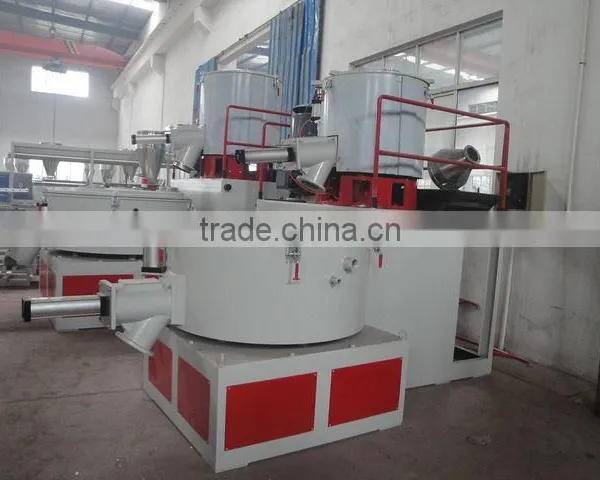

Help CenterSRL-Z Series Vertical Mixing Unit
Related Products
-
High Speed Plastic Powder SRL-Z500/1000 Blending MachineUS$ 5,500 - 5,600MOQ: 1 Set -
2015 Hot Selling PVC Mixer MachineUS$ 5,500 - 5,600MOQ: 1 Set
-
High Output PVC Blending EquipmentUS$ 5,500 - 5,600MOQ: 1 Set
-
Cheap Price PVC Mixing Machine UnitUS$ 14,000 - 15,000MOQ: 1 Set
-
2015 New Made SRL-W800/2000 PVC Mixing UnitUS$ 12,500 - 18,000MOQ: 1 Set

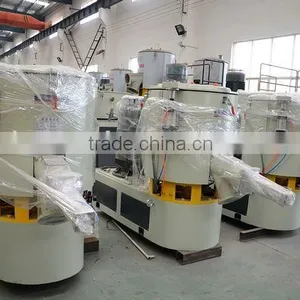

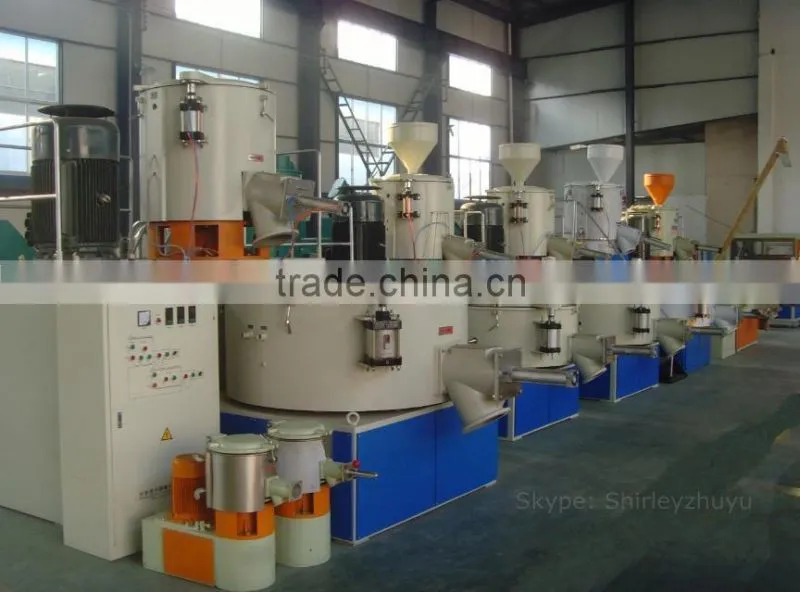

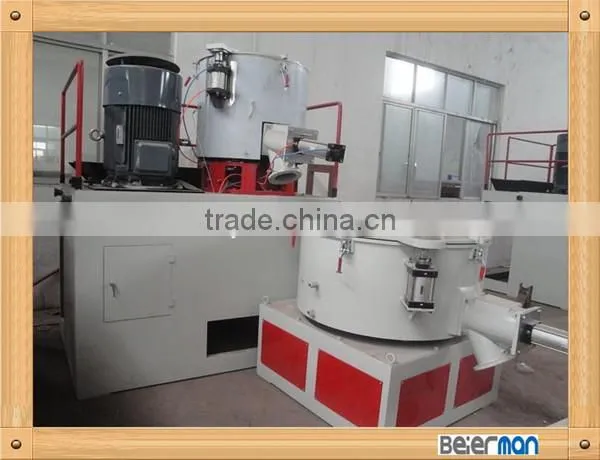

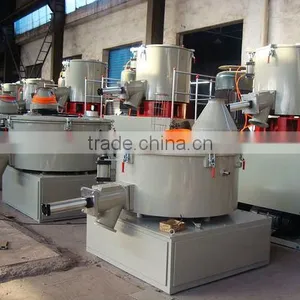

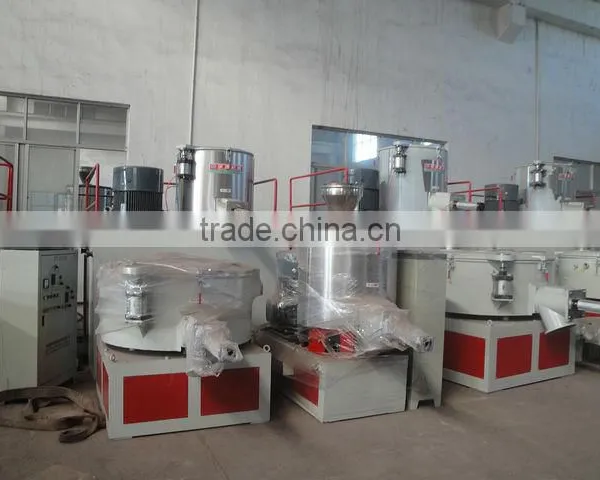

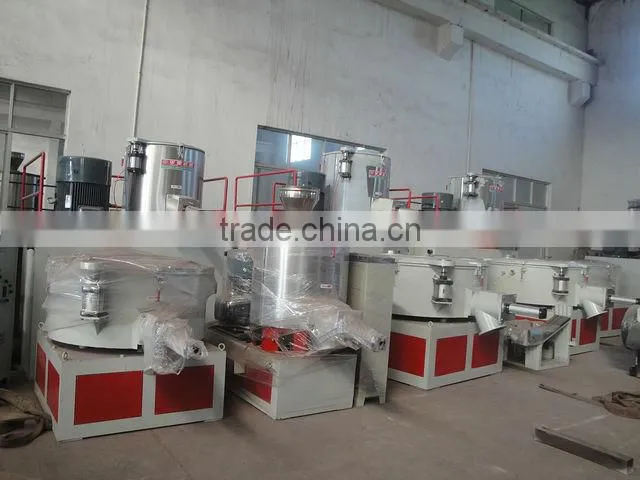

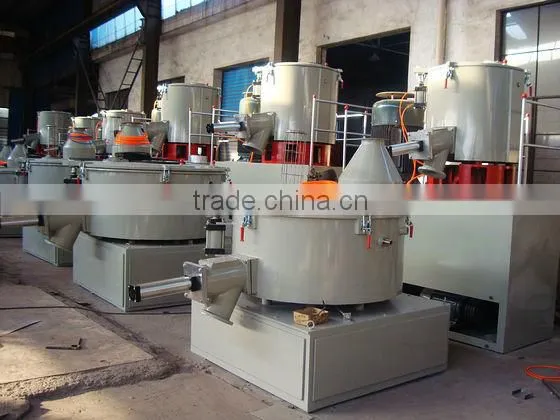

SRL-Z series mixer unit is applicable for mixing,colouring and drying of various resin such as polyethylene,polypropylene,polyvinyl chloride etc such as ABS ,polycarbonate etc before forming and processing as well as in the mixing of pohenolic resin.
The unit combines heat mixing and cool mixing craft together .The materials after heat mixing can be get into cool mixer for cooling automatically ,exhausts remaining gases and prevent agglomeration.
This machine has come up to the same kind of product level in the world .That is an ideal equipment for producing plates,pipes and special-shaped materials etc.
The technical paremeter of SRL-Z series mixer unit:
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test.
Model |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
SRL-Z500/1000 |
SRL-Z800/1600 |
Capacity |
200KG/HOUR |
350KG/HOUR |
500KG/HOUR |
1000KG/HOUR |
1500KG/HOUR |
Total Volume (L) |
100/200 |
200/500 |
300/600 |
500/1000 |
800/1600 |
Effective Volume(L) |
75/150 |
150/375 |
225/450 |
375/750 |
600/1200 |
Mixing Speed(rpm) |
650/1300/200 |
475/950/130 |
475/950/100 |
430/860/70 |
370/740/50 |
Heating/Cooling Method |
Electric/self-friction/recycling water |
||||
Mixing Time(minutes) |
8-12 |
8-12 |
8-12 |
8-15 |
8-15 |
DS Driving Motor(kw) |
14/22/7.5 |
30/42/7.5 |
40/55/11 |
47/67/15 |
80/110/22 |
Inverter Driving Motor(kw) |
22/7.5 |
45/7.5 |
55/11 |
75/15 |
110/22 |
Dimension(m) |
1.95X1.6X1.8 |
4.58X2.24X2.47 |
4.8X2.64X2.48 |
5.6X3X3.1 |
5.17X3.2X4.48 |
Weight(kg) |
2200 |
3400 |
3600 |
6500 |
9800 |

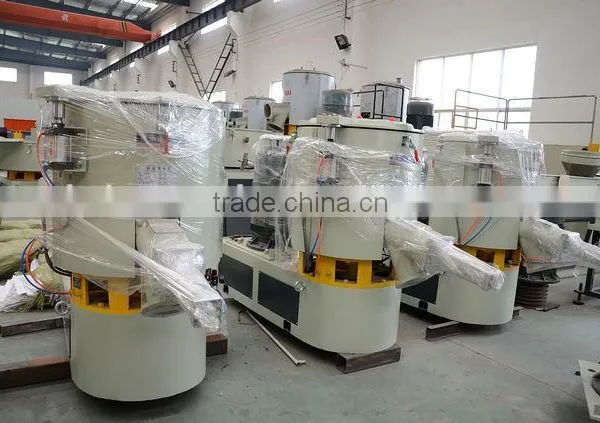

--standard export packing for SRL-Z series vertical mixing unit.poly-wooden cases or bubbles .wo suggest customers to purchase wooden cases ,if no ,we will fixed machines on containers walls with steel wires.
--by ship or train.
