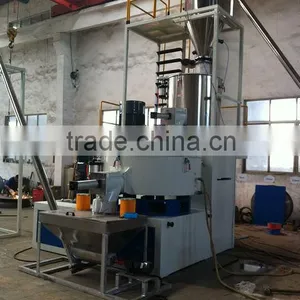

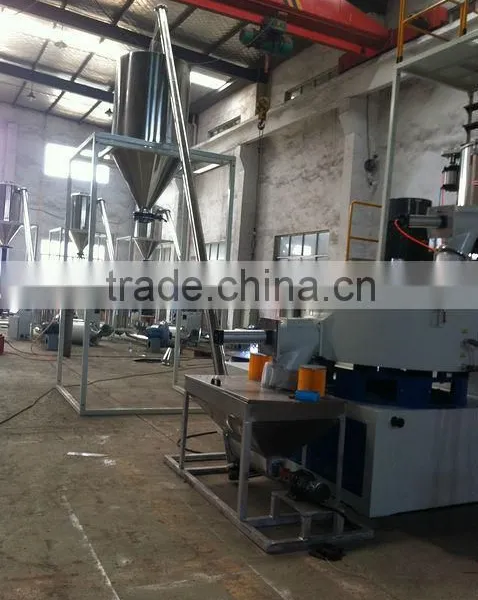

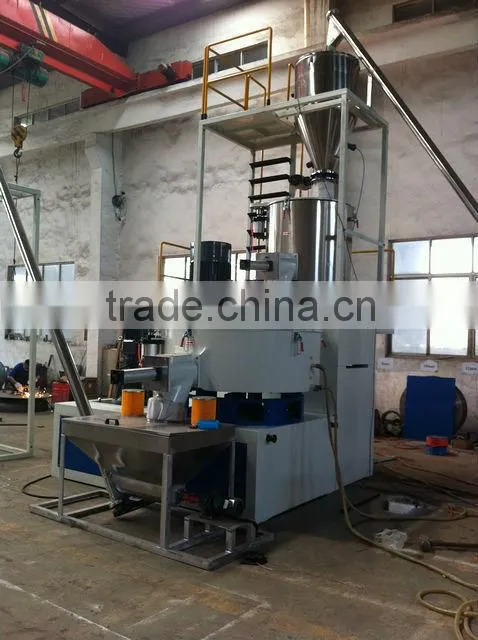

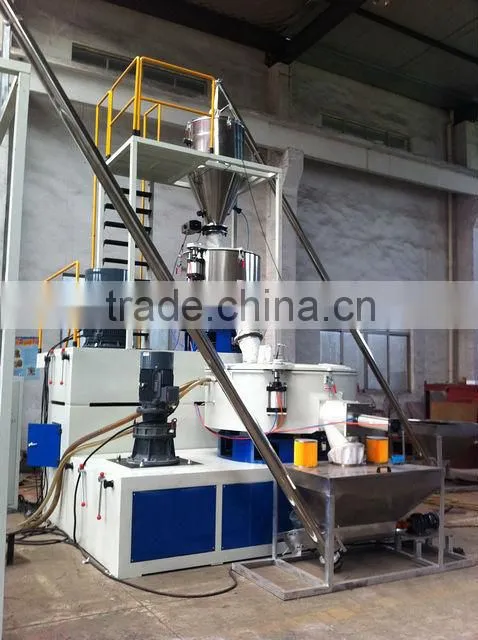

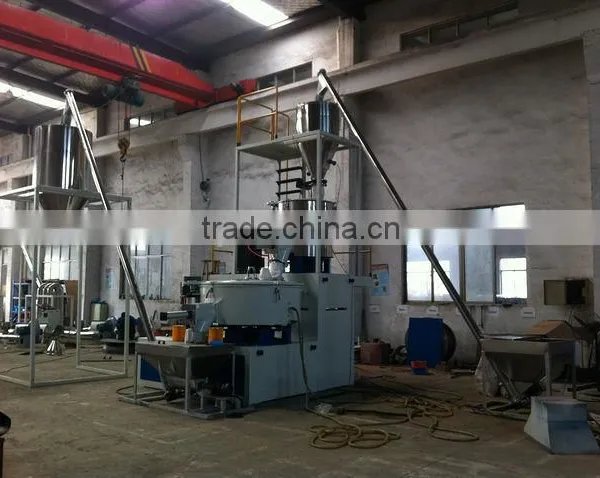

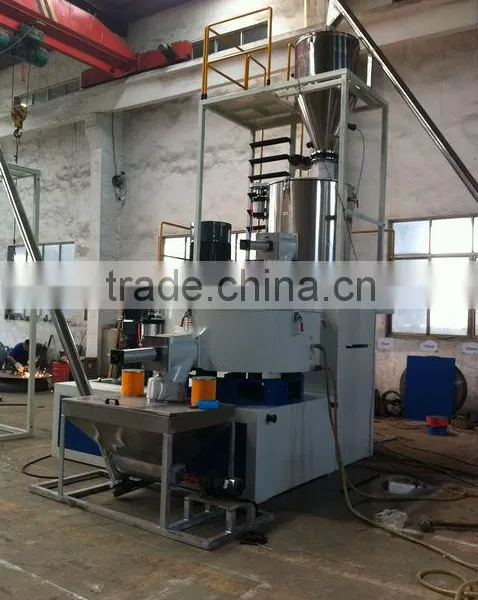

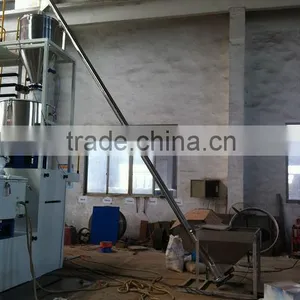

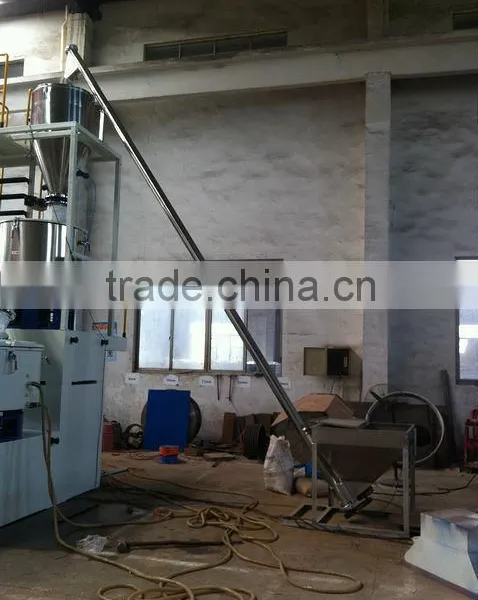

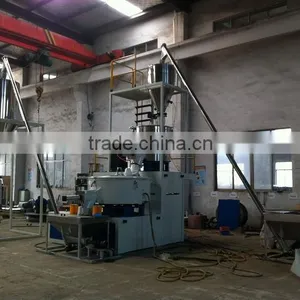

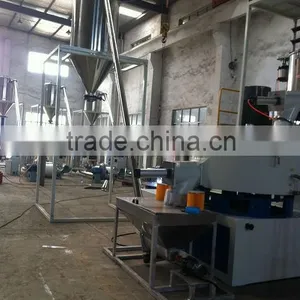

Cheap Price PVC mixing machine unit specially designed for the plastic high speed mixing,drying, coloring.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increatig: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test
Model |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
SRL-Z500/1000 |
SRL-W800/2000 |
Total Volume (L) |
100/200 |
200/500 |
300/600 |
500/1000 |
800/2000 |
Effective Volume(L) |
75/150 |
150/375 |
225/450 |
375/750 |
600/1500 |
Mixing Speed(rpm) |
650/1300/200 |
475/950/130 |
475/950/100 |
430/860/70 |
370/740/50 |
Heating/Cooling Method |
Electric/self-friction/recycling water |
||||
Mixing Time(minutes) |
8-12 |
8-12 |
8-12 |
8-15 |
8-15 |
DS Driving Motor(kw) |
14/22/7.5 |
30/42/7.5 |
40/55/11 |
47/67/15 |
80/110/22 |
Inveter Driving Motor(kw) |
22/7.5 |
45/7.5 |
55/11 |
75/15 |
110/30 |
Dimension(m) |
1.95X1.6X1.8 |
4.58X2.24X2.47 |
4.8X2.64X2.48 |
5.6X3X3.1 |
5.17X3.2X4.48 |
Weight(kg) |
2200 |
3400 |
3600 |
6500 |
9800 |
- Packaging: poly-wooden case for PVC mixing machine, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging for PVC mixing machine; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
- pre-sales services: we will take customers to visit our factory and check the PVC mixer machines quality from airport/bus station/train stations
- we will re-designed the PVC mixer machines according to customer's different raw material formualtions: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation disgram, usage manual
- we will offer the customers online intruduction to solve the machines problems/send engineers for customers machines installiation, running test, workers training, machines repairment services.
- we will offer customers spare parts at cost prices all life long of the machines
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the macines running test, installiation, workers training and machines repairment.
- we have already get CE and ISO9001 cerficate for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abrod plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new prouced machines will be showed to the customers every year.
- we already established cooperations with the customers from Middle East, Southeast Asia and south America countries.
- major parts supplier we cooperate with are all world famous brands: SIEMENS, Schneider, ABB, FUJI, OMRON, RKC, PARKER, SMC, AIRTAG, AUTONICS.
Q-1, Are you factory or trading company?
A: we are professional manufacturer of plastic machines with over 10 years experience.
Q-2, Where is your factory localed? Is it convenient for me to visit?
A: our factory is localed in ZHANGJIAGANG city, Jiangsu Province, China. It's 2 hours from SHANGHAI HONGQIAO airport by car;
It's 2.5 hours from SHANGHA PUDONG INTERNATIONAL AIRPORT.
Both HONGQIAO and PUDONG airports has direct bus to our city. Which is very convenient for customer come to us.
Q-3, Whether your machines do quality checking before delivery:
A: Our factory's standard processing step will ask us do running test to the machines before delivery.
Q-4, Whether your company will send engineer to help customer install, running the machines and training the workers?
A: we have 5 skilled and rich experience engineers ready for customer's requirement.
Q-5, What's your machines quality guarantee period and service after quality guarantee period
A: we will offer our machines one year quality guarantee since the machines arrive at customer's factory. During this period, if the customer's machines broke down cause the quality reason, we will send free spare parts or send engineers for repair for free.
If the machines out of quality guarantee period, we will offer spare parts and repair services at cost prices for life long time of machines.
Q-6, Payment Terms your company accepted?
A: generally we accept TT, L/C at sight.
TT 30% as deposit; TT 70% before delivery.
L/C at sight of total amount.
