Supply Polyurethane Spraying Machine RA-20 used for:1. Wall insulation;
2. Roof insulation;
3. Water tank insulation etc.
Supply Polyurethane Spraying Machine
RA-20 PU Spray Machine
Application:

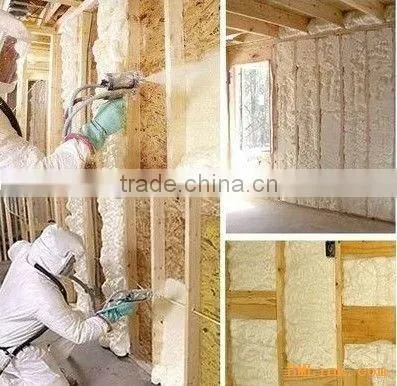

1. Building wall insulation;
2. Building roof waterproof and insulation;
3. Construction seam filling;
4. Pipeline insulation;
5. Solar water tank insulation;
6. Car roof insulation etc.
Specifications:
Model |
RA-20 polyurethane spray machine |
Standard configuration |
Mainframe 1 set |
Self-cleaning spray gun 1 set | |
Feeding pump 2 sets | |
Heating hose 15m | |
Feeding pump hose 2.5m | |
Gun hose 1.5m | |
Rings and Tools 1 set | |
Technical Data |
The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 15Mpa | |
Max fluid temperature 80ºC | |
Max output 8kg/min | |
Whole power 7000W | |
Voltage 2-ph 220V 50Hz/3-ph 380V 50Hz | |
Clean mode Self-clean by air | |
Max heating hose length 45m | |
Pneumatic source 0.8Mpa 1m³/min | |
Body size (L×W×H) 520×550×950mm | |
Net weight 110kg |
Mainframe
Feeding Pump
Spray Gun
Injection Gun
Working
