Supply Polyurethane Spraying Machine RA-30 used for:1. Wall insulation;
2. Roof insulation;
3. Water tank insulation etc.
Supply Polyurethane Spraying Machine

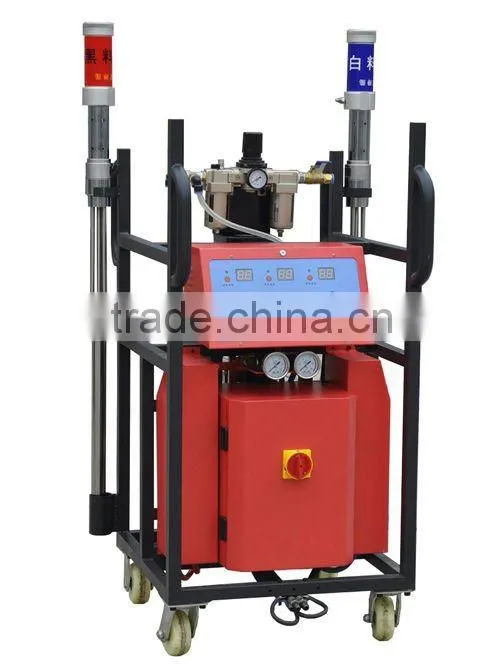

RA-30 Polyurethane Spray Machine
Application:
1. Building wall insulation;
2. Building roof waterproof and insulation;
3. Construction seam filling;
4. Pipeline insulation;
5. Solar water tank insulation;
6. Car roof insulation etc.
Specifications:
Model |
RA-30 polyurethane spray foam machine |
Standard configuration |
Mainframe 1 set |
Self-cleaning spray gun 1 set | |
Feeding pump 2 sets | |
Heating hose 15m | |
Feeding pump hose 2.5m | |
Gun hose 1.5m | |
Rings and Tools 1 set | |
Technical Data |
The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 20Mpa | |
Max fluid temperature 80ºC | |
Max output 9kg/min | |
Whole power 9000W | |
Voltage 2-ph 220V 50Hz/3-ph 380V 50Hz | |
Clean mode Self-clean by air | |
Max heating hose length 75m | |
Pneumatic source 0.8Mpa 1m³/min | |
Body size (L×W×H) 600×600×1180mm | |
Net weight 140kg |
Mainframe
Feeding Pump
Spray Foam Gun
Working
