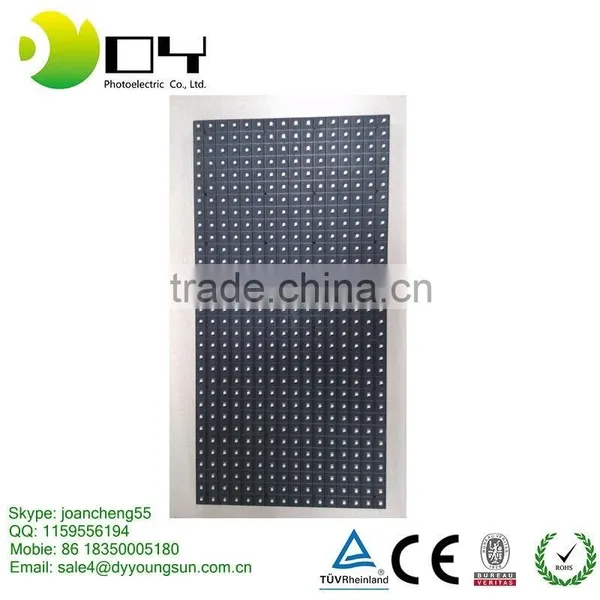

high quality advertising full color smd p10 led display board
LEDs introduce | ||||
LED type |
type |
brightness |
wavelenth |
Best view angel |
DIP346 |
550-600mcd |
620-625nm |
|
|
DIP346 |
1600-1800mcd |
520-525nm |
||
DIP346 |
350-400mcd |
465-475nm |
||
Module introduction | |||
Module type |
1/4 sca |
Pix distance |
10mm |
size(W×H) |
160mm×160mm |
dots(dot/m2) |
10000dot/m2 |
resolutiion |
16dots×16dots |
Module pix dots |
256dot/pcs |

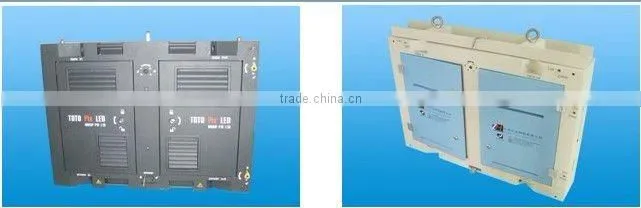

cabinet | |||
| |||
size(W×H×H) |
1280mm×960mm/960*960mm |
No. of cabinet |
1pcs(4paranel 6ine) |
resolution |
128dot(W)×96dot(H)/96*96dots |
Pixel dots of the cabinet |
12288 |
weight(kg/pcs) |
50-60kg/pcs |
Square area(m2) |
1.23m2 |
Display | |
Max power consumption |
900W/m2 |
Advarage power consumption |
450W/m2 |
Color temperature |
6500/9300 |
IP GRADE |
IP65 |
System working humidity |
10%—90% RH |
System workign temperature |
-20°C~+60°C |
Best viewing angel |
10m-60m |
Color |
16777216 |
Grey grade |
4096grade |
Brightness control |
256grade |
brightness |
8000nit |
frequency |
60HZ |
Display frame frequency |
>300HZ |
Power |
220V/50HZ |
MTBF |
≥10000HS |
Life span(50%brightness) |
≥100000hs |
Whole display flatness |
<5% |
Malfunction dot rate |
<0.0003 |
Floor leakage current |
<2mA |

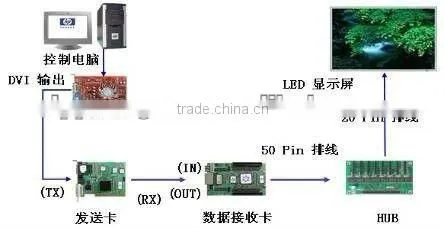

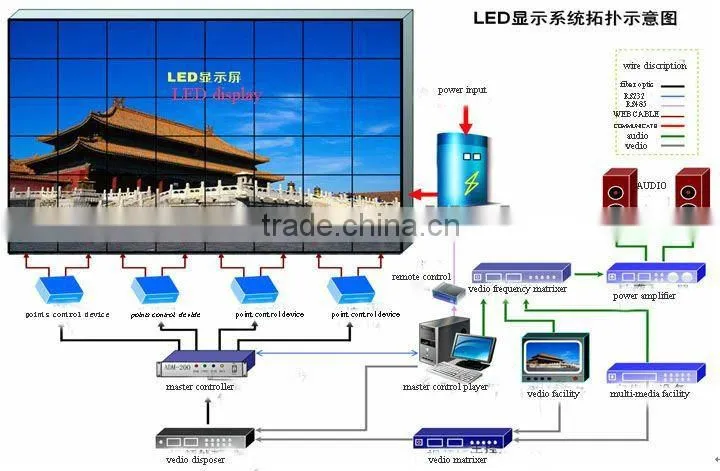

Control method |
same time with computer |
Signal contact mode |
CAT5 |
Opearte platform |
WINDOWS(98,2000,XP,Vista) |
Signal form |
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
Control distance |
International cable transit 100meter, multimode ptical fiber transit 400meter,single mode transit distance is 10 kilometer |
plan |
Dongguan Youngsun Photoelectric Limited Company, a subsidiary corporation of Ping Jia Enterprise, specializing in manufacturing LED and LED lighting products, and a high-tech enterprise which set R & D, design and production as one. It has a plant area of 15,000 square meters,more than 400 employees.
We develop in strict accordance with ISO9001 quality assurance system.We have the stringent inspection and quality control system in every steps and the process of the materials from warehousing to the process design and to the product manufacturing.
With LED lighting skilled production and R & D capability, our products of all kinds of high-power LED, SMD LED, and in-line LED products have some good advantages, such as energy saving, environmental protection, good performance, high reliability and low lumens decay and long lifespan. Furthermore, we won the trust of customers due to our timely delivery so that we strive to become the domestic and the world's best manufacturer of LED light and contribute to innovation of human lighting.
At present, main foreign markets including Asia, Europe, America and Africa etc. We look forward to work together with more business partners and sincerely welcome domestic and foreign businessmen to negotiate business and design our blueprints for the corporate development and for our win-win benefit and common interest.
Our advantageous products include:DIP LED sources,LED STRIP,LED MINI MODULE,LED SIPLAY MODULE,LED STRING LIGHTS...
