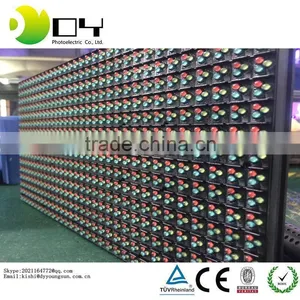

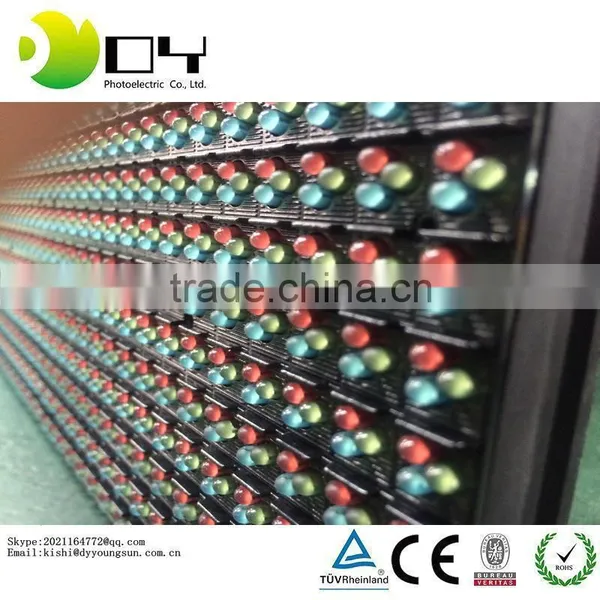

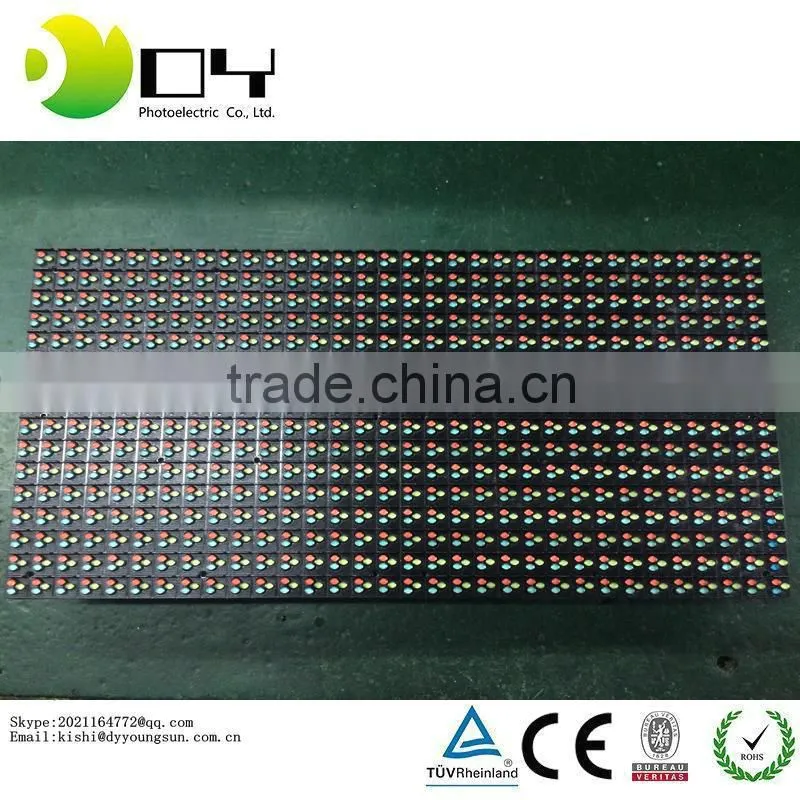

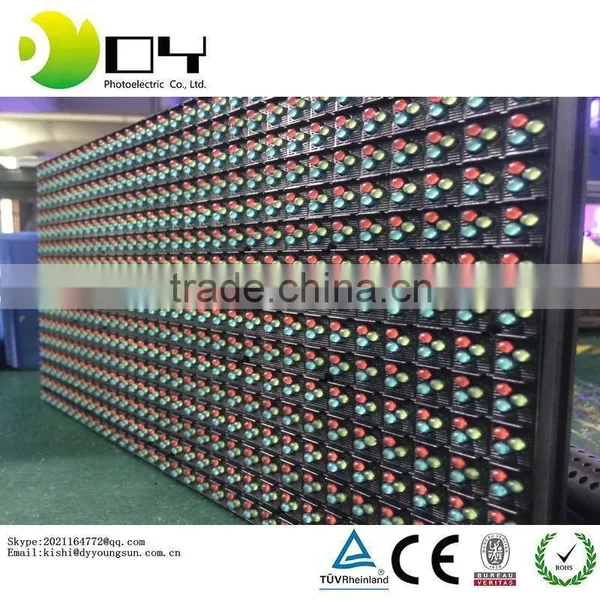

RGB Full Color Programmable LED Scrolling Sign Message Board Display Module 320160mm 3216 Pixels P10 DIP LED Module

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

opld20151015013

Chip Material:

InGaN

Emitting Color:

Tri-Color(Red-Blue-Green)

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number opld20151015013

Chip Material InGaN

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity ≥6500cd/ m2

Luminous Flux(lm) 54lm

Optical Attenuation(%) 0.1%

Power Other

Power Dissipation 0.5%

Color Rendering Index(Ra) 85

Color Temperature 3000-6500K

Operating Temperature(℃) -20, 50

Storage Temperature(℃) -35, 85

Place of Origin Guangdong, China

Brand Name DY

Certification CE

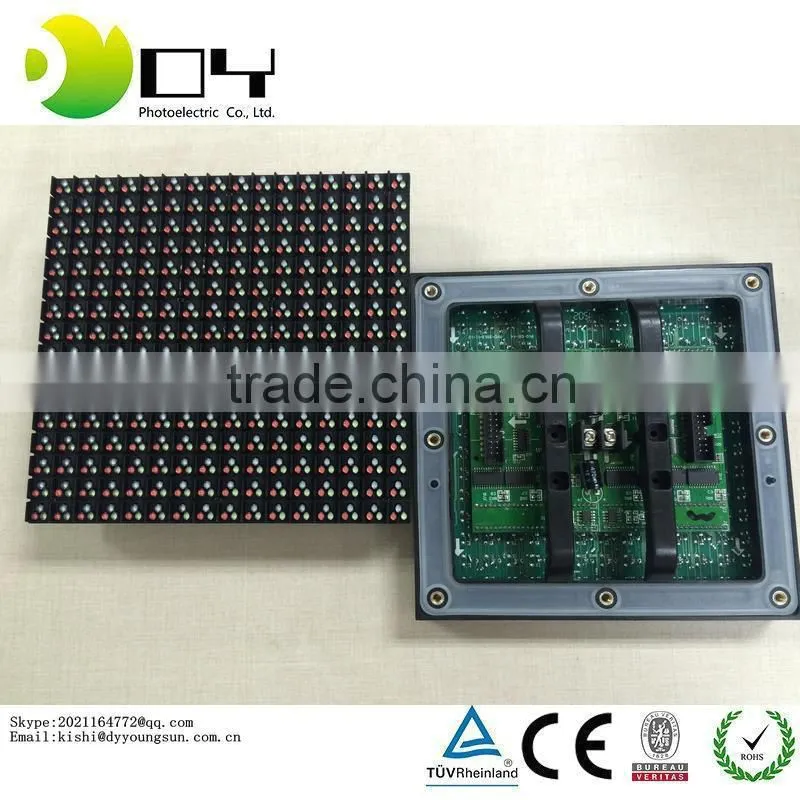

outdoor ph10 led display module P10 Waterproof Outdoor Full Color LED Display Module

The technical parameter of P10 Display Module
Number	Item	P10 RGB Module
1	Pixel pitch	10mm

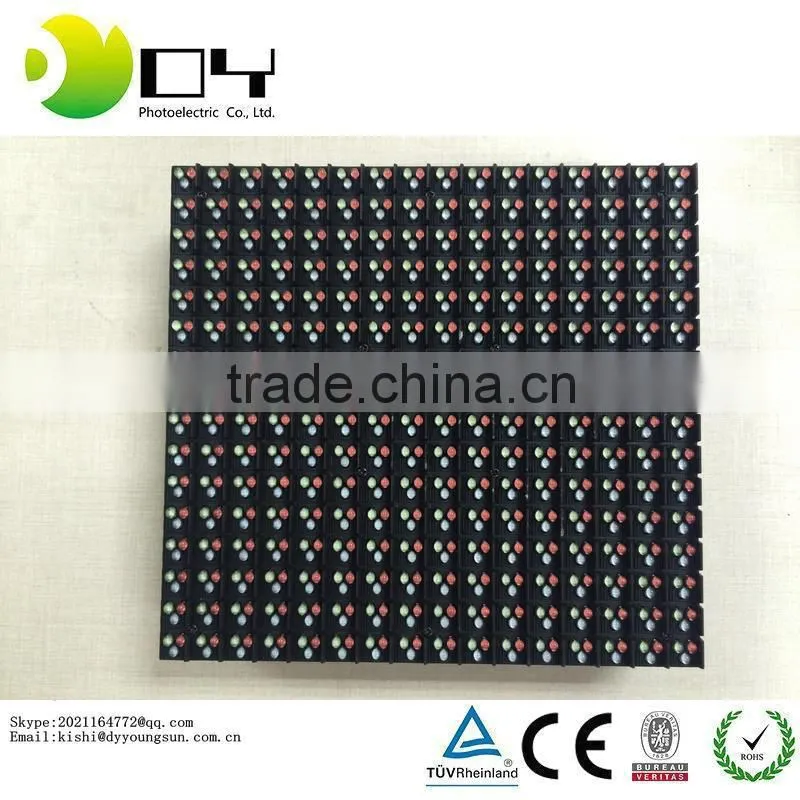

2	Size of module(wxh)	320mm X160 mm,160*160mm
3	Resolution of module (wxh)	32 dots X16 dots
4	Density of pixel	10000dots/m²
5	Pixel configuration	1R or 1G or 1B or 1W
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	1R1G1B
10	Best viewing distance	10-100m
11	Horizontal viewing angle	120°
12	power consumption	400w/sqm
13	Brightness	>2500cd /sqm
14	Gray scale	16bits per color
15	Color temperature(℃)	3000-6500
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP65
22	Working temperature (℃)	-20~+80
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)
