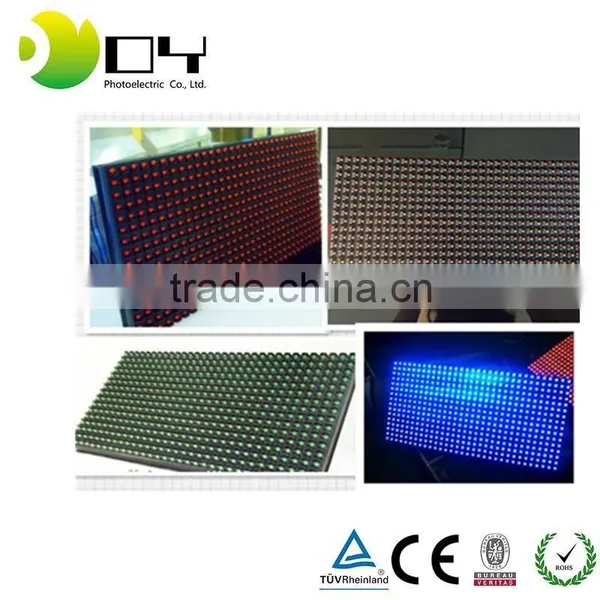

P10 Outdoor Led Screen Red Color Led Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

p10

Model Number:

P10r module, p10 led display red color

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name p10

Model Number P10r module, p10 led display red color

Usage Other, Outdoor, Outdoor

Tube Chip Color Other, Red, Red

Display Function Graphics

Pixels 10mm

Screen Dimension 320mm*160mm

Specification

P10 led module

1) Outdoor advertising red led display board
2) CE&ROHS certificate
3) stability
4) low power consume

Culture

Technical Parameters

1. Module

Description	Technical parameter
Unit module	Module size	320*160mm
	Pixel pitch	10mm
	Pixel density	10000dots/m2
	Pixel configuration	1R
	Led specification	546
	Pixel resolution	W:32dots*H:16dots
Cabinet	Dimension	960mm960mm150mm
	Quantities of module	18pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	10-300m
	Temperature	Storage: -35°C~+85°C
	Temperature	Working: -35°C~+85°C
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	100-150W
	Max. Power consumption	≤200-300W/sqm
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4 scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥600Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 2500cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--65%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥10,000hours
	Life span	≥100,000hours
	Flatness	Tolerance of interpixel ≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software	LED media player
