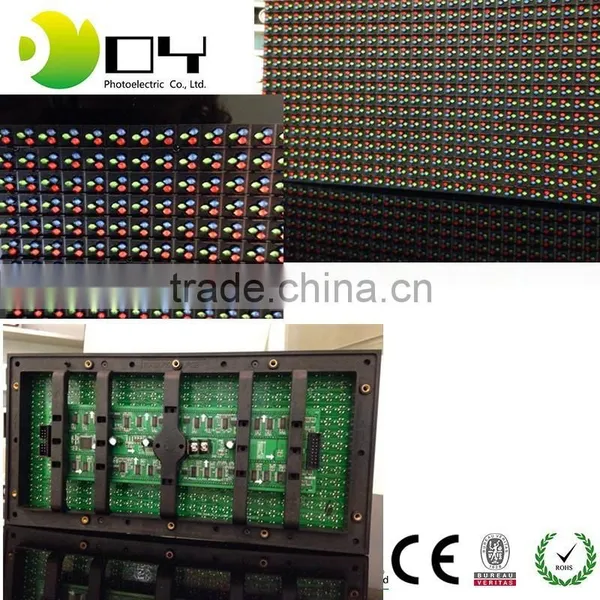

Name: P10 Rgb Led Module Epistar
Brand: P10 Outdoor Full Color
SKU: 108793345
Availability: InStock

ALL CATEGORIES

P10 Rgb Led Module Epistar

Send Inquiry to This Supplier

Mrs. Angel Li

foreign trade manage

Dongguan Deying Photoelectric Co., Ltd.

Dongguan, Guangdong, China

Message

0/5000

* Email

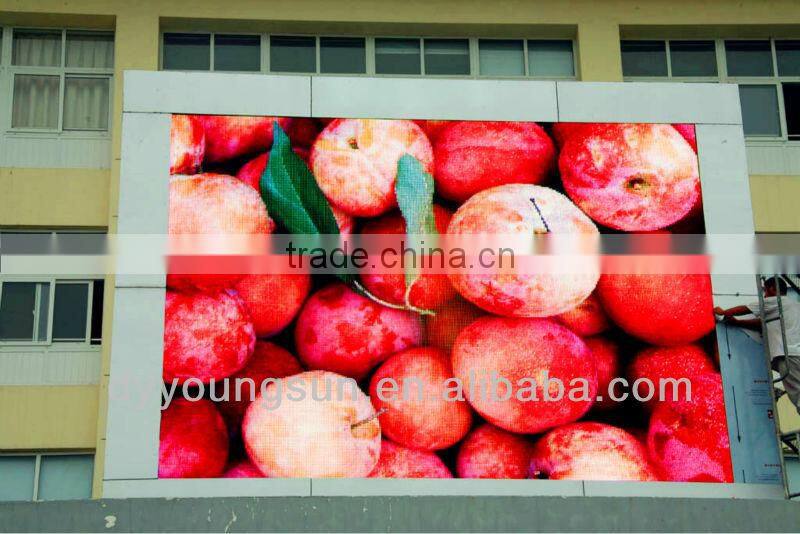

Outdoor P10 DIP Full Color LED Display Screen
No.	Item	P10
1	Pixel pitch	10mm
2	Module size	320mm*160mm
3	Module resolution(dots)	32*16
4	Pixel configuration	1R1G1B
5	Pixel density	10000dots/m²
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	16777216
10	Best viewing distance	≥10m
11	Horizontal view angle	120°
12	Maximum power consumption	<1500W/m²
13	Brightness	≥8000cd/m²
14	Gray scale	16 bits per color
15	Color temperature	6500k
16	Control method	Synchronization&Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP 67
22	Working temperature	-20°C~80°C
23	MTBF	>10,000 hours
24	Life span	>100,000 hours

P10 Rgb Led Module Epistar

Product Details
