High Flow Capacity Liquid Filter For Water Treatment
The core advantage of YNT filtering system is :having the total range of liquids filtration design selections, our high precision cartridges , stainless steel screen elements ,wedge screen element ,membrane cartridges etc. can match with various filter housings, and have widely application on petrochemical, oil refining, new energy, steel, chemical, pharmaceutical, food, water treatment industry.
For liquid filtration, we have large flow capacity filter, bag filter, cartridge filter, self cleaning filter and so on. They are fitted with strong V-slot elements, various filter precision bag and cartridge for your reference to meet your special requirements.
1. INOCO-TM-D Series Large Flow Capacity Filter (Suitable For Max Flow Capacity)
INOCO-TM-D series large flow capacity filter has two directions, vertical and horizontal type.
It is special for large flow capacity, compact size and easily operate equipment and replace spare parts. One filter can fit with one high precision cartridge or more, the max quantity can reach 300pcs.single cartridge capacity can have 50T/H. While during our technical data confirmation, it can have different flow capacity by selecting different material, element diameter, length and quantity.
Advantage
. Absolute filtration precision, tapered micro porous filter material
. Ensure low pressure drop, max assimilative capacity and shell diameter
. Uniform flow distribution
. Liquid filters from inside to outside, greatly improve filter efficiency.
. Absolute filter precision:0.5microns
. Without inner support, easily deal with
. Max inlet and outlet pressure drop:0.35MPA
Technical Parameter
Shell material: CS, 304, 316L, C276, 2205, coating
Element material: PP, PTFE, stainless steel and so on.
Shell gasket: NBR (standard), VITON, PTFE, spiral wound gasket in option
Filter precision: 0.003micron~100 microns
Design temperature:80℃, above 80 degree, it need special design
Design pressure: 1.0mpa, above 1.0mpa, it needs special design
Flow capacity: 0.1~5000m3/H
Cartridge quantity:1-30pcs
Cartridge length: 500,1000, 1600mm
Cartridge diameter: 150mm
2. INOCO-TM-D2 series large flow capacity filter ( suitable for high solid content)
TM-D2 series large flow capacity precision filter use high quality cartridge. With years of filtering experience, this design with compact system design helps max flow capacity. Compared with traditional design, D series large flow capacity has more advantages.
D series filter has unique design, single cartridge’s flow capacity can reach 50T/H. so less filter cartridge can meet your flow capacity requirement.
Filter shell turns smaller size with less cartridge. Based on certain flow capacity, compared with traditional filter basket, large flow capacity filter only needs half basket. So it is with less cost and save factory precision space with compact system design.
Large flow capacity filter with professional design to meet system flow capacity requirements in compact space. Supplied baskets are all standard design, we also can accept customized basket to meet your special use. All filter’s design, manufacturing both meet GB150 standard.
Cartridge Technical Parameter
60” flow capacity can reach 50T/H
40” flow capacity can reach 80T/H, high capacity of sludge quantity:10kgs
Filter precision: 1.2.5.10.15.25.40 and 70 microns
Filter efficiency: 99.9%
Material passed FDA certification
Technical Parameter
Shell material: CS, 304,316L, C276, 2205, coating
Cartridge: PP
Shell gasket: NBR, VITON, PTFE packed VITON, spiral wound gasket in option
Filter precision: 0.5~100 mirons
Design temperature: 80℃( standard )
Design pressure: 1.0mpa ( standard )
Flow capacity: 0.1~5000m3/h
Cartridge quantity: 1-30pcs
Cartridge length: 500,1000,1600mm
Cartridge diameter:160

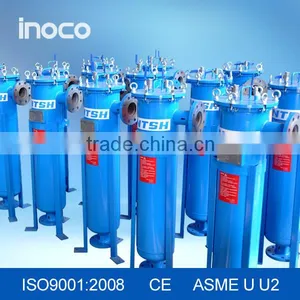

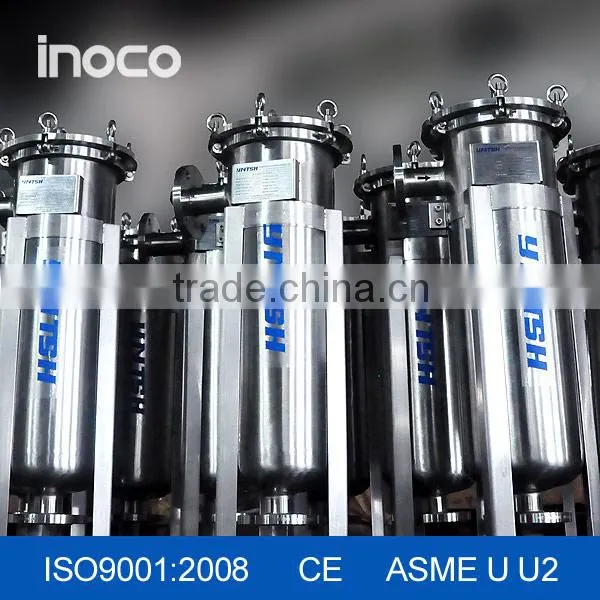

3. INOCO-SGD High Precision Bag Liquid Filter
INOCO-SGD Bag filter is widely applied in worldwide industries and forming standard manufacture.
bag filter can be customer made to meet different application requirement according to INOCO
standard single filter or multiple bags filter.INOCO multiple bag filter is equipped with 1-24 bags for
your options, filter housing is designed , manufactured ,checked and accepted by GB150 or ASME,U,U2 code.INOCO offers you the most optimized solution with diversification and advanced filter design, precision filter bags.
The bag filter materials for housing can be made of high-quality stainless
steel SS304(06Cr19Ni10), SS316L (022Cr17Ni12Mo2), carbon steel (16MnR), Hastelloy(C276), the filter can refer to steel made pressure vessel GB150 for design, manufacturing and inspection.
Type: bag type filter
Opening method: F- fast open, W- wheel shaft
Filter bag:01,02,03,04, 01 and 02 bag use as usual.
Bag size |
Max flow capacity(m3/h) |
Filter area (m2) |
Diameter(mm) |
Length (mm) |
1# |
20.4 |
0.24 |
177.8 (7 inches) |
431.8 (17 inches) |
2# |
40.9 |
0.46 |
177.8 (7 inches) |
812.8 (32 inches) |
3# |
5.7 |
0.07 |
101.6 (4 inches) |
203.2 (8 inches) |
4# |
11.4 |
0.14 |
101.6 (4 inches) |
355.6 (14 inches) |
Typical Application:
Bag filters have widely used in car industry, painting, coating, petroleum, chemical engineer, water treatment, electronic semiconductor, papermaking, lubricating oil and metalworking fluid, food, drinks, pharmacy, environmental protection.

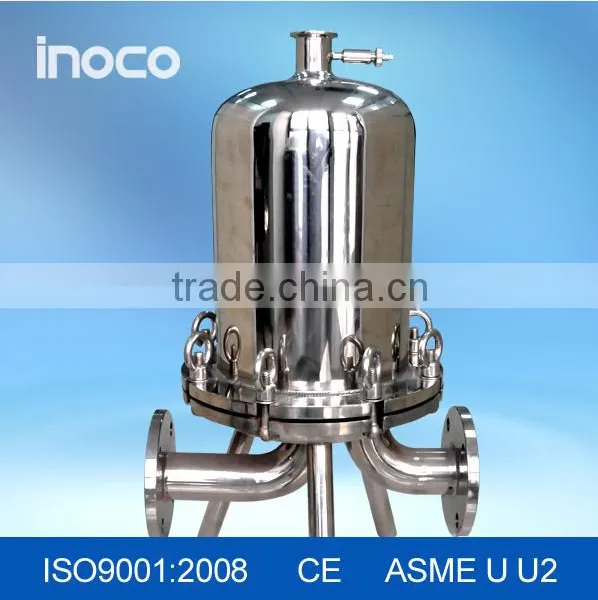

4. High Precision Cartridge Liquid Filter
Filter uses reasonable fluid mechanics technique, in accordance with GB150-1998 < steel pressure vessel during water treatment equipment design, manufacture ,inspection and acceptance . it can equipped with 118 pcs elements and the max flow capacity can reach 500m3/h. filter precision also can reach 0.003 microns.
|
Filter material
Technical Data Sheet
Performance parameters
| |||||||||||||||||||||||||||||||||
Kind Tips:
Safe operating temperature and pressure will depend on elements and sealing ring if greater than the pressure and temperature, please noted in particular.
Acceptance criteria: design and manufacture of steel pressure vessel, water treatment filter criteria, "U ASME".
Surface treatment: mechanical polishing, electrolytic polishing, sand blasting, painting

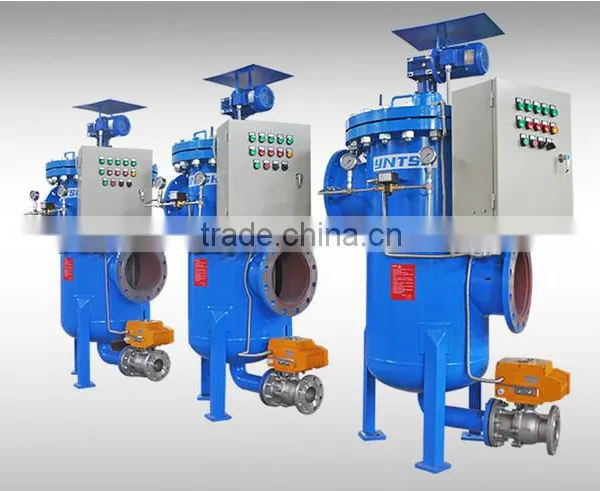

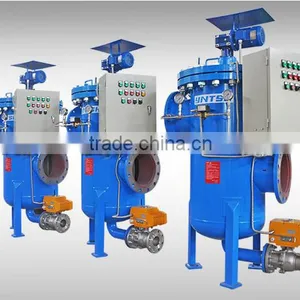

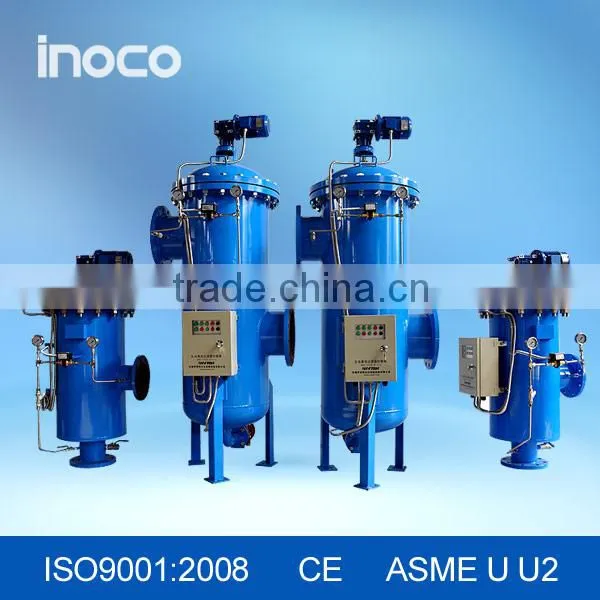

5. Automatic Brush Self Cleaning Filter
Brush filter has two type, automatic self cleaning filter and manual brush filter, it mainly used for removal for suspended solids in the water to decrease suspended matter concentration, particles. XF series self-cleaning filter is suitable for filters with 1’’-36’’ pipeline to choose from, with advantages of continuously fluid flow, safety operation simple maintenance, XF series self –cleaning filter is widely used in all industry area.
Filter Performance Advantage
Contiously water supply, the cleaning process needs little water, which is nearly 1% of filter water yield, the flushing time is 15-60 seconds, the whole system uninterrupted water supply.
High filtration precision: max value can reach 20 microns, all kinds of precision you can choose. Large filtering area: the effective filtering area of standard mesh is 7~40 times of the inlet area.
