High Efficient Stainless Steel Cartridge Water Filter for Water Purification Systems Quality Choice

High efficient Stainless steel cartridge water filter for water purification systems

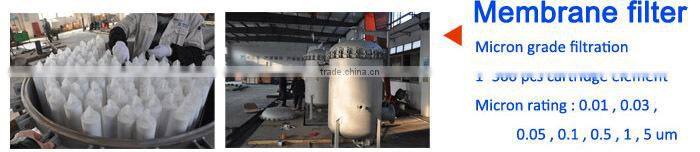

1. INOCO-MSO-S Series Multi Cartridge Filter

INOCO adopts advanced technology and manufacturing device to supply all kinds of high efficient and high quality micro porous membrane filtration system with years of manufacturing membrane and research and develop experience and technology accumulation.

Cartridge filter housing adopt reasonable fluid mechanics technology, it can design, manufacture and accept by ASME”U”, GB150-1998<steel pressure vessels>,<HG532-91 chemical pipeline filter>, water treatment filter standard.

Technical Parameter

1.Filter Size

Connection size:DN15~DN500 or NPT, standard thread

Drain: DN15~DN50

Vent: DN15

Surface treatment: polish, electric polish, sand blasting, epoxy painting

Note: safe operation temperature and pressure depend on element and seals

Above pressure and temperature, please point out.

2. Filter Material

Shell material: 20#, 304, 316L, 2205, alloy, lining PP, four fluorine coating

Element material: melt-blown, fiber glass, PP,PTFE, stainless steel and so on.

Shell gasket: NBR (standard), EPDM, VITON, PTFE in option

Element gasket: EPDM, VITON

Filter precision:0.003micron~100 microns

Design temperature:80℃, above 80 degree, it need special design

Design pressure: 1.0mpa, above 1.0mpa, it needs special design

Flow capacity: 0.1~500m3/H, it depends on filter precision and element

Cartridge quantity:3-300pcs

Cartridge length: 250,500,750,1000mm.

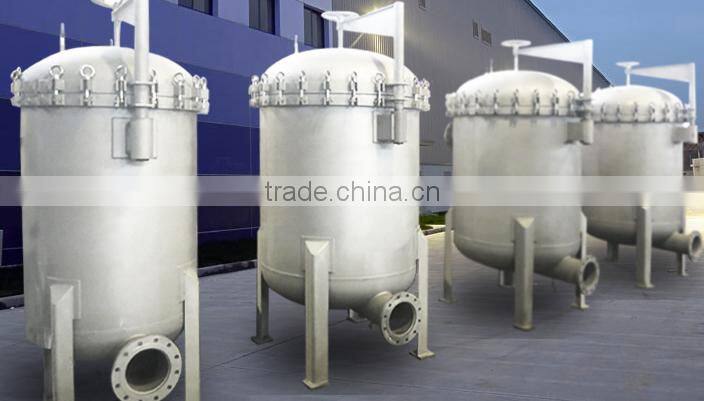

 2. INOCO-MSO-IV Series Multi Cartridge Filter

NOCO multi cartridge filter is one multi function filter, it is consists of shell and cartridge which has widely used for oil, chemical, machinery, metallurgy, textile, textile printing, electroplating, medicine, food for liquid-solid separation and so on. Liquid flow into the filter inlet, filter from outside to inside, impurities trapped in the filter’s surface and deep area, clean liquid flow out from the filter’s outlet.

Technical Parameter

1.Filter Size

Connection size:DN15~DN500 or NPT, standard thread

Drain: DN15~DN50

Vent: DN15

Surface treatment: polish, electric polish, sand blasting, epoxy painting

Note: safe operation temperature and pressure depend on element and seals

Above pressure and temperature, please point out.

Design manufacturing standard: GB150-1998 steel pressure vessel, water treatment filter standard, ASME “U”.

2. Filter Material

Shell material: CS, 304, 316L, C276, 2205, coating

Element material: melt-blown, fiber glass, PP, PTFE, stainless steel and so on.

Shell gasket: NBR (standard), VITON, PTFE, spiral wound gasket in option

Filter precision: 0.003micron~100 microns

Design temperature:80℃, above 80 degree, it need special design

Design pressure: 1.0mpa, above 1.0mpa, it needs special design

Flow capacity: 0.1~500m3/H, it depends on filter precision and element

Cartridge quantity:7-300pcs

Cartridge length: 250,500,750,1000mm

3. INOCO-TM- D series large flow capacity filter (suitable for max flow capacity)

Flow capacity element filters from inside to outside with unique flat mesh structure, cartridge seal will turn more better in operation because of water pressure influence. Unique seal structure will help to ensure system’s leakproofness. INOCO large flow capacity filter also can made as horizontal structure to easily replace cartridge, cartridge is made of fiber with some voidage of filter layer, no cover other filter material any more, operate easily.

Large flow capacity cartridge use pall company’s patent with folded design, single cartridge with larger filter area and longer life. Cartridge uses unique seal structure and connects to tube plate, with no relation with filter shell .

Technical Parameter

Shell material: CS, 304, 316L, C276, 2205, coating

Element material: PP, PTFE, stainless steel and so on.

Shell gasket: NBR (standard), VITON, PTFE, spiral wound gasket in option

Filter precision: 0.003micron~100 microns

Design temperature:80℃, above 80 degree, it need special design

Design pressure: 1.0mpa, above 1.0mpa, it needs special design

Flow capacity: 0.1~5000m3/H

Cartridge quantity:1-30pcs

Cartridge length: 500,1000, 1600mm

Cartridge diameter: 150mm

Advantage

. Absolute filtration precision, tapered micro porous filter material

. ensure low pressure drop, max assimilative capacity and shell diameter

.uniform flow distribution

. liquid filters from inside to outside, greatly improve filter efficiency.

. Absolute filter precision:0.5micron

. Without inner support, easily deal with

.Max inlet and outlet pressure drop:0.35mpa

4. INOCO-TM-D2 series large flow capacity filter ( suitable for high solid content)

TM-D2 series large flow capacity precision filter use high quality cartridge. With years of filtering experience, this design with compact system design helps max flow capacity. Compared with traditional design, D series large flow capacity has more advantages.

D series filter has unique design, single cartridge’s flow capacity can reach 50T/H. so less filter cartridge can meet your flow capacity requirement.

Filter shell turns smaller size with less cartridge. Based on certain flow capacity, compared with traditional filter basket, large flow capacity filter only needs half basket. So it is with less cost and save factory precision space with compact system design.

Cartridge Parameter

60” flow capacity can reach 50T/H

40” flow capacity can reach 80T/H, high capacity of sludge quantity:10kgs

Filter precision:1.2.5.10.15.25.40 and 70 microns

Filter efficiency:99.9%

Material passed FDA certification

TM-D series

Large flow capacity filter with professional design to meet system flow capacity requirements in compact space. Supplied baskets are all standard design, we also can accept customized basket to meet your special use. All filter’s design, manufacturing both meet GB150 standard.

Technical Parameter

Shell material: CS, 304,316L, C276, 2205, coating

Cartridge: PP

Shell gasket: NBR, VITON, PTFE packed VITON, spiral wound gasket in option

Filter precision: 0.5~100 mirons

Design temperature: 80℃( standard )

Design pressure: 1.0mpa ( standard )

Flow capacity: 0.1~5000m3/h

Cartridge quantity: 1-30pcs

Cartridge length: 500,1000,1600mm

Cartridge diameter:160

 5. INOCO-MSO-II Weld-single cartridge filter

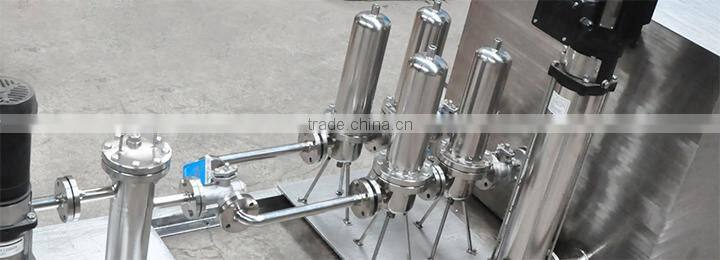

INOCO-MSO-II series weld- single cartridge Filter is equipped with one micro porous cartridge (length 5~40 inches in option), based on different material, diameter and length, it can achieve different flow capacity. Sanitary grade structure design, which can suitable for pharmaceutical, food and beverage and other special industries. Filter connection type usually adopts 226 or thread type. pressure gauge can choose common type or diaphragm-seal pressure gauge.

INOCO SCG-H series filter is assembled by one micro porous element, length can be 5~40 inches in option. based on different specification, material, diameter, length, it can reach different flow capacity. Sanitary grade structure design, which can suitable for pharmaceutical, food and beverage and other special industries. Filter connection type usually adopts 226 or thread type. pressure gauge can choose common type or diaphragm-seal pressure gauge. Before delivery, every filter must pass strict hydrostatic test.

Technical Parameter

Shell material: 20#, 304, 316L, 2205, alloy, lining PP, four fluorine coating

Element material: melt-blown, fiber glass, PP,PTFE, stainless steel and so on.

Shell gasket: NBR (standard), EPDM, VITON, PTFE in option

Element gasket: EPDM, VITON

Filter precision:0.003micron~100 microns

Design temperature:80℃, above 80 degree, it need special design

Design pressure: 1.0mpa, above 1.0mpa, it needs special design

Flow capacity: max 5T/H, it depends on filter precision and element

6. Sanitary cartridge filter

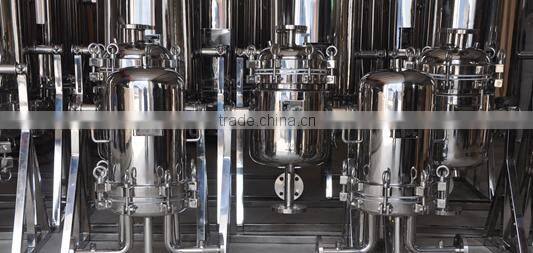

INOCO Sanitary filter housing adopts high quality 304 or 316L stainless steel material, after strictly material chosen each filter is carefully manufactured and ensures no crack streamlined design . The filter has good surface and the maximum corrosion resistance, in order to prevent the quality standard of bacterial contamination, Sanitary level filter housing is unique structure, the inner and the outer surface of each housing are no dead angle, which can be completely washable, easy to operate.

Technical parameters

Lock way: hoop ,sanitary pipe or bolts fast open and close
Max pressure:25kgf/cm2
Max temperature:80℃

housing material:304 or 316L
sealing ring: Food grade silicone rubber, fluorine rubber seal ring, PTFE

Inside surface: Mirror polishing or electro polishing process.
outside surface: Matte processing, polishing and electrolytic polishing.

7.Gas cartridge filters

INOCO years of accumulated experience and technology development on the membrane process, using the most advanced technology and production equipment, provide global customers with all kinds of high-performance, high-quality micro porous membrane filtration system.Filter reasonable application of fluid mechanics technology, according to GB150-1998 design, manufacture, inspection.

Filter parameters

Media:water chemical air gas nitrogen oxygen hydrogen,instrument gas and etc

Capacity:Standard Mode accommodate 12-300 pcs folding membrane

elements,the filter length could be 10,20,30,40 (Unit inch)
Flow rate:
1~10000Nm3/H; Air as unit
Shell material:
CS,304,304L,316,316L,C276,2205,coating
Filter accuracy:
0.003 micron ~ 50 microns
Standard:
steel pressure vessel,water treatment filter criteria, ASME "U"
Pressure and temperature:
0-2.5Mpa / 0-260℃
The maximum pressure and temperature only shows vessel level, the safe operating temperature and pressure will depend on the filter elements and seal ring

Elements Type

Polypropylene folded elements
Teflon elements
Nylon elements
Polyvinylidene fluoride absolute elments
Perfluorinated elements
Stainless steel fiber felt elements
Stainless steel sintered mesh elements
Stainless steel powder sintered elements

Filter connection size: DN15-DN500,NPT,M series

Drain outlet:DN50
Vent:DN15
Discharge port:DN25

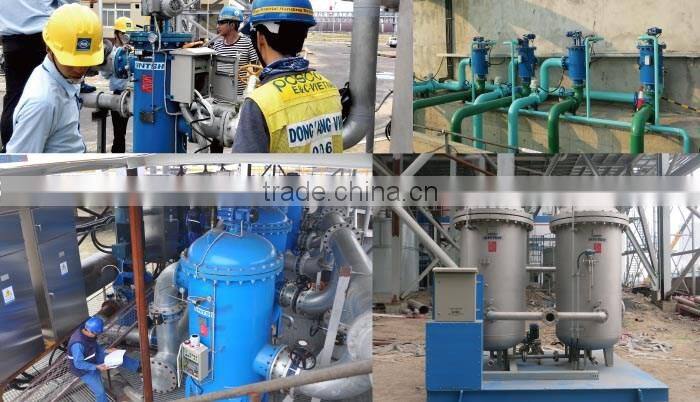

Detailed cases refer to the left picture!

About US:

YNT has ten thousand cooperative companies and nearly hundreds of thousand equipments in operation in china. Including CGN, Samsung, Conocophillips, intel, Arkema, Sinopec group, CNPC, china national offshore oil corporation, BYD, WYETH, Ganfeng Lithium, Shougang group, china air and so on.

YNT has more than ten years’ fabrication & integration experiences. Its products have occupied all kinds industries, especially in such core competitiveness, for example oil gas development, new energy, coal chemical industry, electronics, thermal power, environmental protection. At the same time, YNT has pressure vessel manufacturing license.

YNT has strictly carried out ISO9001 international quality management system. We make long term cooperation with more than twenty agents to ensure supply most perfect after-sale service system. YNT after-sale team can quickly arrive at the scene within 24 hours.
