Usage and features of white coal briquetting machine;
This White Coal briquetting machine can be used in producing high quality wood charcoal stick
with sawdust,wood chipses, branches, crop stalks, sugarcane residue, coffee husk, paddy straw,
sunflower stalk,cotton stalks, bamboo dust,palm husk,soybeans husk, tea waste,etc.
It's equipped with automatic temperature control system and designed to produce high density
wood briquette from biomass.
The product of this machine can be used to heat boiler, fireplace, etc for warm in house.
Working Principles of white coal briquetting machine;
This machine uses a large screw to grind, compress and extrude the biomass into briquettes.
The natural lignin content in biomass is liberated with wood fiber under high pressure and
temperature.
In the briquetting process lignin serves as the glue and combines the particles of wood together,
thus binding, compressing the biomass to form into various moulds of high density briquette,
such as hexagonal, quadrangular, square,etc. As your requirement, we can also change the shape
according to customer need. And the diameter of briquettes are from 50-80 mm.
Moreover non-binder needs to be used during this process.
Characteristics of white coal briquetting machine;
2. The humidity of the raw materials is controlled in 8-12%.
3. Using the advanced Hot air drying system with the perfect performance.
4. After the processing of High temperature, purification, smoke removing, the carbonizing
equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Main Technical Parameters;
Type |
WHIR-50 |
WHIR-70 |
WHIR-80 |
Capacity |
150-200kg/h |
200-250kg/h |
260-350kg/h |
Motor Power |
15kw |
18.5kw |
22kw |
Diameter of Briquettes |
40mm,45mm,50mm |
60mm,70mm |
70mm,80mm |
Input diameter |
<5mm |
<5mm |
<5mm |
Inside Close-up of white coal briquetting machine;
Spare parts of white coal briquetting machine;

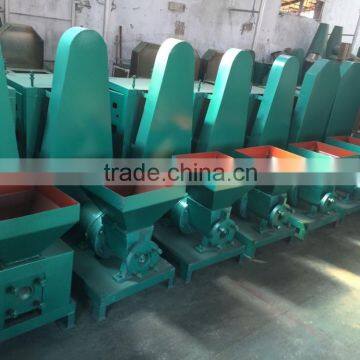

Factory Wharehouse (white coal briquetting machine);
Customer Visit (white coal briquetting machine)
Packing and shipping (white coal briquetting machine);
