Help CenterGood Performance Coconut Shell Charcoal Briquette Machine
Related Products
-
Charcoal Briquette Extruder Machine for SaleUS$ 1 - 1MOQ: 1 Set -
Good Feedback Shisha Charcoal Briquette MachineUS$ 1 - 1MOQ: 1 Set
-
Hot Selling Sawdust Briquette Charcoal Making MachineUS$ 1 - 1MOQ: 1 Set
-
2015 High Quality Charcoal Briquette Making Machine 86 15238638394US$ 1 - 1MOQ: 1 Set
-
350-400kg/h Fire Wood Briquette Making Machine From SawdustUS$ 3,000 - 5,000MOQ: 1 Set
Usage and features of coconut shell charcoal briquette machine;
This coconut sheel charcoal briquette machine can be used in producing high quality wood
charcoal stick with sawdust, wood chipses, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk,cotton stalks, bamboo dust,palm husk,soybeans husk, tea waste,etc.
It's equipped with automatic temperature control system and designed to produce high density
wood briquette from biomass.
The product of this machine can be used to heat boiler, fireplace, etc for warm in house.
Working Principles of coconut shell charcoal briquette machine;
This machine uses a large screw to grind, compress and extrude the biomass into briquettes.
The natural lignin content in biomass is liberated with wood fiber under high pressure and
temperature.
In the briquetting process lignin serves as the glue and combines the particles of wood together,
thus binding, compressing the biomass to form into various moulds of high density briquette,
such as hexagonal, quadrangular, square,etc. As your requirement, we can also change the shape
according to customer need. And the diameter of briquettes are from 50-80 mm.
Moreover non-binder needs to be used during this process.
Characteristics of coconut shell charcoal briquette machine;
2. The humidity of the raw materials is controlled in 8-12%.
3. Using the advanced Hot air drying system with the perfect performance.
4. After the processing of High temperature, purification, smoke removing, the carbonizing
equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Main Technical Parameters;
Type |
WHIR-50 |
WHIR-70 |
WHIR-80 |
Capacity |
150-200kg/h |
200-250kg/h |
260-350kg/h |
Motor Power |
15kw |
18.5kw |
22kw |
Diameter of Briquettes |
40mm,45mm,50mm |
60mm,70mm |
70mm,80mm |
Input diameter |
<5mm |
<5mm |
<5mm |

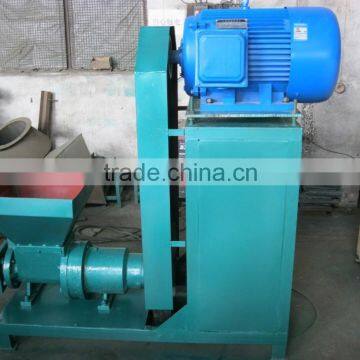

Inside Close-up of coconut shell charcoal briquette machine;

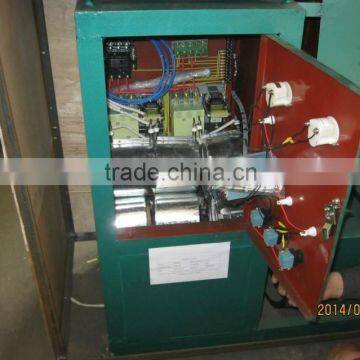

Inside components of coconut shell charcoal briquette machine;
Factory Wharehouse (coconut shell charcoal briquette machine);
Customer Visit (coconut shell charcoal briquette machine)
Packing and shipping (coconut shell charcoal briquette machine);
Why Choose us:
- 1. Manufacture
1. Keep the quality first
2. Make more products benefit to customers’ need
- 2. Online/Sale service
1. Super and solid quality
2. Fast and punctual delivery
3. Standard export package and as customers’ need
- 3. After-sale service
1. Assistance to build factory or your project
2. Repairing and maintenance
(If any problem occur in the warranty)
3. Installation and clerks training
4. Spare and wearing parts for free or big discount
5. Any private need/opinions, we’ll try our best to help u
- 4. Other cooperation service
1. Technology knowledge share
2. Factory building advice
3. Business expansion advice
Should u have any interest, pls contact me directly for further discussion!
