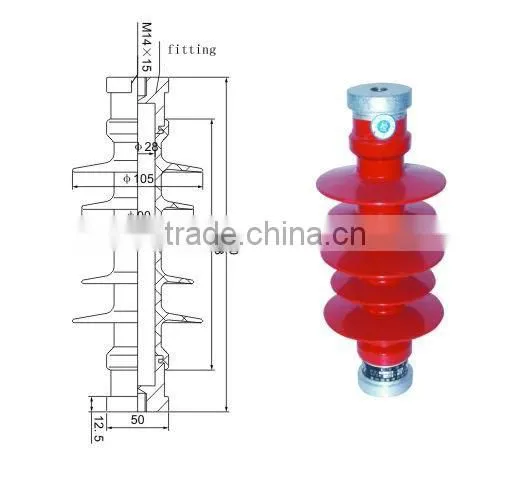

Help CenterFZSW4 Composite Insulator of Post Type
Related Products
-
Long Rod Insulator 5KVNegotiableMOQ: 100 Pieces -
110KV Suspension Strain Type Insulators With Grading RingNegotiableMOQ: 100 Pieces
-
Composite Lightning ArresterNegotiableMOQ: 100 Pieces
-
10KV Pin Composite InsulatorNegotiableMOQ: 100 Pieces
-
66KV Cross-arm Composite InsulatrNegotiableMOQ: 100 Pieces
Specifications
1.rated voltage:10~220KVnfirm to GB/T19519-2004,JB/T8460-1996
3.certification:ISO9001
4.package: Standard Export Carton
Composite post insulator is suitable for various area, especially filthy areas. This kind product’s anti-bending intensity is high and its performance in anti-pollution, anti-quake, anti-impulse, anti-rupture is excellent. Besides, its volume is small, weight is light, and convenient to install. Maintenance and manual cleaning is not needed. It is an alternative to porcelain post insulator.
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop dip galvanized cast steel for metal fittings

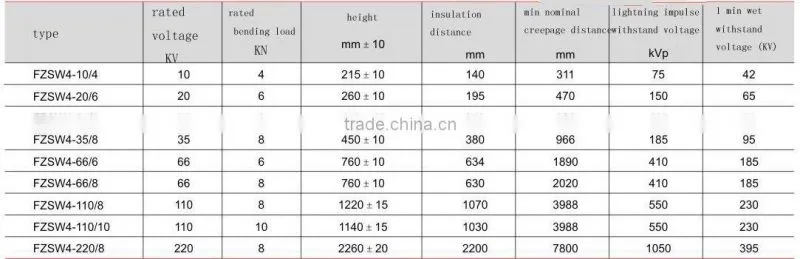

Technical Parameter:
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 1500m
3.AC Power frequency does not exceed 100Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees

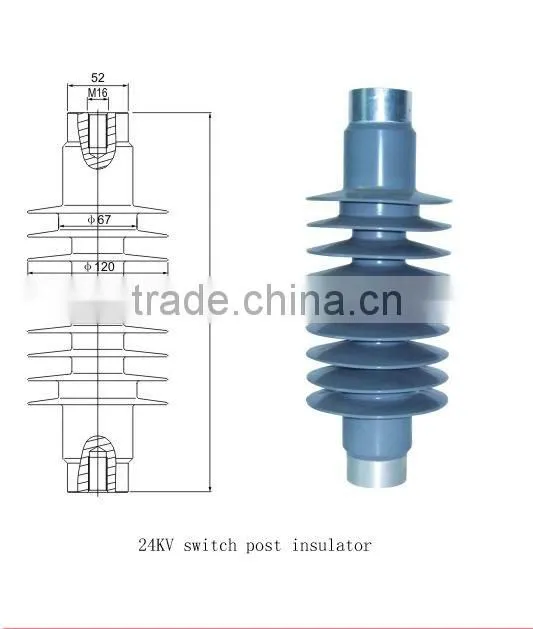

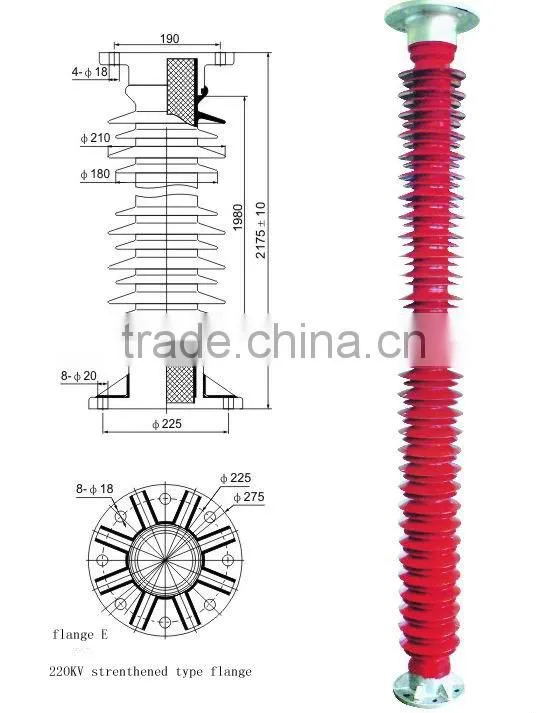

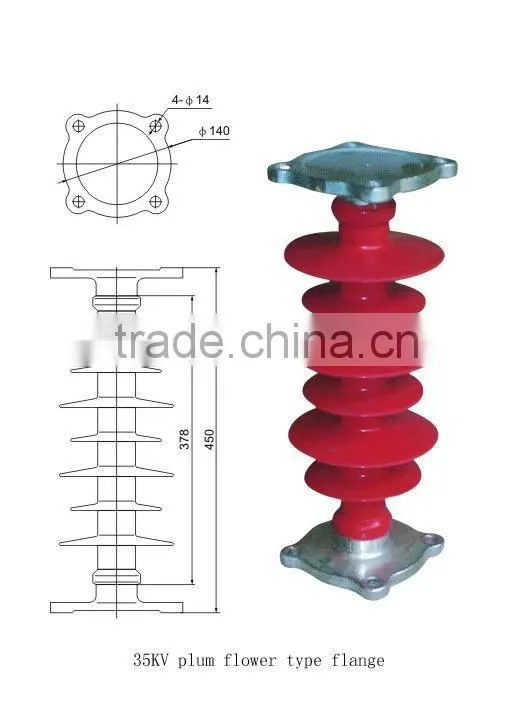

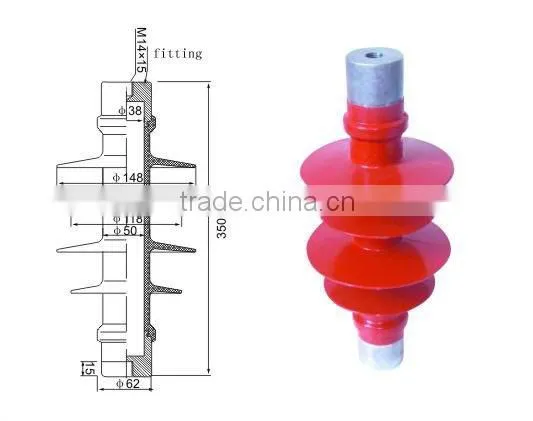

More pictures:
