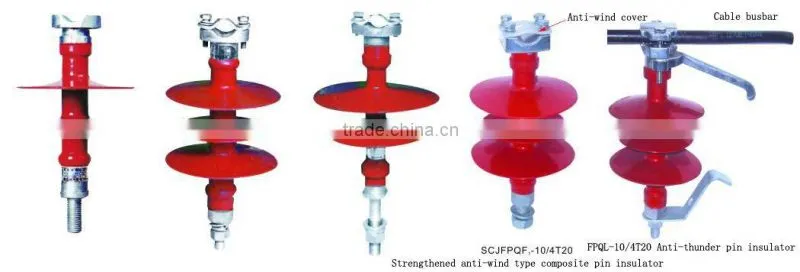

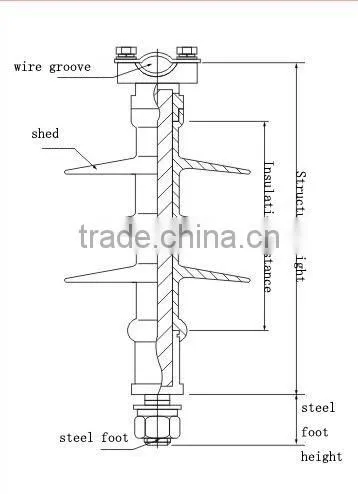

10KV Pin Composite Insulator
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mingneng
Model Number:

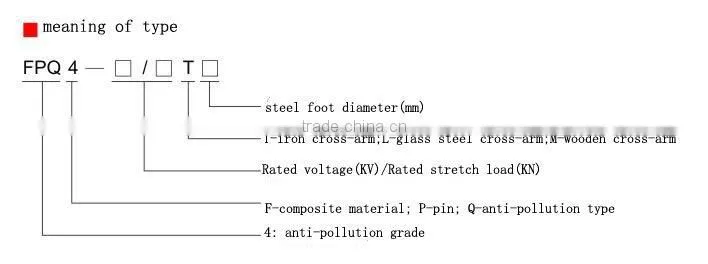

FPQL-10/4T20
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
66KV Cross-arm Composite InsulatrNegotiableMOQ: 100 Pieces -
5KV Polymer Lightning Surge ArresterNegotiableMOQ: 100 Pieces
-
18KV Zinc Oxide Lightning Arrester Without GapsNegotiableMOQ: 100 Pieces
-
12KV Lightning Surge Arrester SymbolNegotiableMOQ: 100 Pieces
-
5KV Composite Long Rod Suspension InsulatorNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Mingneng
Model Number
FPQL-10/4T20
Type
Insulator
Material
Composite Polymer
Application
High Voltage
Rated Voltage
10KV
Tensile Strength
4KN

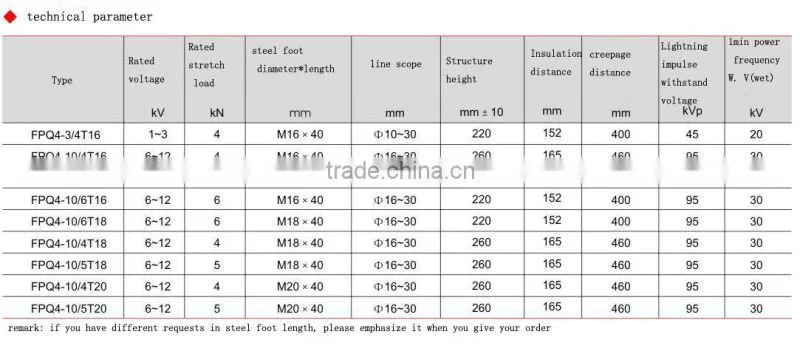

Specifications
Rated Voltage:10KVpackage: Carton
Certification:ISO9001
Offer OEM,ODM
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop dip galvanized cast steel for metal fittings
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 1500m
3.AC Power frequency does not exceed 100Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
