110KV Suspension Strain Type Insulators With Grading Ring
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mingneng
Model Number:
FXBW-110/100
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Composite Lightning ArresterNegotiableMOQ: 100 Pieces -
10KV Pin Composite InsulatorNegotiableMOQ: 100 Pieces
-
66KV Cross-arm Composite InsulatrNegotiableMOQ: 100 Pieces
-
5KV Polymer Lightning Surge ArresterNegotiableMOQ: 100 Pieces
-
18KV Zinc Oxide Lightning Arrester Without GapsNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Mingneng
Model Number
FXBW-110/100
Type
Insulator
Material
Composite Polymer
Application
High Voltage
Rated Voltage
110KV
Tensile Strength
100KN
Specifications
Rated Voltage:110KVpackage: Carton
Certification:ISO9001
Offer OEM,ODM
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop dip galvanized cast steel for metal fittings
Technical Parameter:
Normal service conditions:
The ambient air temperarture is no higher than +40 degree. no lower than -40 degree.
The altitude above sea level does not exceed 2000m
Power frequency 48Hz~62Hz
Maximum wind speed does not exceed 35m/s
The earthquake intensity does not exceed 7 degrees
The voltage that long-time exerted shouln't exceed its Max MCOV

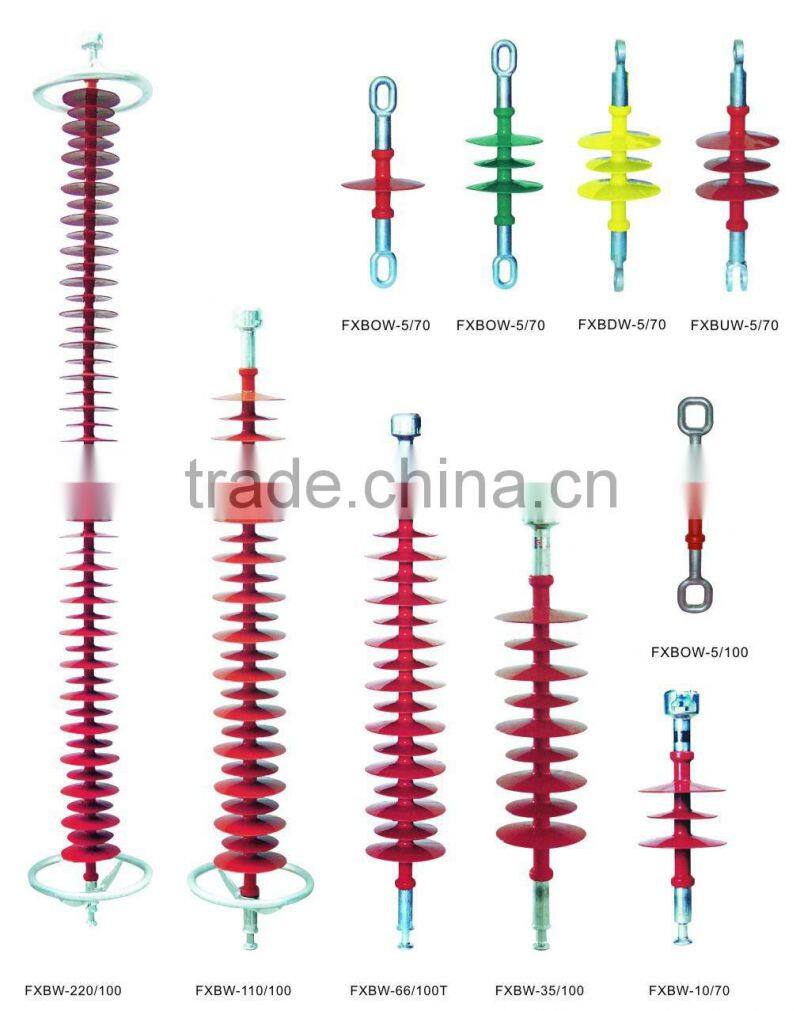

more pictures:
