Home > Products > Material Flammability Tester > High Quality UL 94 IEC 60695 Electrical Simulation Foam Horizontal and Film Vertical Orientation Flammability Test Machine

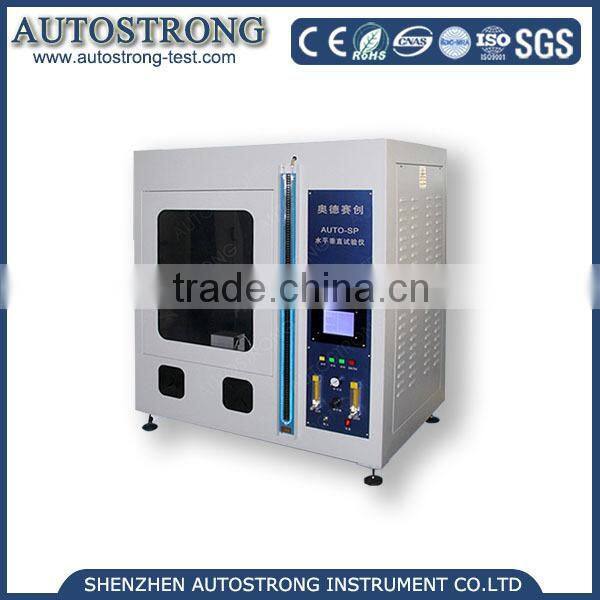

High Quality UL 94 IEC 60695 Electrical Simulation Foam Horizontal and Film Vertical Orientation Flammability Test Machine
- Shenzhen
- T/T Money Gram Credit Card PayPal
You May Like
-
High Quality Hot Selling Good Price Flame Burning Tester
-
IEC EN 60695-11-2 3 4 Electronic Power and Deformation Testing Machine Usage Cable Vertical Flame Test Equipment Quality Choice
-
Hot High Performance IEC60112 Electric Tracking Index Tester
-
High Quality IEC 60112 Tracking Index Test Machine
-
Softening Temperature Test Equipment
-
Plastic Heat Deformation Vicat
Product Details
| Place of Origin | Guangdong, China | Brand Name | AUTOSTRONG | |
| Model Number | AUTO-SPA | Power | Electronic | |
| Usage | Other, flammablility test machine |
Standard export wooden case/horizontal and vertical flammability test machine
Product Description
High Quality UL 94 IEC 60695 Electrical Simulation Foam Horizontal and Film Vertical orientation flammability Test Machine
Characteristics:
Horizontal-vertical flame chamber tester is composed by the test part and control part, using the integrated design, to facilitate the installation at the scene and debug. The shell of the test chamber and the important parts are all manufactured by stainless steel, resistant cigarettes and gas corrosion. The automatic degree of control system is high. Has automatic ignition, the products which were tested in both vertical and horizontal orientation has the function automatically follow flame in the cross of the test. Time and temperature figures show, so that the observation and records is facilitate and the use of it is stable and reliable.
Technical Parameters:
Kinds | 500W(5V class ) | 50W(HB/Vclass) |
| Test Flame | 500W(burning test for V-0,V-1,V-2 classification) | 50W(burning test for V-0,V-1,V-2 classification) |
| Burner Tube | Internal diameter: Φ 9.5mm±0.3mm | Internal diameter: Φ 9.5mm±0.3mm, |
| Burning Angle | 0°,20°,45° | 0°,20°,45° |
| Thermocouple | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) |
| Thermocouple Size | 0.5 mm | 0.5 mm |
| Standard Copper Block | 9mm±0.01mm, weight:10g±0.05g before drilling. | 5.5mm±0.01mm, weight:76g±0.01g before drilling. |
| Time for Temperature to Increase | From 100°C±5°C to 700°C±3°C; 54s±2s (preset) | From 100°C±5°C to 700°C±3°C; 44s±2s (preset) |
| Gas Flow | 965±32ml/min | 105±10ml/min |
| Gas Supply | methane,min.98% purity | methane,min.98% purity |
| water-column | 125m±5mm | ‹10mm |
| Test Time | 54±2s | 44±2s |
| Flame Height Indicator | 40±1mm | 20±1mm |
| Volume Of Chamber | >0.5m³, black interior | >0.5m³, black interior |
| Conform to standard | UL94,IEC60695-11-3,IEC60695-11-20 | UL94,IEC60695-11-4,IEC60695-11-10 |
According to the price and effencify,choose the best transportation for you.

1. High quality is always our key to market .
2. We will take photos or vidios of your order before shipment.
3. Engineering team is professional and will provide you with good after-sales service.
The advantage of our company
1. Professional R&D team and factory can offer our clients OEM&customizing service.
2. Delivery time is fast, and quick respond.
3. Many years of experience in foreign export.
Management philosophy
1) Customers are god. We will do our best to satisfy you.
2) We will protect our reputation.
3) The quality is the most important thing.
4) We will bear a strong sense of responsibility.
HONGKONG AUTOSTRONG TECHNOLOGY CO,.LTD
HONGKONG AUTOSTRONG TECHNOLOGY CO,.LTD is a high-tech company in Hongkong,who is engaged in research and development,manufacture of test instrument,whose headquater is in Kowloon,Hongkong,with branch offices in Shenzhen.
AUTOSTRONG is one of leading enterprises in Hongkong on R&D and manufacture of testing instruments.we supply standard or customized solutions and products for many test,measurement and quality control tasks required in the world of cable,wire,socket,plug,switch,plastic and rubber testing.All of our products are complying with the requirements of many standards,such as IEC,UL,VDE,VS,JIS,GB and so on.
AUTOSTRONG strategic cooperation with Germany WAZAU,Germany PTL company,Germany FISCHER,Japanese minebea,and on going technical exchange.
AUTOSTRONG spirit:integration of science and wisdom,quality and service co-exist,face to the world,to achieve a win-win for the supply and demand.
1.Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2.Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
--Promptly production and delivery, inform you in time
--Provide invoice value as you like to decrease your tax
3.After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
For any more information, please fill it in the box below, we are always at your service!
Company Profile
AUTOSTRONG is located 20 minutes of Shen zhen international airport, is a professional product safety testing equipmentmanufacturer .We offer a wide range of product safety test equipments,many of them are in stock.Our headquarter in Kowloon Hong Kong and branch factory in Shenzhen. Shenzhen Branch factory besides 107 highway with very convenient transportation. AUTOSTRONG is a reputed manufacturer,which has engaged in Research & Development and Manufacture test equipments for many years. It is one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2008 Certification. We have a Professional and International Team with more than 60 engineers form Germany, Hong Kong and China. We focus on provide the highest grade products and services to our clients. With almost ten years development, we are being the fastest growing manufacturer supplier of test equipments for many industrial and manufacturing scenarios. All products manufactured are strictly in accordance with various EN,IEC,CE, UL,VDE, VS, JIS, ISO,CEE,BS,FMV,GB and other similar international standards. Main Products include: Glow Wire Tester, Needle Flame Tester, Horizontal and Vertical Burning Tester, Tracking Index Tester, Textile Burning Tester, Protective Clothing Thermal Conductivity Tester, Automotive Interior Combustion Tester, Melt Dripping Tester, Building Materials Flammability Tester, Friction Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series ,Environmental Tester,Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments. We have established stable cooperation relationships with many famous international company,laboratory and authorized third party test house. Such as: WAZAU, PTL, Bureau Veritas, TUV Rheinland,TUV Product Service,SGS, CSA international, PSE Japan, UL Laboratry Sweden,Met Laboratory Inc, LG Korea, Samsung Electric Appliances Inc. etc.
