Base for Ball Pressure Apparatus According to IEC60335-1 IEC60695-10-2
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
-
Laboratory Equipment Ball Pressure Apparatus With IEC60695-10-2 Confirmed
-
IEC60695 UL746A Flammability Fire Chamber
-
Autostrong Ball Pressure Apparatus with IEC 60695 confirmed
-
High Quality IEC60695 IEC60884 IEC60320 IEC60335 Ball Pressure Tester
-
Glow Wire Thermo Resistance Loop
-
glow wire test instrument
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | AUTOSTRONG | Model Number: | AUTO-BPA |
| Power: | Other, NO | Usage: | Compression Testing Machine |
Packaging Details

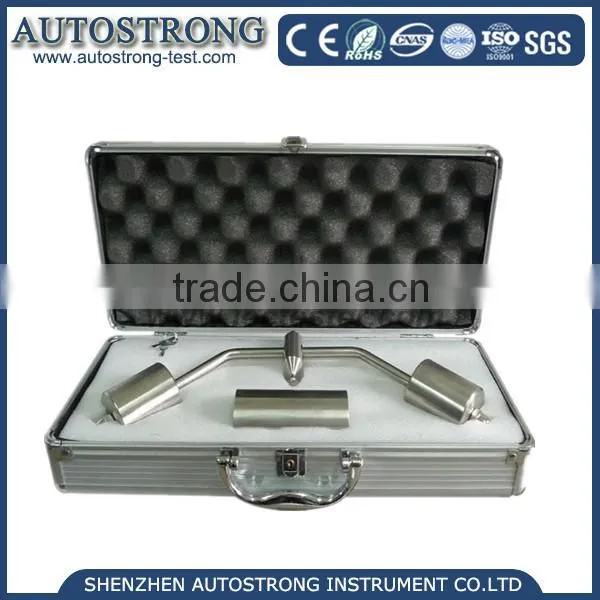

packed with Aluminum specimen box
Product Description
Base for Ball Pressure Apparatus According to IEC60335-1 IEC60695-10-2
Application:

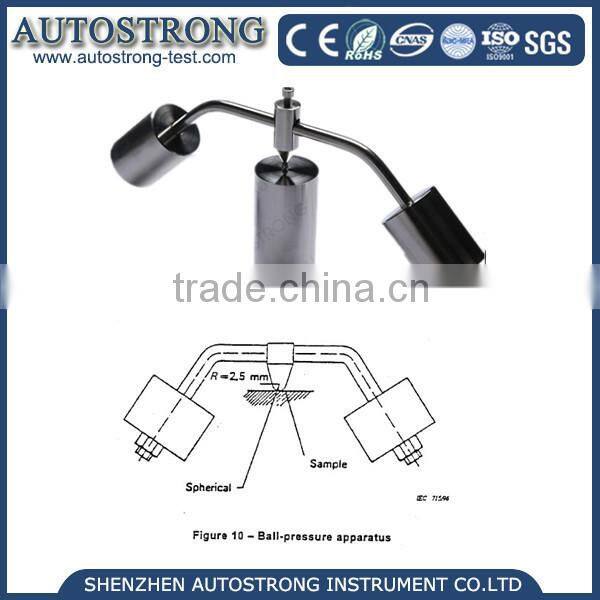

Ball Pressure Apparatus is the requirement ball (R2.5mm) and total test force 20N ± 0.2N ball pressure testing device,pressure level of the state and was placed in the heating chamber on the surface of the test.
In the test temperature specified by the after 60min +2 min/0min,the test quickly (<10s) immersed in 20 °C ± 5 °C water cooling 6min ± 2min,3min removed from the water surface within the indentation diameter measurement test, as the indentation is more than 2mm in diameter to evaluate the test specified in the heat deformation temperature.
Technical parameters:
| Ball diameter | 5mm ± 0.05mm |
| Ball pressure | 20N(includes loading device and ball) |
| Test standard | 100mm high X50mm diameter,hole diameter 2mm |
| Material | stainless steel,Ball:hardened steel |
| Reference | IEC60695-10-2(2003),IEC60884-1,IEC60335, IEC60598-1,IEC60950-1 ,IEC60320-1 |
Product details:
