Glow Wire Test equipment with UL746A IEC60695-2-10
Standard
IEC60695 UL746A GB5169
Features

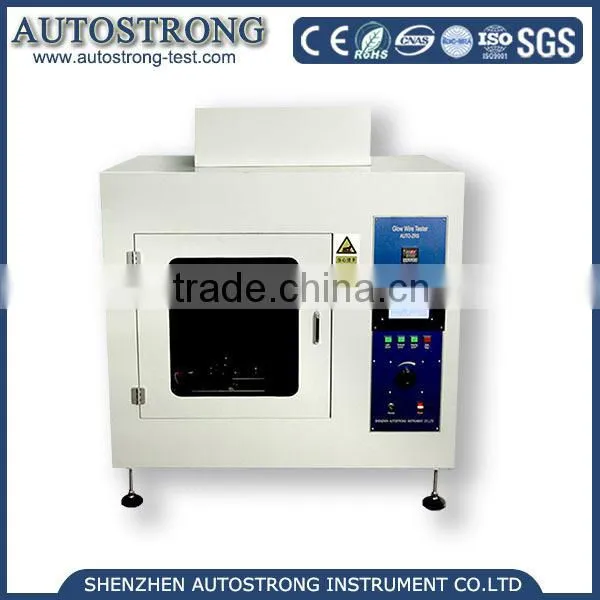

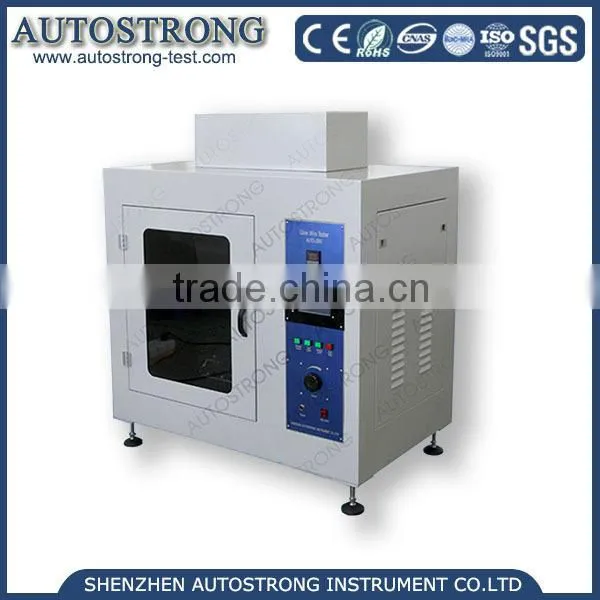

The test apparatus is designed to carry out fire hazard testing on electro technical products
in accordance with the provisions of International standards.
The control unit is supplied with all the controls and metering necessary to accurately set the
temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.

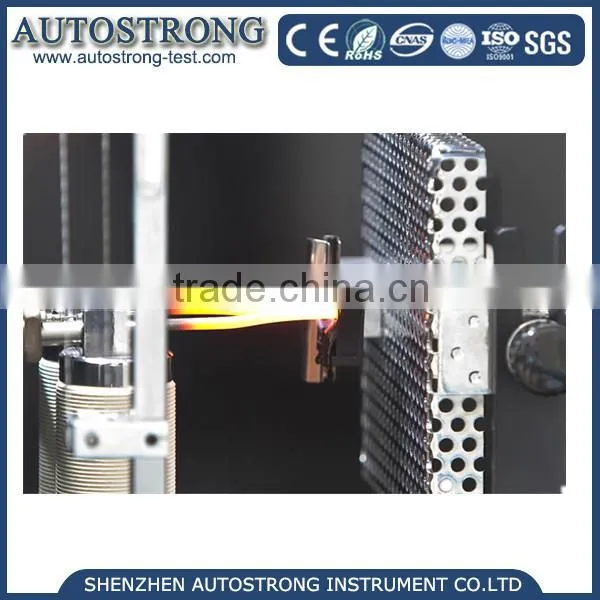

A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied,
accurately measures the glow wire temperature. The electrical circuit of the control unit is fully
protected by fuses and a miniature circuit breaker and in corporates mains on/off switching and
push button control of the output current. Self contained cabinet with large viewing window and
dark colored interior.
TECHNICAL DATA
Glow Wire |

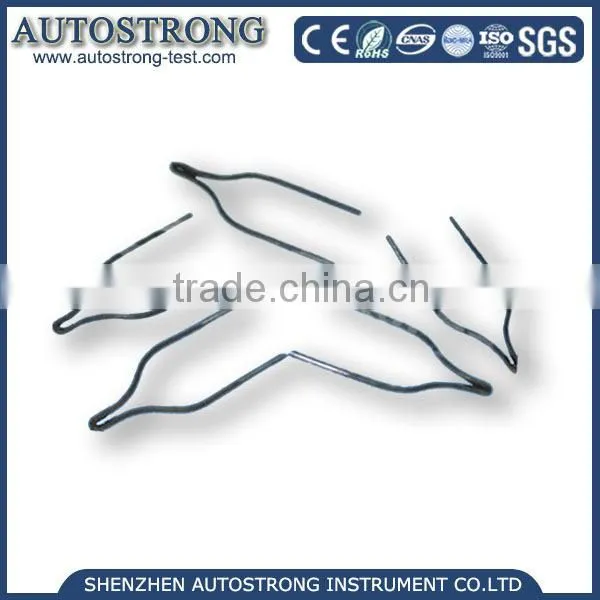

Ø 4mm±0.04mmNi/Cr(80/20), standard |
Temperature Range |
500 ~ 1000 °C± 2 °C continuous adjustable |
Thermocouple |
Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C |
Sample pressure |
1N ± 0.2 N |
Test speed |
18±3mm/s |
Test background |
black background |
Test process |
automatic control, independent convulsions |
Chamber |
≥0.5m |
Size |
W1100mm×D700mm×H1300mm, exhaust hole Ø100mm |
Control |
Using single chip microcomputer + touch screen control |
Consult standard |
GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A |
Power Supply |
800VA ,220V, 48-60Hz |
Display panel language |
Chinese + English (adjustable) |
PACKING: Wooden Case
Shipping Method: Express/By Air/By Sea
Company Information
HONGKONG AUTOSTRONG TECHNOLOGY CO,.LTD
HONGKONG AUTOSTRONG TECHNOLOGY CO,.LTD is a high-tech company in Hongkong,who is engaged in research and development,manufacture of test instrument,whose headquater is in Kowloon,Hongkong,with branch offices in Shenzhen.
AUTOSTRONG is one of leading enterprises in Hongkong on R&D and manufacture of testing instruments
.we supply standard or customized solutions and products for many test,measurement and quality control tasks required in the world of cable,wire,socket,plug,switch,plastic and rubber testing.All of our products are complying with the requirements of many standards,such as IEC,UL,VDE,VS,JIS,GB and so on.
Products include:Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester,textile burning tester,protective clothing thermal conductivity tester,automotive interior combustion tester ,melt dripping tester,building materials flammability tester,friction tester,test finger,spring hammer,universal testing machinge and other testing instruments.
AUTOSTRONG strategic cooperation with Germany WAZAU,Germany PTL company, Germany,FISCHER,
Japanese minebea,and on going technical exchange.
AUTOSTRONG spirit:integration of science and wisdom,quality and service co-exist,face to the world,to achieve a win-win for the supply and demand.
If you have question,please feel free contact me.
