Specifications
Drilling capacity : 50mmSpindle taper: MT4
Spindle speed :60-1160rpm
Spindle speed steps :6
Distance spindle-column:310mm

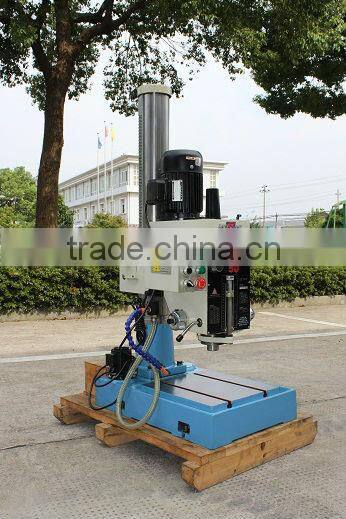

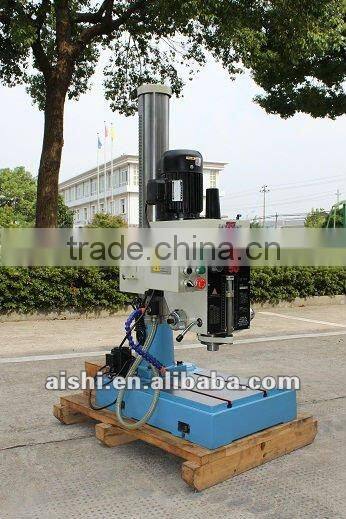

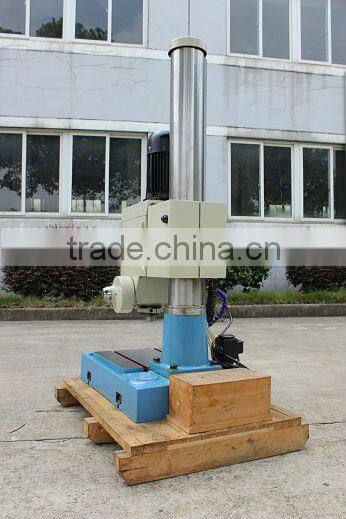

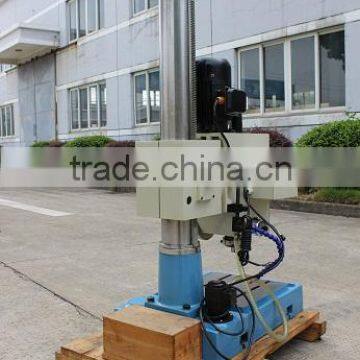

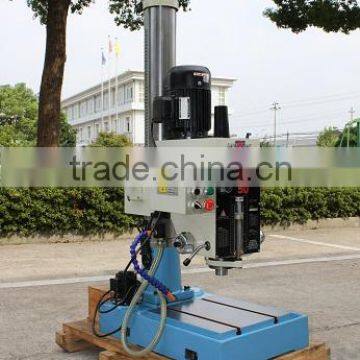

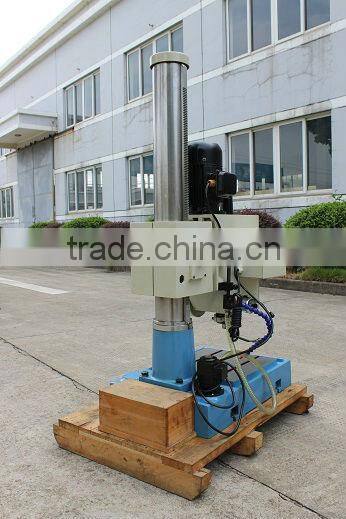

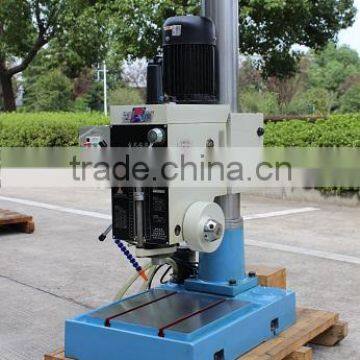

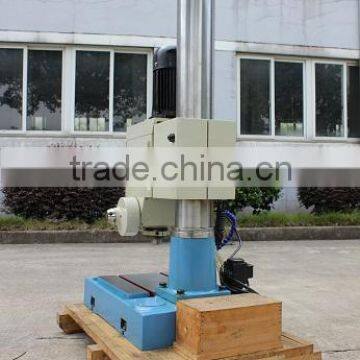

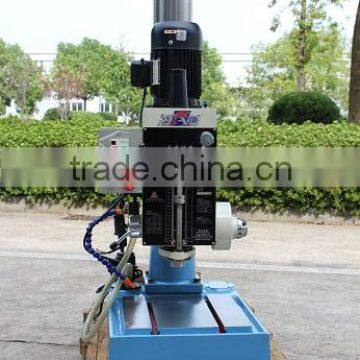

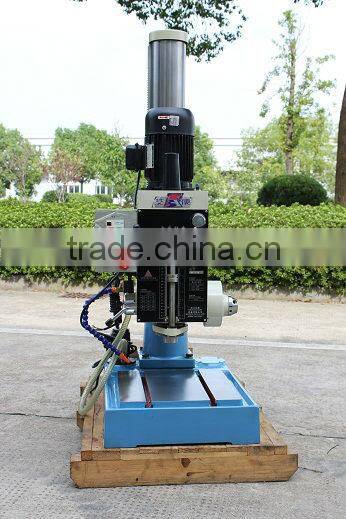

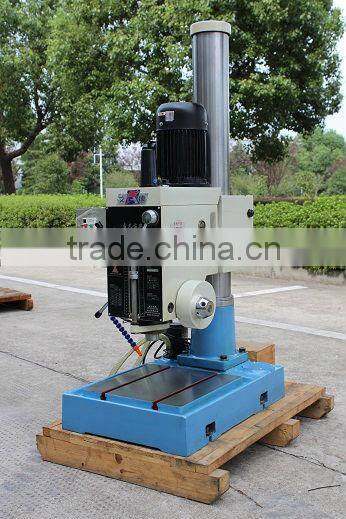

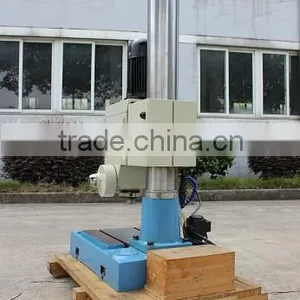

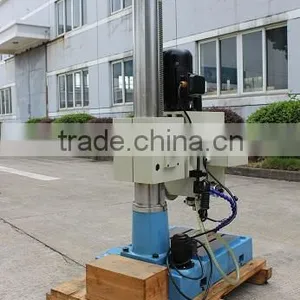

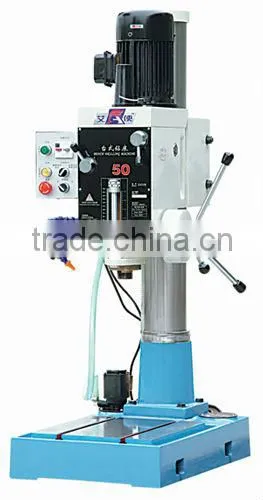

Z4050 Small drilling machine
·Adopting gears as the main transmission approach,this model is featured in large torque,capable of fulfilling the tasks such as boring,broaching and reaming as well as different types of milling.The boring and milling capability of the machine is unique.
·The gears are lubricated with oil-immersion method,which ensures the smooth running and reduces the noise.
·The technology of advancing system in this model is a patent of the enterprise. The extraordinary performance of the manual feeding mechanism shall effectively reduce the cost of the production for the users.
·The stroke mechanism is another patent of the enterprise,which combines the rig-adjusting and fine-adjusting,resulting in convenient operation and esthetic appearance.
| MODEL | Z4050 |
| CAPACITY | |
| Drilling capacity(max.) | Cast Ø50mm |
| Steel Ø45mm | |
| SPINDLE | |
| Spindle taper | MT4 |
| Spindle speed | 60-1160rpm |
| Spindle speed steps | 6 |
| Distance spindle-column | 310mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 150mm |
| Rate of feed/Torque motor Z-axis | Auto |
| COLUMN | |
| Column diameter | Ø130mm |
| TABLE | |
| Table (L×W) | 400×380mm |
| Table load | 100kg |
| Distance spindle-base table(max.) | 725mm |
| ELECTRIC SUPPLY | |
| Motor | 2.2kW |
| Speed regulating motor | 100T/75T/50T/30T |
| Motor coolant pump | 40W |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 700×560×1650mm |
| Packing size (L×W×H) | 700×980×1500mm |
| Net weight/Gross weight | 320kg |
