Z5050B Vertical Drilling Mahine
US$ 2,700 - 3,300
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
60-1160rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai / ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5050 Vertical Drilling PressUS$ 2,150 - 2,500MOQ: 2 Sets -
Z4050B Hole Drilling MachineUS$ 2,700 - 3,150MOQ: 2 Sets
-
Z5032 Drilling PressUS$ 1,950 - 2,450MOQ: 2 Sets
-
Z5032A Vertical Drilling MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
LF Mini Drill Machine,small Manual Drilling MachineUS$ 1,500 - 2,200MOQ: 2 Sets
Condition
New
CNC or Not
Normal
Drilling Speed
60-1160rpm
Place of Origin
Zhejiang, China
Brand Name
Aishi
Model Number
Z5050B
Voltage
220/380V
Power(W)
2.2Kw
Dimension(L*W*H)
700x1050x1950mm
Weight
320kgs
Certification
ISO
Specifications
Spindle taper MT4Spindle speed 60-1160rpm
Spindle speed steps 6
Distance spindle-column 310mm
Z-axis travel 150mm

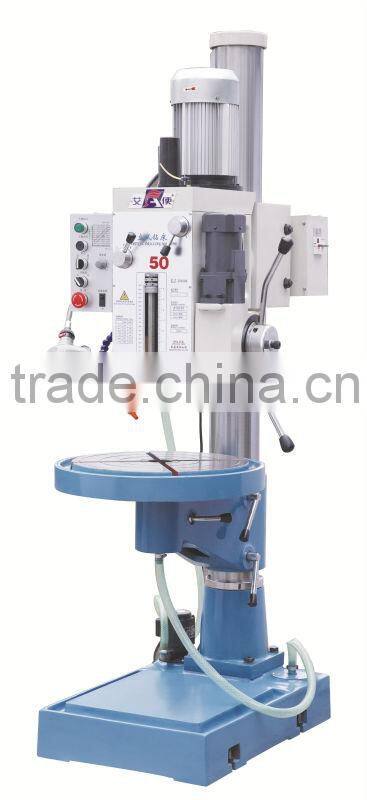

Z5050B vertical drilling mahine
|
MODEL
|
Z5050B |
|
CAPACITY
|
|
| Drilling capacity(max.) | Cast Ø50mm |
| Steel Ø45mm | |
|
SPINDLE
|
|
| Spindle taper | MT4 |
| Spindle speed | 60-1160rpm |
| Spindle speed steps | 6 |
| Distance spindle-column | 310mm |
|
SPINDLE HOLEING FIXTURE
|
|
| Z-axis travel | 150mm |
| Rate of feed/Torque motor Z-axis | Auto |
|
COLUMN
|
|
| Column diameter | Ø130mm |
|
TABLE
|
|
| Table (Diameter) | Ø440mm |
| Table load | 100kg |
| Distance spindle-middle table(max.) | 610mm |
| Distance spindle-base table(max.) | 1160mm |
|
ELECTRIC SUPPLY
|
|
| Motor | 2.2kW |
| Speed regulating motor | 100T/75T/50T/30T |
| Motor coolant pump | 40W |
|
DIMENSION AND WEIGHT
|
|
| Overall dimension (L×W×H) | 900×560×2080mm |
| Packing size (L×W×H) | 700×1050×1950mm |
| Net weight/Gross weight | 320kg |
