Z4640 Multi Spindle Combination Drilling Machine,two Heads Drilling Machine
US$ 8,500 - 9,500
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
67~1780rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z4040 Normal Drilling Machine,manual Drilling MahineUS$ 4,000 - 5,000MOQ: 2 Sets -
Z5040A Manual Drilling Machine,vertical Drilling MahineUS$ 3,800 - 4,700MOQ: 2 Sets
-
Z5050B Vertical Drilling MahineUS$ 2,700 - 3,300MOQ: 2 Sets
-
Z5050 Vertical Drilling PressUS$ 2,150 - 2,500MOQ: 2 Sets
-
Z4050B Hole Drilling MachineUS$ 2,700 - 3,150MOQ: 2 Sets
Condition
New
CNC or Not
Normal
Drilling Speed
67~1780rpm
Place of Origin
Zhejiang, China
Brand Name
Aishi
Model Number
Z4640
Voltage
220V/380V
Power(W)
2.2Kw
Dimension(L*W*H)
1570x1480x2000mm
Weight
2000kg
Certification
ISO
Specifications
1. Multi spindle(two)2. Spindle taper : MT4
3. Spindle speed : 67-1780rpm
4. Z-axis travel : 180mm

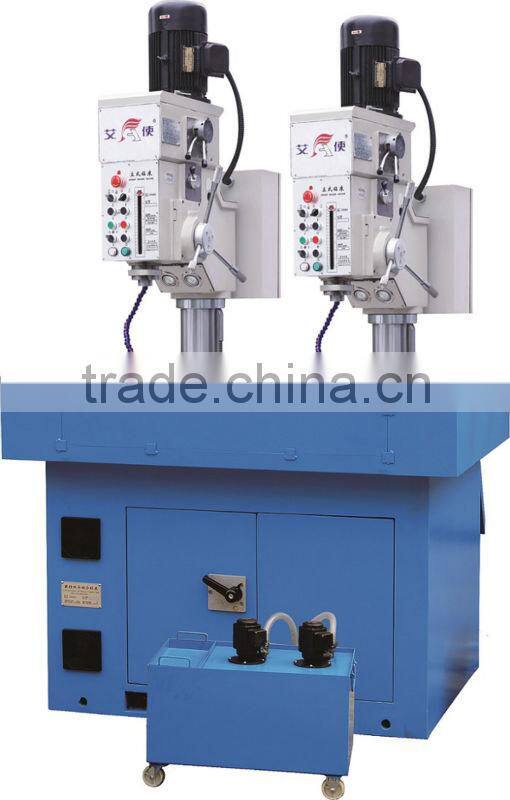

Z4640 multi spindle,two heads drilling machine
| MODEL | Z4640 |
| CAPACITY | |
| Drilling capacity(max.) | Ø40mm |
| SPINDLE | |
| Spindle taper | MT4 |
| Spindle speed | 67-1780rpm |
| Spindle speed steps | 12 |
| Distance spindle-column | 350mm |
| Distance between two columns | 500mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 180mm |
| Rate of feed/Torque motor Z-axis | 0.1,0.2,0.3mm/r |
| COLUMN | |
| Column diameter | Ø165mm |
| TABLE | |
| Table (L×W) | 1070×400mm |
| Table load | 200kg |
| T-slot | 14mm/100mm/3 |
| Distance spindle-table(max.) | 600mm |
| ELECTRIC SUPPLY | |
| Motor | 2.2/2.8kW |
| Motor coolant pump | 40W |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 1400×1400×2400mm |
| Packing size (L×W×H) | 1570×1480×2000mm |
| Net weight/Gross weight | 2000kg |
