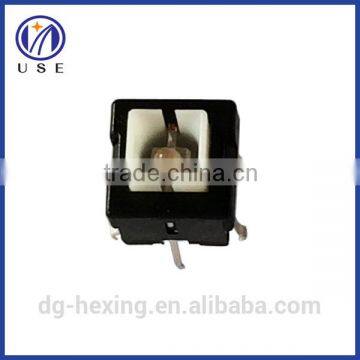

LED Dip Tact Switch 8*8mm Green Color

LED dip tact switch 8*8mm green color for home appliances

_{8*8mm LED light switch, touch switch with LED light  .}

1. GENERAL
1-1 Scope : This specification covers the requirements for single key switch which no keytop.
(Tact switch : mechanical contact)
1-2 Operating Temperature Range :
-20℃ to 70℃ (normal humidity , normal press)
1-3 Storage Temperature Range :
-30℃ to 80℃ (normal humidity , normal press)
1-4 Test Condition
Test and measurements shall be made in the following standard conditions
Unless otherwise specified.
Normal temperature ( temperature 5 to 35℃ )
Normal humidity (relative humidity 45 to 85% )
Normal pressure (pressure 860 to 1060 m bars )
In case any question arises from the judgment made , tests shall be conducted
In the following conditions .
Temperature ( 20 ± 2℃ )
Relative humidity ( 65 ± 5% )
2. APPEARANCE , STYLE , AND DIMENSIONS
2.1 Appearance : There shall be no defects that affect the serviceability of the product.
2.2 Style and dimensions : Shall conform to the assembly drawings .
3. TYPE OF ACTUATION : Tactile feed back
4. CONTACT APPANGEMENT : 1 pole 1 throws
(Detail of contact arrangement are given in the assembly
drawings .)
5. RATINGS
5.1 Switch Assembly : Maximum ratings DC 12V 50mA

1. GENERAL
1-1 Scope : This specification covers the requirements for single key switch which no keytop.
(Tact switch : mechanical contact)
1-2 Operating Temperature Range :
-20℃ to 70℃ (normal humidity , normal press)
1-3 Storage Temperature Range :
-30℃ to 80℃ (normal humidity , normal press)
1-4 Test Condition
Test and measurements shall be made in the following standard conditions
Unless otherwise specified.
Normal temperature ( temperature 5 to 35℃ )
Normal humidity (relative humidity 45 to 85% )
Normal pressure (pressure 860 to 1060 m bars )
In case any question arises from the judgment made , tests shall be conducted
In the following conditions .
Temperature ( 20 ± 2℃ )
Relative humidity ( 65 ± 5% )
2. APPEARANCE , STYLE , AND DIMENSIONS
2.1 Appearance : There shall be no defects that affect the serviceability of the product.
2.2 Style and dimensions : Shall conform to the assembly drawings .
3. TYPE OF ACTUATION : Tactile feed back
4. CONTACT APPANGEMENT : 1 pole 1 throws
(Detail of contact arrangement are given in the assembly
drawings .)
5. RATINGS
5.1 Switch Assembly : Maximum ratings DC 12V 50mA

1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.

2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.

3>Quick and exact lead time.

4>We have QC team for every procedure and 100% satisfaction guaranteed.

5>OEM and ODM is welcome

6>Any questions and requirements ,we will reply you within 24 hours.
