16mm rotary encoder EC16
- 100000 Piece / Pieces per Month
- Shenzhen Guangzhou
- T/T Credit Card PayPal
- LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
- EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel,Logical encoder,12 Channel encoder
- EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
- RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
- RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
- RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | USE | Model Number: | EC16-H |
Max. Current: | 10mA | Max. Voltage: | 250V | Mechanical Life: | 100000 |
Product Description

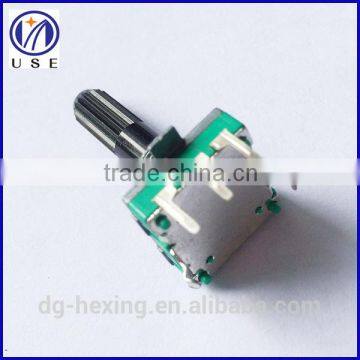

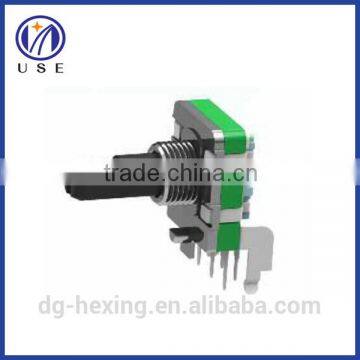

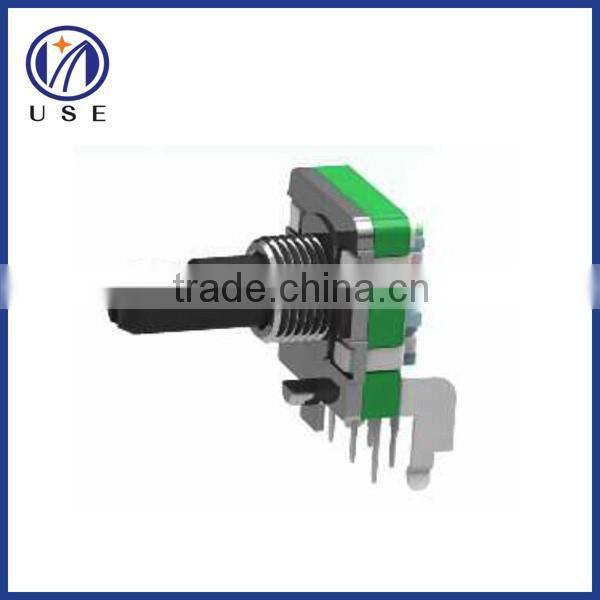

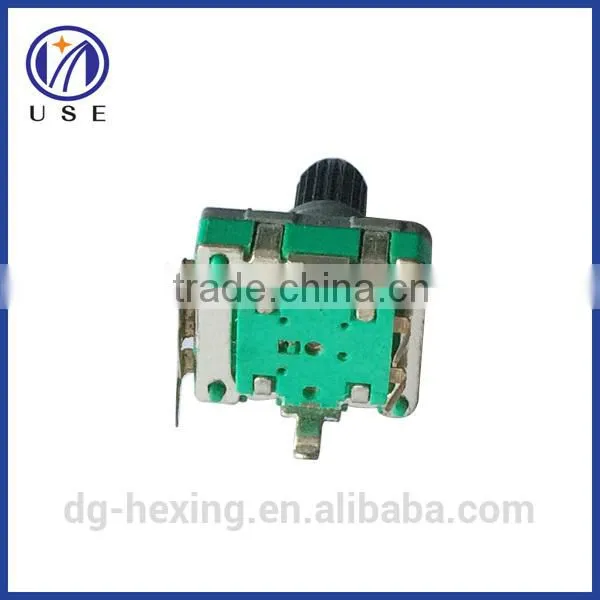

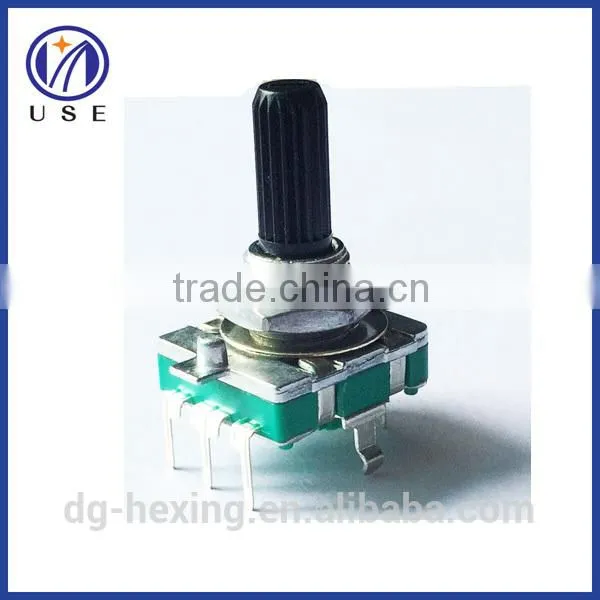

rotary encoder EC16 16mm Rotary switch for induction cooker, oven, coofee machine, etc.
rotary encoder, ec16 encoder, 16mm encoder

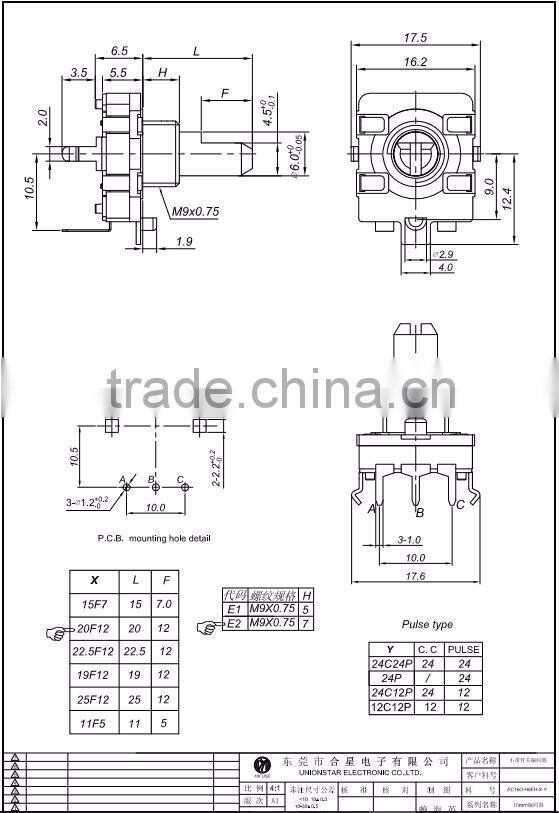

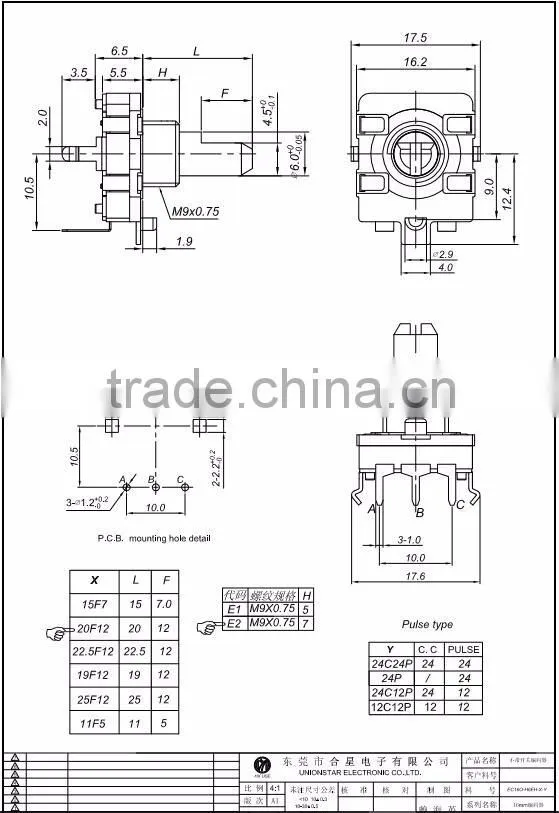

16MM encoder without horizontal switch, semi-circular plastic shaft, long-20MM, 24 pulses of 24 position, with a 7 MM threaded sleeve
|
| |
Insulated shaft rotary encoder series with 360° rotational angle. | ||
|
| |
Features: |
| |
1) Mechanical specifications: | ||
a) Total rotational angle: 360° (endless) | ||
b) Operating torque force: 30 - 200gf.cm (at 5 - 35°C) | ||
c) Push-pull strength: ≥0.51kgf.cm | ||
d) Operating temperature range: -10 - 75°C | ||
e) Rotational life: 30,000cycles (minimum) | ||
2) Electrical specifications: | ||
a) Power rating: |
| |
i) EC12/16: DC 5V, 0.5mA | ||
ii) EC11: DC 5V, 10mA |
| |
b) Insulation resistance: | ||
c) EC12/16: ≤10mOhm at DC 50V 1 min | ||
d) EC11: ≤100mOhm at DC 300V 1 min | ||
e) Withstanding voltage: | ||
i) EC12/16: for 1 minute at 50V AC | ||
ii) EC11: 1 minute at 300V AC | ||
f) Push-on switch specification: | ||
i) Switching power rating: | ||
(1) EC12/16: DC 5V, 10mA | ||
(2) EC11: DC 16V, 10mA | ||
ii) Switch contact resistance: | ||
(1) First period/100mOhm | ||
(2) 200mOhm after the end of useful life |
1400pcs in a carton
GW=10KG
Size=0.045CBMs
Deliver: FOB Shenzhen, or DHL, FedEx, UPS
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
Dongguan Unionstar Electronic Co., Ltd. was established in 2001,
located in Tangxia Town, which is the center of manufacture in Dongguan City.
We specialized in encoder, rotary encoder, rotary switch, muliti-way switch, muliti-position switch, tact switch with LED light, reset switch, zinc alloy parts, plastic parts, encoder and rotary switch parts, and finished product of fan control switch, etc. The main function are volume control, tempreture control, speed control, etc. And are wildly used in audio and video products, such as car audio, radio, speaker, DVD, guitar, amplifier, family cinema, and for home appliances, such as induction cooker, oven, microwave oven, blender, juicer, washing machine, refrigerator, cooking stove, electric water heater, dish-washing machine, fan, air cleaner, garment steamer, electric pressure cooker, bread maker, coffee machine and other small appliances, and for medicine machine, sports equipment, PCB controllers and so on.
Looking forward to have a good cooperation with you in the near future!
Application
Hong Kong HKDTC Fair in 2015
1. What's the rotary encoder?
Reply: For rotary encoder, the shaft size can custom as your design, it has 3 type shaft design, such as flat shaft, KQ shaft and R shaft, the material of shaft can be metal and plastic.
360 degree rotation with clicks, and the rotational torque can custom as your demands.
The solution is 15 pulses of 30 detents or 20 pulses of 20 detents. It's rotational life is 30000 cycles.
2, What's the function of rotary encoder?
Reply: It's good for volume control, temprerature control, speed control for most auodio and vedio equipment, such as car navigation system, car audio and vedio, DVD, DJ, multi-speakers,oven, kitchen appliances, coffee machine, juce maker, etc.
It can replace of ALPS rotary encoder.
