17mm rotary selector switch
- 100000 Piece / Pieces per Month
- Shenzhen or Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
- EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel,Logical encoder,12 Channel encoder
- EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
- RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
- RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
- RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | USE | Model Number: | RS1701-H7.7E2-15F7-1D4 |
Max. Current: | 0.3A | Max. Voltage: | DC 16V | Mechanical Life: | 30,000 cycles |
Product Description

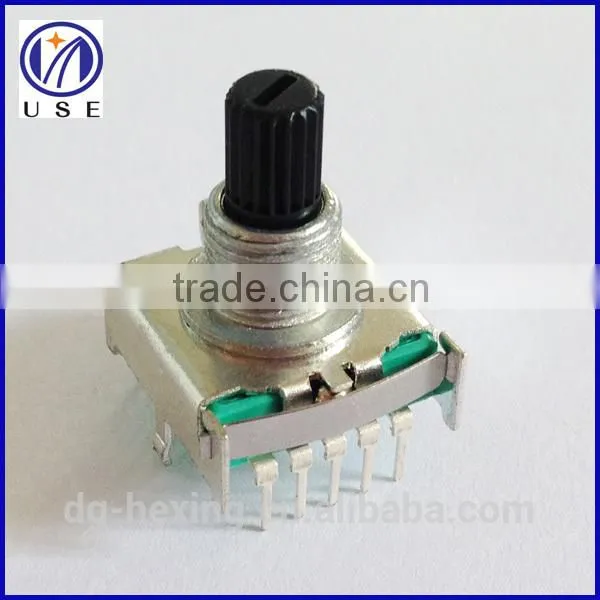

RS17 17mm 1 pole 2,3,4,5,6,7,8 position rotary selector switch for home appliances from Dongguan Unionstar Electronic Co., Ltd. on alibaba
Name: | 17mm rotary switch with 1 pole 4 position |
Brand: | USE rotary multi-position switch |
Technology: | Japan |
Part No.: | RS1701-H7.7E2-15F7-1D4 |
Rated Voltage: | DC 16V |
Operating Current: | 0.3A |
Contact Resistance: | 100mΩ Max. |
Insulation Resistance: | 100mΩ Min. |
Number of pole and detent: | 1 pole of 3 detents |
Structure: | Vertical mount , 10pin |
Each Point of View: | 30° or 45 ° |
Operating temperature: | -40° to 85° |
Sample time | within 3 workdays |
Mass production time | 7 workdays since order confirmed |
150 pcs in a styrofoam box, 1200 pcs in a carton.
GW: 6 KG/CTN
Size: 0.05 CB Ms/ CTN
FOB Shenzhen or Guangzhou
1. USE brand encoder from Japan technology.
2. Lowest price in China as lowest cost.
3. Within 3 workdays of samples , 7 workdays of mass production.
4. 5 free samples for your test.
5. Small order for your trail order is welcome.
6. 100% passed quality.
7. ISO:9001 and RoHS passed.
8. Qinck feedback in 24 hours.
Dongguan Unionstar Electronic Co., Ltd was established in 2001 in Dongguan City, Guangdong Province, China.
Specialized in encoders, rotary encoders, rotary encoder switches, multi-way rotary switches, tact switches, potentiometers,
etc. They are widely used in loudspeaker, DVD player, car audio and video, GPS, radio, coffee machine, cooker, medical equipment, sport equipment, etc. Welcome all of you to cooperate with us!
Application
Hong Kong HKDTC Fair in 2015
Factory Views
1, What's the function of rotary switch?
Reply: For the rotary switch, it widly be used for volume control, temprature control, changeover function, etc. It's widly be used for home appliance, such as oven, coffee machine, refrigrator, jucer, LED light, guitar, etc.
2, How to choose rotary switch?
Reply: For this rotary switch, it has 3 different rotational torque of it, you could choose it as your knob size and the manual feeling.
For example, if you choose a rotary switch for oven, you could choose a heavy rotational torque, such as 400gf.cm to 600gf.cm.
And if you choose a rotary switch for guitar volume control, you could choose 100gf.cm to 200gf.cm for it. For more questions about it, please contact us directly.
