Help Center16mm Rotary Switch for Home Appliances
Related Products
-
8mm Tact Switch With Red LED LightUS$ 0.1 - 1MOQ: 1000 Pieces -
8mm Tact Switch With Blue LED LightUS$ 0.1 - 1MOQ: 1000 Pieces
-
8mm Tact Switch With Chartreuse LED LightUS$ 0.1 - 1MOQ: 1000 Pieces
-
8mm Tact Switch With Orange LED LightUS$ 0.1 - 1MOQ: 1000 Pieces
-
8mm Tact Switch With Yellow LED LightUS$ 0.1 - 1MOQ: 1000 Pieces

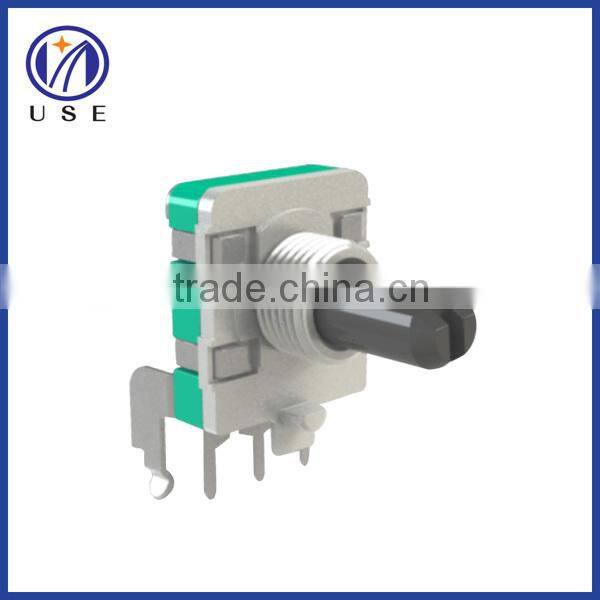

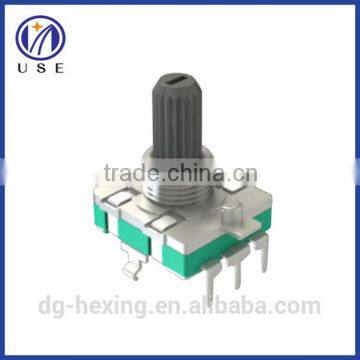

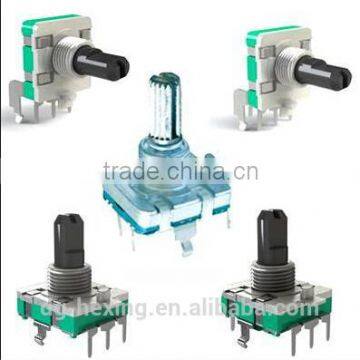

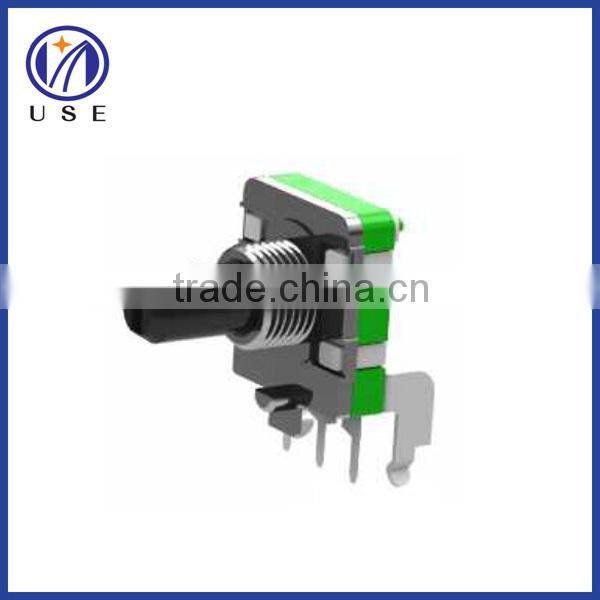

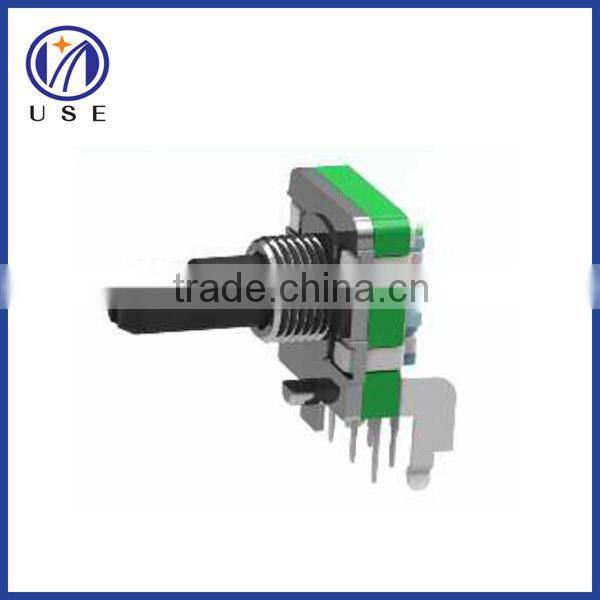

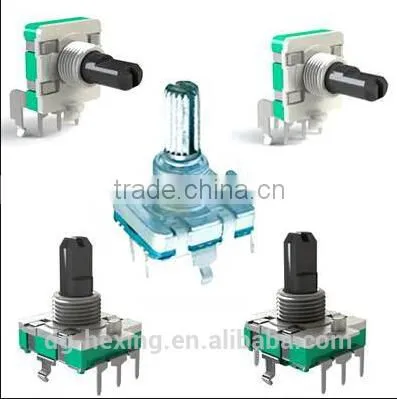

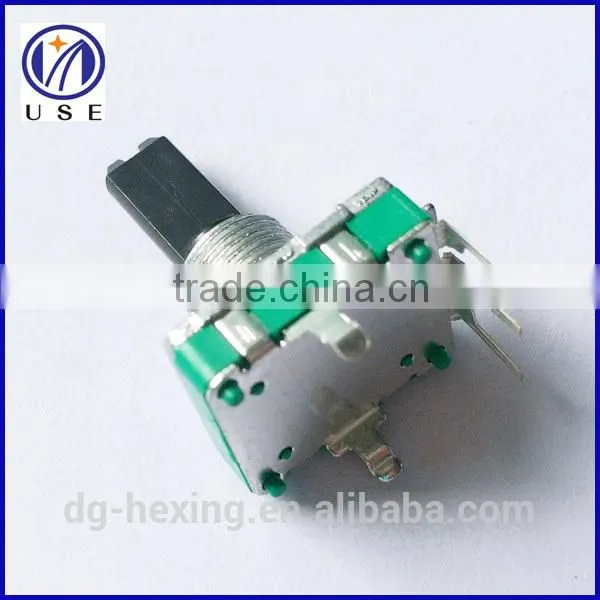

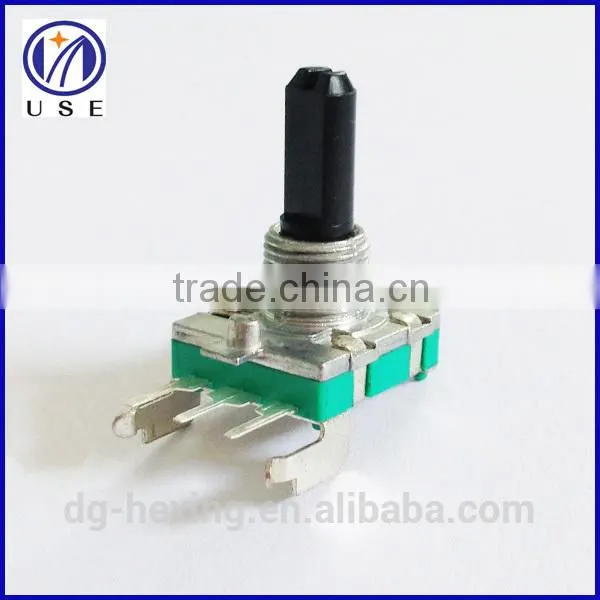

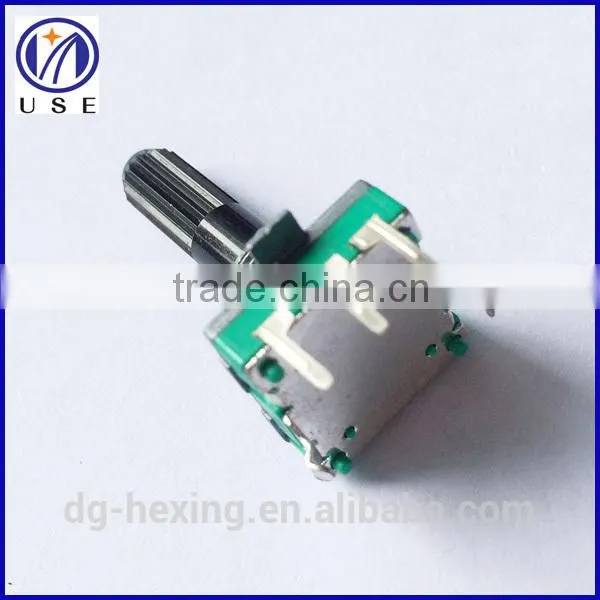

rotary encoder EC16 16mm Rotary switch for induction cooker and other cookers
16MM encoder without horizontal switch, semi-circular plastic shaft, long-20MM, 24 pulses of 24 position, with a 7 MM threaded sleeve
|
|
|
Insulated shaft rotary encoder series with 360° rotational angle. | ||
|
|
|
Features: |
|
|
1) Mechanical specifications: | ||
a) Total rotational angle: 360° (endless) | ||
b) Operating torque force: 30 - 200gf.cm (at 5 - 35°C) | ||
c) Push-pull strength: ≥0.51kgf.cm | ||
d) Operating temperature range: -10 - 75°C | ||
e) Rotational life: 30,000cycles (minimum) | ||
2) Electrical specifications: | ||
a) Power rating: |
|
|
i) EC12/16: DC 5V, 0.5mA | ||
ii) EC11: DC 5V, 10mA |
|
|
b) Insulation resistance: | ||
c) EC12/16: ≤10mOhm at DC 50V 1 min | ||
d) EC11: ≤100mOhm at DC 300V 1 min | ||
e) Withstanding voltage: | ||
i) EC12/16: for 1 minute at 50V AC | ||
ii) EC11: 1 minute at 300V AC | ||
f) Push-on switch specification: | ||
i) Switching power rating: | ||
(1) EC12/16: DC 5V, 10mA | ||
(2) EC11: DC 16V, 10mA | ||
ii) Switch contact resistance: | ||
(1) First period/100mOhm | ||
(2) 200mOhm after the end of useful life | ||
250pcs in a polyfoam box ,2000pcs in a carton.
Delivery pot: Shenzhen
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
Dongguan Unionstar Electronic Co., Ltd. was established in 2001, We have our own factory ,it's 7000 square meters, and more than 300 skilled workers. We specialized in designing, developing and manufacturing rotary encoders, the switch rotary encoders, the switch potentiometers, potentiometers, as well as plastic and hardware accessories. They are widely used for audio, car navigation system, household appliances, sport equipment and medical equipment, handheld walkie-talkie, a small intercom system center, etc. Various controls for Devices in automotive field. Controls for image/sound devices, including DVD players, mini component stereos, CD players and portable audio players.All kinds of level control, turning and timer setting in audio-visual equipment, ordinary household electric appliances, radio equipment, etc .
In order to keep improving the quality of our products, we have been awarded the certificate of ISO9001:2008, and will offer our customers the best quality products and services.
"Fine Quality Means A Brighter Tomorrow". A slogan that we believe will win a lot of trust among our customers and lead to better success in years to come!
Application
Hong Kong HKDTC Fair in 2015
1. What's the rotary encoder?
Reply: For rotary encoder, the shaft size can custom as your design, it has 3 type shaft design, such as flat shaft, KQ shaft and R shaft, the material of shaft can be metal and plastic.
360 degree rotation with clicks, and the rotational torque can custom as your demands.
The solution is 15 pulses of 30 detents or 20 pulses of 20 detents. It's rotational life is 30000 cycles.
2, What's the function of rotary encoder?
Reply: It's good for volume control for most auodio and vedio equipment, such as car navigation system, car audio and vedio, DVD, DJ, multi-speakers, etc. It can replace of ALPS rotary encoder.
