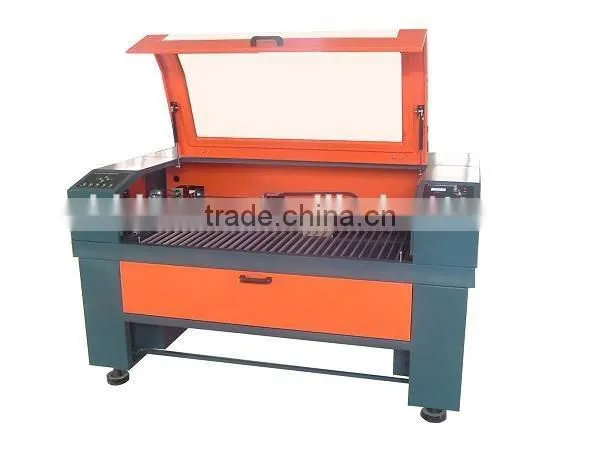

Huahai CE ISO USB interface co2 cnc laser wood cutting machine price for wood laser cutting machine
(Keywords :CO2 laser cutting machine)
Introduction of CO2 laser cutting machine :
The laser uses a beam of light as the engraving tool, so no part of the machinery actually touches the material being engraved. Laser engraving produces a permanent, crisp, highly detailed mark, engraving images and extremely fast to customize your products.
Applicable Materials CO2 laser cutting machine :
1. Applicable Materials: Acrylic, Leather, Marble, Wood, Double-color sheet, Paper, Cristal, Fabric, Rubber, ABS, Lampshade, Tile, Jade, Bamboo etc.
2. Applicable Industry: Apply to Garments, Leather, Toy, Electronic components, Craft Model, Advertisement,
Furniture, Architecture decoration, Package, Paper products etc.
Material | Cut | Engrave |
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate | Yes | Yes |
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards | Yes | Yes |
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood | Yes | Yes |
Leather, Pig leather, Cow Leather, Sheep leather | Yes | Yes |
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece | Yes | Yes |
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) | Yes | Yes |
Paper, Cardboard, Chipboard, Press Board | Yes | Yes |
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate | No | Yes |
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam | Yes | Yes |
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass | No | Yes |
Technical parameter:
Model | HC6040EC | HC1060EC | HC1390EC | HC1410EC | HC1612EC |
Working platform size | 600x400mm | 1000x600mm | 1300x900mm | 1400x1000mm | 1600x1200mm |
Laser power | 60w 80w | 80w 100w | 80w 100w 130w 150w | 80w 100w | 80w 100w |
Laser source | CO2 glass sealed laser tube / RF metal sealed laser tube | ||||
Engraving speed | 0-1000mm/s | ||||
Cutting speed | 0-500mm/s | ||||
Worktable | Aluminum Slatted work table OR Honeycomb work table | ||||
Sensitivity | <±0.025mm | ||||
Resolution | 4000DPI | ||||
Laser output control | 0-100% set by software | ||||
Supported Formats | CorelDraw X2 thru X4, AutoCAD, AI, DXF, PLT, DST, DSB, BMP, GIF, JPG, PNG, MNG, ICO CUR, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW | ||||
Min. engraving size | English letter:1.0*1.0mm | ||||
Software supported | Coreldraw, Photoshop, AutoCAD | ||||
Operation method | Computer & LED control panel | ||||
Interface | USB 2.0 | ||||
Control system | DSP | ||||
Operating System Software | Windows Xp, Windows 7 | ||||
Motor type | Stepper Motor / Servo Motor | ||||
Cooling way | Water chiller | ||||
Working environment | Temperature:0-45°C, Humidity 5-95%(No condensate water) | ||||
Power supply | 220V/110V, 50Hz/60Hz, 1Kw | ||||
Main configuration | 1set CO2 laser engraving machine | ||||
1set Water chiller | |||||
1set Air pump | |||||
1set Fan blower | |||||
Optional | Rotary device | ||||
Red dot pointer | |||||
Lifting work table | |||||
Auto-focusing device | |||||
Video on YouTube
| Packaging Detail: | Standard Wooden Case for Export |
| Delivery Detail: | 7-10 day after order confirmation |
Equipment Quality,Reliability Warranty:
1) Every machine in the detection process, through specialized testing equipment and facilities,Before machine out of our factory machine text 24 hours.
2) All of our machine have 1 year quality Warranty from customer receive machine.Company have built life-long correspondence files.
Training to Customer:
We will supply with the machine operation manual in English version.
For installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer.
User can dispatch representatives to our factory for 2-3days for training.We are responsible for training them free of charge. While all the charges including traveling charge and accommodation will be afford by the user.
Send your inquiry details in the below and click "Send" to check the price for 60W 80W 100W
150W co2 laser cutting machine !
