80W 100W 130W 150W Mid-Size USB CNC Co2 Laser Engraving Machine Price
Introduction
The laser uses a beam of light as the engraving tool, so no part of the machinery actually touches the material being engraved. Laser engraving produces a permanent, crisp, highly detailed mark, engraving images and extremely fast to customize your products.
Application Materials
1.Applicable Materials: Acrylic, Leather, Marble, Wood, Double-color sheet, Paper, Cristal, Fabric, Rubber, ABS, Lampshade, Tile, Jade, Bamboo etc.
2.Applicable Industry: Apply to Garments, Leather, Toy, Electronic components, Craft Model, Advertisement, Furniture, Architecture decoration, Package, Paper products etc.
Laser engraving cutting machine can both cutting and engraving many materials
Material |
Cut |
Engrave |
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate |
Yes |
Yes |
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards |
Yes |
Yes |
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood |
Yes |
Yes |
Leather, Pig leather, Cow Leather, Sheep leather |
Yes |
Yes |
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece |
Yes |
Yes |
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) |
Yes |
Yes |
Paper, Cardboard, Chipboard, Press Board |
Yes |
Yes |
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate |
No |
Yes |
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam |
Yes |
Yes |
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass |
No |
Yes |
Technical parameter
Model |
HC6040EC |
HC1060EC |
HC1390EC |
HC1410EC |
HC1612EC |
Working platform size |
600x400mm |
1000x600mm |
1300x900mm |
1400x1000mm |
1600x1200mm |
Laser power |
60w 80w |
80w 100w |
80w 100w 130w 150w |
80w 100w |
80w 100w |
Laser source |
CO2 glass sealed laser tube / RF metal sealed laser tube |
||||
Engraving speed |
0-1000mm/s |
||||
Cutting speed |
0-500mm/s |
||||
Worktable |
Aluminum Slatted work table OR Honeycomb work table |
||||
Sensitivity |
<±0.025mm |
||||
Resolution |
4000DPI |
||||
Laser output control |
0-100% set by software |
||||
Supported Formats |
CorelDraw X2 thru X4, AutoCAD, AI, DXF, PLT, DST, DSB, BMP, GIF, JPG, PNG, MNG, ICO CUR, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW |
||||
Min. engraving size |
English letter:1.0*1.0mm |
||||
Software supported |
Coreldraw, Photoshop, AutoCAD |
||||
Operation method |
Computer & LED control panel |
||||
Interface |
USB 2.0 |
||||
Control system |
DSP |
||||
Operating System Software |
Windows Xp, Windows 7 |
||||
Motor type |
Stepper Motor / Servo Motor |
||||
Cooling way |
Water chiller |
||||
Working environment |
Temperature:0-45°C, Humidity 5-95%(No condensate water) |
||||
Power supply |
220V/110V, 50Hz/60Hz, 1Kw |
||||
Main configuration |
1set CO2 laser engraving machine |
||||
1set Water chiller | |||||
1set Air pump | |||||
1set Fan blower | |||||
Optional |
Rotary device |
||||
Red dot pointer | |||||
Lifting work table | |||||
Auto-focusing device | |||||

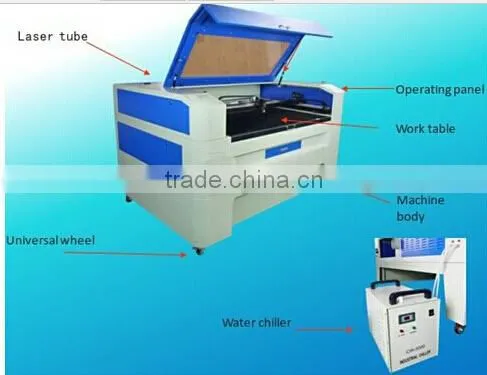

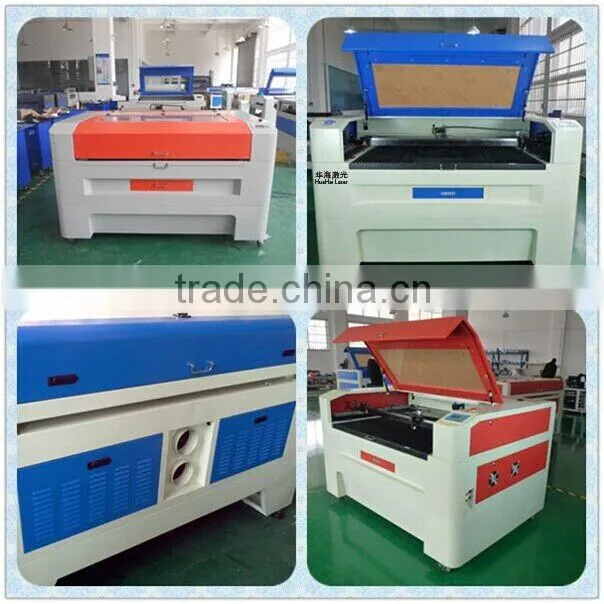

Machine Details
Samples
Company profile
Wuhan Huahai Century Laser Co., Ltd is a high-tech enterprise engaging in the development and manufacture of gas laser and solid laser. It is located in Wuhan Optical Valley of China.
With a group of high quality technical experts and personnel and backed by the environment of the favorable policies and many universities in Wuhan, Huahai explores actively, and is keen on forging ahead and constant innovation.
Warranty
a. Each machine in the detection process will pass through a specialized 24 hours continuous working testing for equipment and facilities before machine out of the factory.
b. All of Huahai laser machine out from our factory enjoy 2 year quality Warranty from the time customer receive machine. Huahai Laser Company will built life-long correspondence files for you.
After-sales Service:
1. User-friendly English manual and video CD for laser engraving machine using and maintaining
2. My company English software can do all kinds of pattern recognition, software upgrading and updating free
3. We always offer you our best service no matter when and where.
