WPL series Laboratory Intelligent Electric Heating Incubator with PID controller

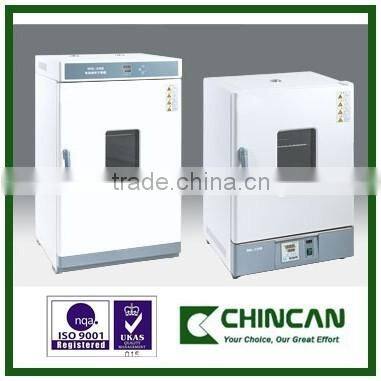

Main Picture
Characteristic for model B and BE
High accuracy, high efficiency, good safety and wide application.
Easy operation: running with data set and time set, and automatic shutdown. PID controller controls temperature accurately.
Special function key for temperature setting.
Auxiliary menu makes over-temperature alarm, deviation calibration, and menu buttons lock come true.
Vertical double air flue air-casing, forced air convection, better temperature conformity.
Adjust speed fan makes it easy to dry lightweight tiny powder sample
Forced air intake structure for fan motor cooling ensures its max working temperature less than 50℃ which lengthens the service life of fan motor.
Special characteristic for model BE
Over temperature alarm,menu buttons lock, and over-temperature protector
Specifications:
| Model | WPL-30B | WPL-45B | WPL-65B | WPL-125B | WPL-230B | |
| WPL-30BE | WPL-45BE | WPL-65BE | WPL-125BE | WPL-230BE | ||
| Application | high accuracy lab bacteria incubator | |||||
| Air circulation type | double air flues and forced convection | |||||
| Performance | temp. range | RT+5~80℃ | ||||
| temp. resolution | 0.1℃ | |||||
| temp. fluctuation | ±0.5℃ | |||||
| temp. uniformity | ±1.0℃ | |||||
| Structure | chamber material | stainless steel | ||||
| shell material | spraying cold rolled steel | |||||
| thermal insulation material | PU | |||||
| heating device | stainless steel heating tube | nichrome heating wire | ||||
| rated power | 0.15kw | 0.25kw | 0.50kw | 0.60kw | 0.70kw | |
| vent | φ28mm*1 (top) | φ28mm*2 (top) | ||||
| Controller | temp. control | model B: double rows of 4 digit digital tube, PID; | ||||
| model BE: double rows of LCD, PID | ||||||
| temp. setting | press the four keys slightly | |||||
| temp. display | model B: actual temp. is displayed by 4 digit digital tube (row 1); | |||||
| setting temp. is displayed by 4 digit digital tube (row 2). | ||||||
| model BE: actual temp. is displayed by LCD (row 1); | ||||||
| setting temp. is displayed by LCD (row 2). | ||||||
| timer | 0~9999 minutes (with timing function) | |||||
| operation function | running with data set and time set, and automatic shutdown based on setting | |||||
| program mode | optional | |||||
| additional function | deviation adjustment, menu buttons lock, power outage compensation, power outage memory. | |||||
| adjustable speed fan | fixed speed fan | |||||
| sensor | Pt100 | |||||
| Safety device | over-temperature alarm | |||||
| Specification | working size (W*D*Hmm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 | 600*500*750 |
| exterior size (W*D*Hmm) | 460*510*695 | 500*550*735 | 550*550*840 | 636*680*915 | 730*670*1220 | |
| packing size (W*D*Hmm) | 550*570*765 | 620*585*800 | 640*640*905 | 730*720*1000 | 900*800*1350 | |
| working capacity | 30L | 45L | 65L | 125L | 230L | |
| shelf load bearing | 15kg | |||||
| max shelf layer | 6 layers | 7 layers | 9 layers | 13 layers | 17 layers | |
| height between shelves | 35mm | |||||
|
Power source ( 50/60Hz)/Rated current |
AC220V/0.8A | AC220V/1.1A | AC220V/2.3A | AC220V/2.7A | AC220V/3.2A | |
| NW/GW | 33/37kg | 37/43kg | 44/49kg | 60/66kg | 94/120kg | |
| Accessory | shelf | 2pcs | ||||
| shelf bracket | 4pcs | |||||
| Optional device | shelf, RS485 port, printer, recorder, external communication, remote control, program temperature controller, wireless message alert, U disk storage. | |||||
