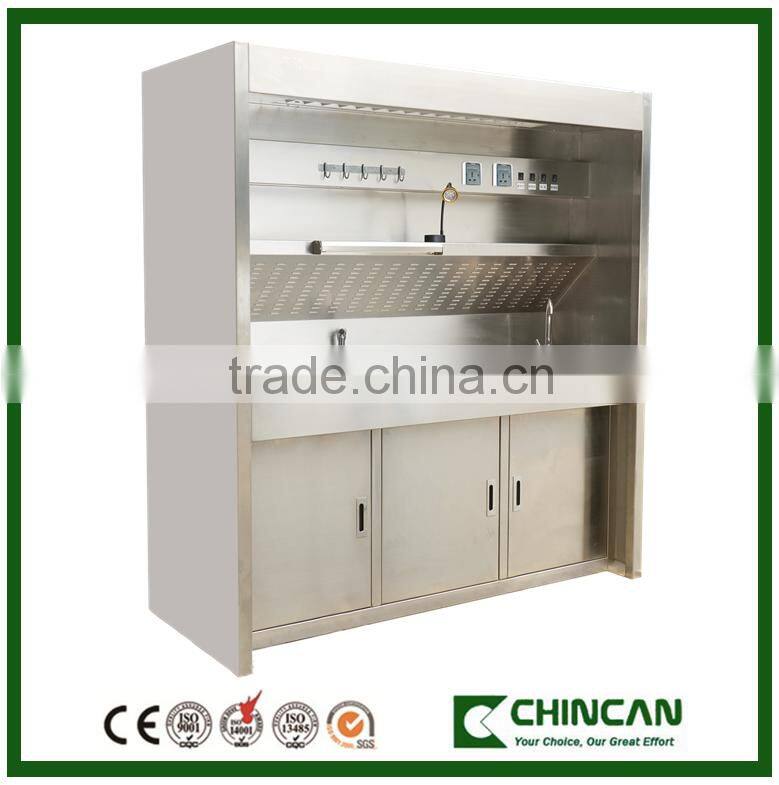

QCT-1000/1500/1800 Laboratory/Medical Pathology Workstation (CE&ISO)
Main Picture
Summary
Pathological sampling bench is widely used in hospital pathology department, pathology laboratory, etc. Reasonable ventilation system protects operator away from the harmful gas produced by the formalin during sampling. The hot & cold water system ensures it can adapt work in different climates.
Configuration

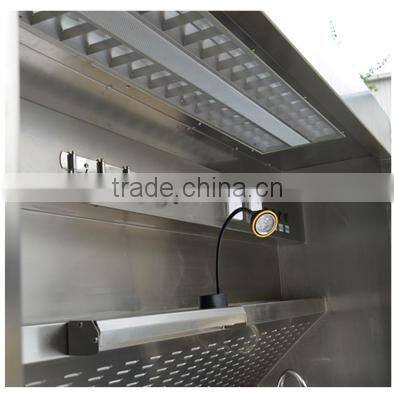

UV Light;
Fluorescent Light;
Adjustable Spotlight;
Stainless Steel Hanger;
“UV, FAN, LIGHT, PULVERIZER” Control.
Suction Inlet
Suction inlet adopts louver-type. The upper mouthing structure ensures above blower suction, avoiding air back-streaming.

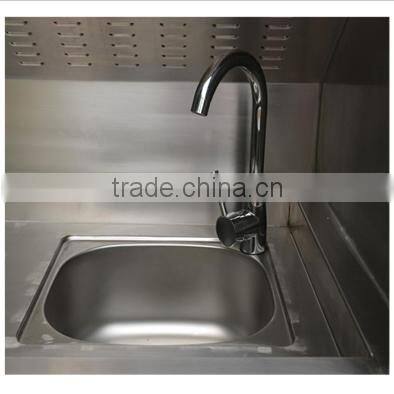

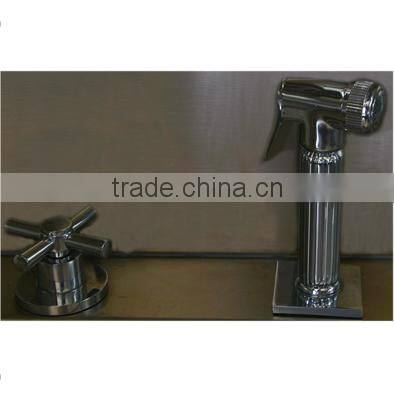

Water Tap & Sink
Stainless steel;Whole-structure.
Auto Flushing Design
Automatic flushing device, slightly right-side slope worktable, easy to waste discharge and cleaning.

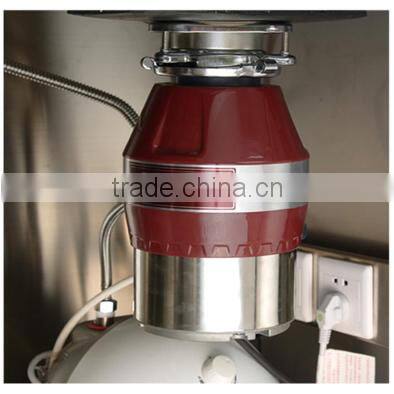

Pulverizer (Optional)
Completely smash the waste during test, to avoid blocking drainage pipes.
ADVANTAGE
1. Odor-remove function.
2. Single water sink, two-person operations.
3. Exhaust air system: High-power suction device, low noise.
4. Optional water heater is available, realizing hot & cold water adjustment.
5. The base cabinet is inward-concave type, convenient for sitting operation.
6. Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes.
7. Automatic flushing device, slightly right-side inclined worktable, easy for waste discharge and cleaning.
Parameters
Model |
QCT-1000 |
QCT-1500 |
QCT-1800 |
||
External Size (W*D*H) |
1000*750*1950mm |
1500*750*1950mm |
1800*750*1950mm |
||
Working Area Size (W*D*H) |
895*430*900mm |
1395*430*900mm |
1695*430*900mm |
||
Work Surface Height |
900mm |
||||
Consumption |
470W |
520W |
550W |
||
Optional water heater |
1500W |
||||
Power Supply |
110V/220V±10%, 50/60HZ |
||||
Exhaust Airflow Volume |
1150-1250m3/h |
||||
Material |
Main Body |
304 stainless steel, thickness 1.2mm |
|||
Work Table |
304 stainless steel, thickness 1.5mm |
||||
Standard Accessories |
Spotlight; UV lamp; Fluorescent lamp; Exhaust system; Auto flushing device; Stainless steel hanger; Adjustable hot and cold water tap; 180mm deep stainless steel water sink, funnel with filter. Active carbon filter |
||||
Optional Accessories |
Pulverizer, Electrical water heater, Automatic induction hand dryer, Eye washer, Camera. |
||||
Standard Accessories
Spotlight 1pc
UV lamp 1pc
Fluorescent lamp 1pc
Exhaust system 1pc
Auto flushing device 1pc
Stainless steel hanger 1pc
Adjustable hot and cold water tap 1pc
180mm deep stainless steel water sink, funnel with filter 1pc
Active carbon filter 1pc
Optional Accessory
Pulverizer
Electrical water heater
Automatic induction hand dryer
Eye washer
Camera
