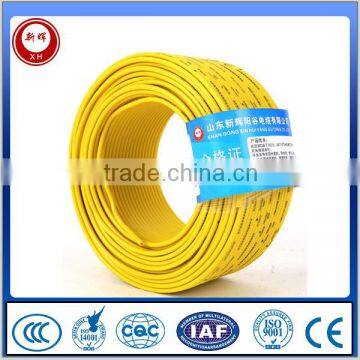

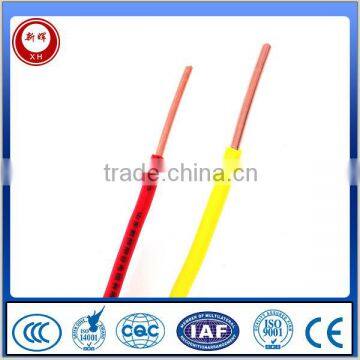

Single core 1.5 mm 2.5 mm 4 mm 6 mm Copper Electrical Wire BV BVV BVVB BVR US $0.01-60 / Meter
pure copper pvc sheath power cable Specifications and main electrical specification
1.The laying temperature is ≥0℃
2.The long-time working temperature of core-wire is ≤70℃PVC, or ≤90℃ PE.
3.The minimum curved radius
a.The curved radius should be not less than 6times of external diameter if the cables is without the armour layer.
b.If cables are with armour or copper tape screened structure, its curved radius should be not less than 12 times of external diameter.
c.If flexible cables are with screened layer structure, its external diameter is not less than 6 times of external diameter.
4.Finished cables can stand the test of alternating current 50Hz,3000V,5min pressure proof, and be not breakdown.
nductor direct-current resistance conforms to the standard rules of GB/T3956-2008<<The conductor of Cables>>.
pure copper pvc sheath power cable Processing flow:
Wiredrawing----Extruding insulation----cabling----test-----packing

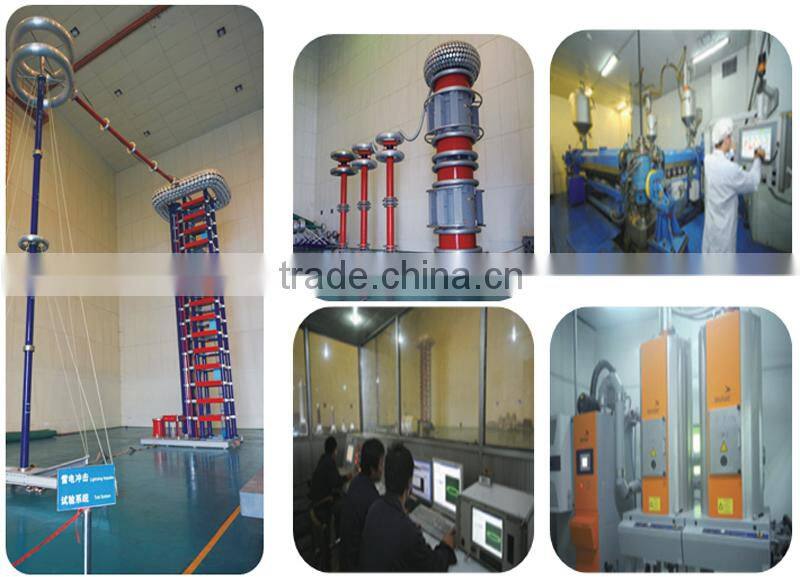

pure copper pvc sheath power cable Imported Equipment
pure copper pvc sheath power cable Text equipment

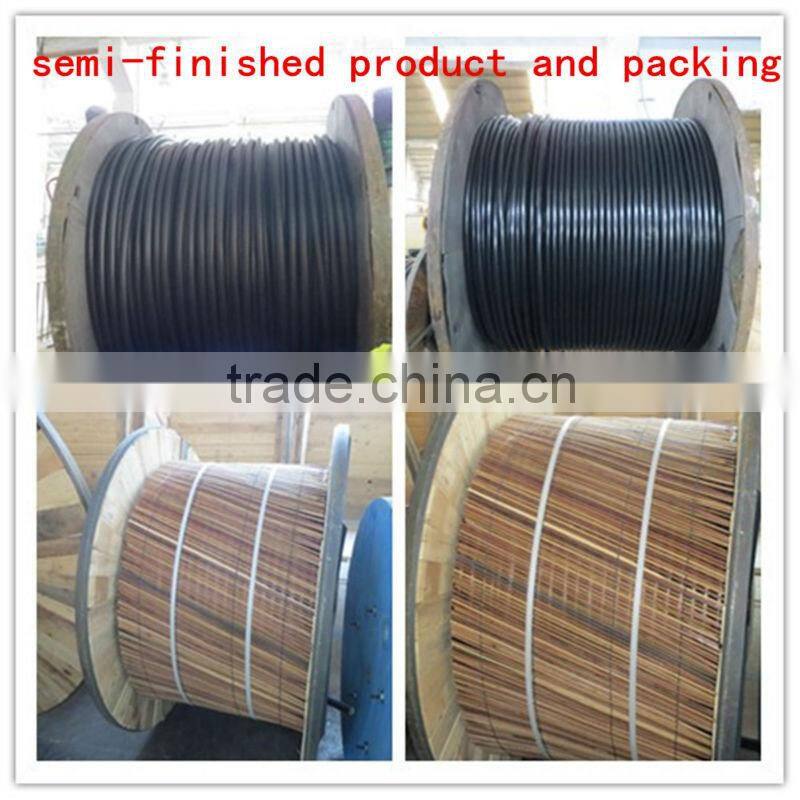

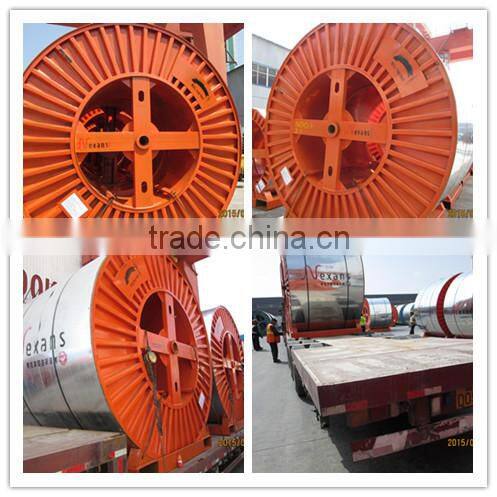

pure copper pvc sheath power cable Packaging:iron plate or wooden case,Can also according to the customers request
Shiping:According to customers request
