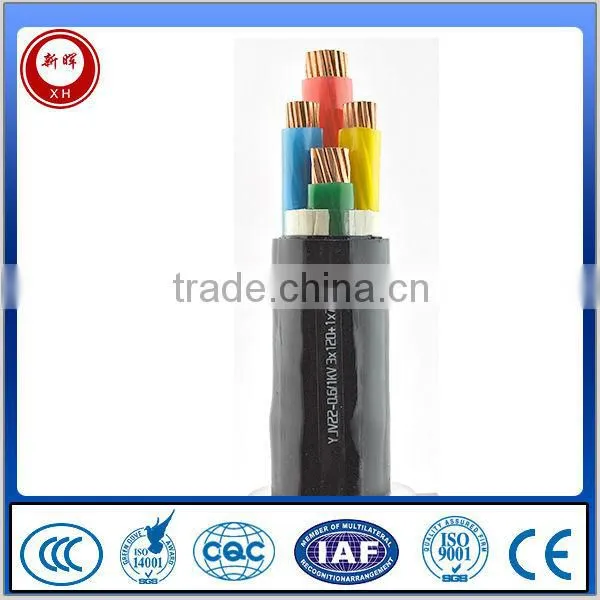

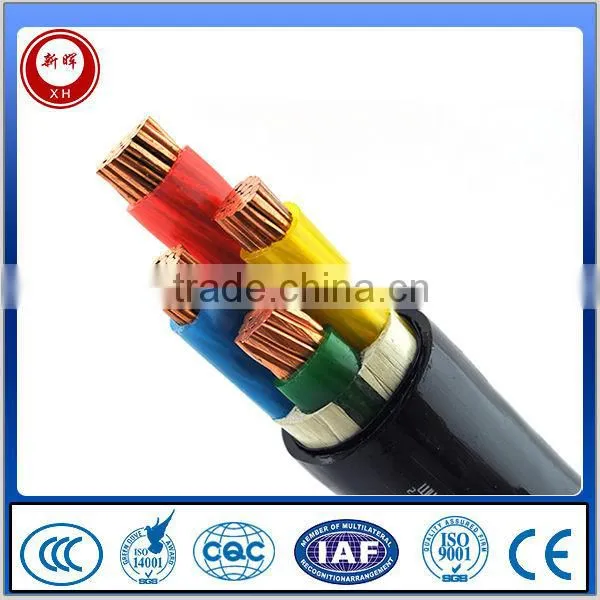

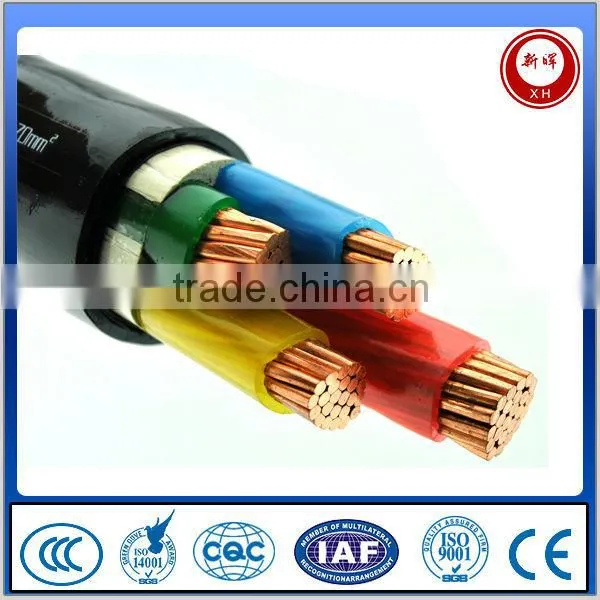

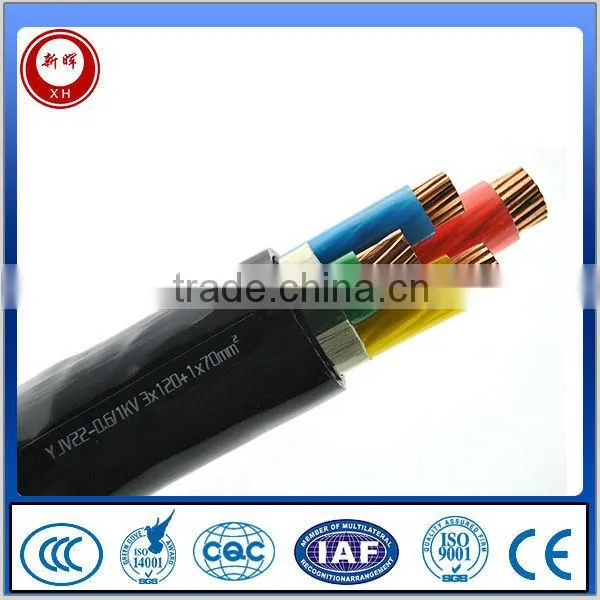

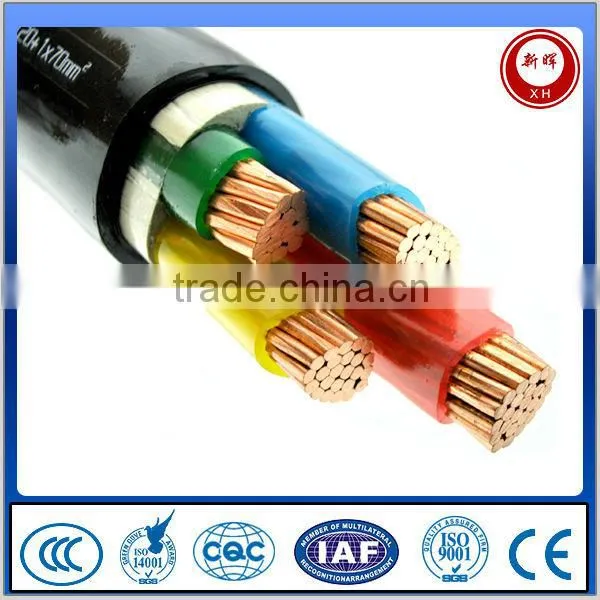

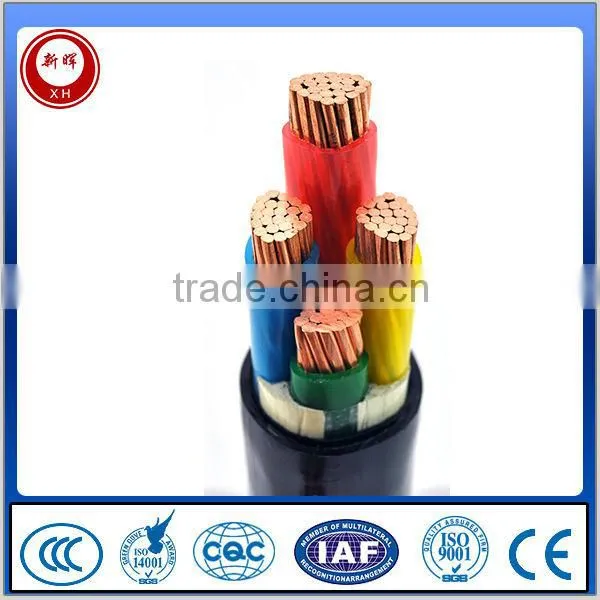

PVC Insulated Copper Conductor Steel Wire Armoured Power Cable 4 Cores 10mm
copper wire prices specifications
CROSS SECTION AREA:
0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² etc.
wiring electrical main characteristics
1). Single or multiple cores PVC insulated
2). AC 450/750V
3). Model: 0.75-240mm²
4). Rated temperature: 65~75°C
5). CCC IEC ISO (IEC 60227-1:2007)
6). Design and manufacture according to the requirements of customers.
BV/RV Specification
|
Code Designation by IEC |
Code Designation by GB |
Voltage |
Products Name |
Constructions |
Maximum conductor temperature |
60227 IEC 01 |
BV |
450/750 V |
Single-core non-sheathed cable with rigid conductor for general purposes |
Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 02 |
RV |
450/750 V |
Single-core non-sheathed cable with flexible conductor for general purposes |
Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 05 |
BV |
300/500 V |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C |
Cl.1 Solid Copper Conductor, PVC/C Insulation |
70 °C. |
60227 IEC 06 |
RV |
300/500 V |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor t emperature of 90 °C |
Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation |
90 °C. |
60227 IEC 07 |
BV-90 |
300/500 V |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90 °C |
Cl.1 Solid Copper Conductor, PVC/E Insulation |
90 °C. |
60227 IEC 08 |
RV-90 |
300/500 V |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C |
Cl.5 Flexible Stranded Copper Conductor, PVC/E Insulation |
90 °C. |
60227 IEC 10 |
BVV |
300/500 V |
Light PVC Sheathed Cable |
Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation, PVC/ST5 Sheathed |
70 °C. |
60227 IEC 52 |
RVV |
300/300 V |
Light PVC Sheathed Cord |
Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed |
70 °C. |
60227 IEC 53 |
RVV |
300/500 V |
Ordinary PVC Sheathed Cord |
Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed |
70 °C. |
RVVP |
300/300V |
Copper cable with PCV insulation and sheathed for copper braid screened |
CI.5 Flexible Stranded Copper Conductor, PVC Insulation, Copper braid screened, PVC sheathed |
70 ° |
Main function: The products are used for the computer and similar electronic equipment to transfer signal and control.
Specification:The laying temperature can't be less than 0℃, and curved radius isn't less than 10 times of external diameter of cables.
all kinds of power cablespecifications
1.3+2 core
2. Low-Voltage
3. 0.6/1KV
4. 3x70+2x35mm2
all kinds of power cable main applications
1.transmission and distribution lines of rated voltage up to and including 0.6/1kV
2.accordant with GB/T12706-2008[Power cables extruded insulation and their accessories of rated voltages 1kV(Um=1.2kV)up to 35kV(Um=40.5kV)]and IEC60502 [Extruded insulation power cables and appendices for rated voltages 1kV(Um=1.2kV)up to 30kV(Um=36kV)].
all kinds of power cable Properties
1 Max. continuous operating temperature of conductor is 70℃.
2 Short (the longest duration of no more than 5s) maximum operating temperature of cable conductor is:
cross-section ≤ 300 mm2, 160 ℃; cross section> 300 mm2, 140 ℃.
3 The installation temperature should not over 0℃,if the ambient temperature is lower than 0℃,the
cable should be preheated ,the bending radius of cable should not less than 10-20 times .
Item |
Name |
Laying occasion |
|
Copper core |
Aluminum core |
||
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
Laying in indoors,tunnel and pipe |
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
|
YJV22 |
YJLV22 |
XLPE insulated steel tape armoured PVC sheathed power cable |
buried-pipe laying, not suitable for pipe |
YJV23 |
YJLV23 |
XLPE insulated steel tape armoured PE sheathed power cable |
|
YJV32 |
YJLV32 |
XLPE insulated light steel wire armoured PVC sheathed power cable |
Laying in the riverbed of rivers or shallow sea,as the connection line of across the river or oil,gas plate, also can be used for the high head area in land |
YJV33 |
YJLV33 |
XLPE insulated light steel wire armoured PVC sheathed power cable |
|
YJV42 |
YJLV42 |
XLPE insulated heavy steel wire armoured PVC sheathed power cable |
|
YJV43 |
YJLV43 |
XLPE insulated heavy steel wire armoured PE sheathed power cable |
|
all kinds of power cable factory pictures
all kinds of power cable equipment in our factory
all kinds of power cable laboratory equipment
all kinds of power cable certificate
Kindly contact us if any questions,.Pls contact us directly!
