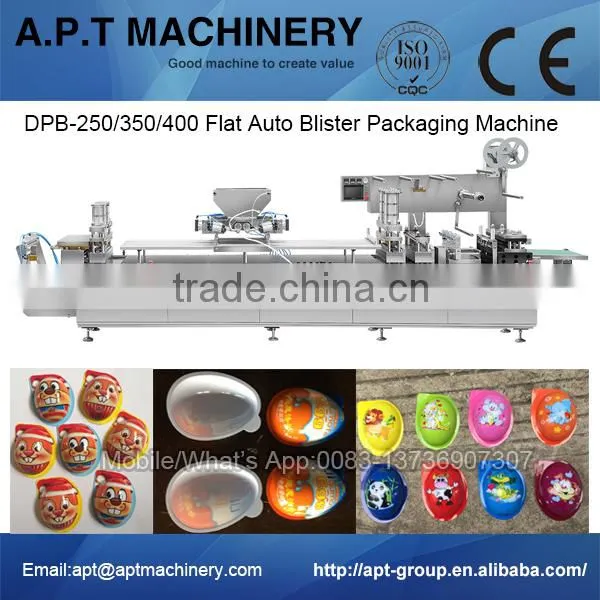

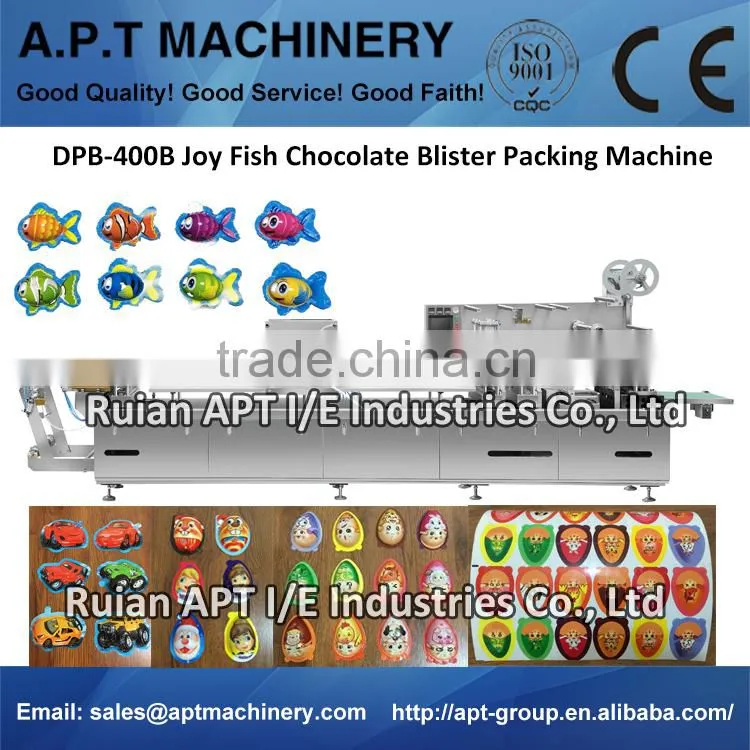

DPB-400B Complete Kinder Joy Egg with Toy Blister Packaging Machine for Cookies&Chocolate, Automatic Blister Packing Machine
1) Application:
This machine is special designed for making kinder joy egg with chocolate, biscuit and toy automatically.
2) Working Process:
Plastic Sheet (PET/PVC/HIPS) Heating----Egg Tray Thermoforming---Honey/Jam/Chocolate Filling ----Aluminum Foil/Plastic Film Hot-Sealing---Impress---Servo Traction--- Cutting---Transport Final Product Out Automatically.
3) Main Technical Parameter:
Model |
DPB-400B |
Running Speed |
20-30 cycles/min (If the forming height is more than 26mm, the speed will be lower) |
Max. Forming Area |
400x180mm |
Max. Forming Depth |
25mm (can desigend to 50mm) |
Stroke |
40-180mm |
Air Pressure |
0.4-0.6MPa |
Air Consumption |
0.3m³/min |
Heating Power |
2.5KW*3pcs=7.5KW |
Main Motor Power |
2.2KW |
Lower Film Material (Rigid Film) |
PET, PVC, PS Sheet |
Lower Film Material Thickness |
0.15-0.5mm x 410mm |
Upper Film Material |
Aluminum foil(PTP): 0.02-0.035mm x 410 |
Dialysis Paper: 50-100g x 410mm | |
Upper Film Material Thickness |
0.06-0.08mm |
Power Voltage |
380V/50HZ |
Machine Dimension |
4500x820x1600mm(L/W/H) |
Machine Weight |
3000kg |

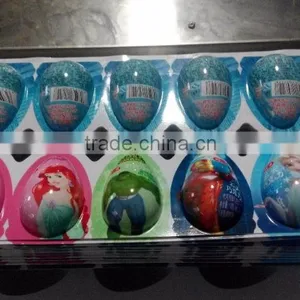

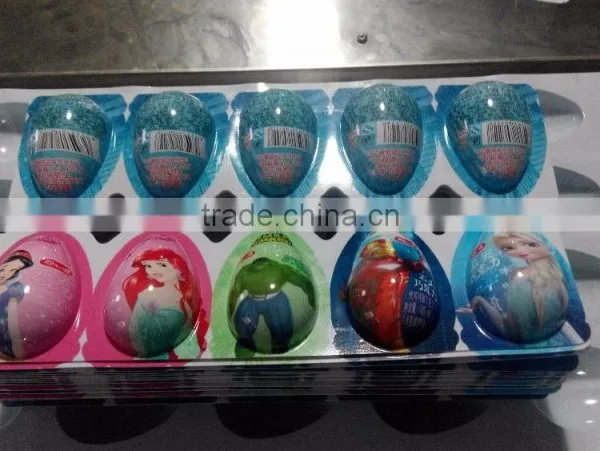

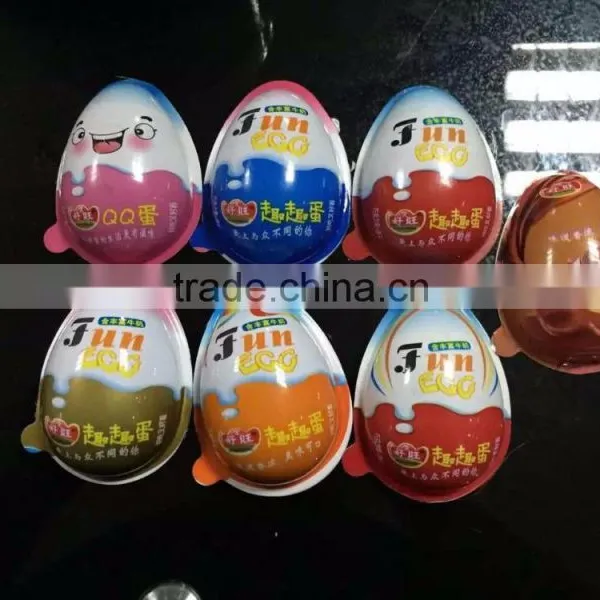

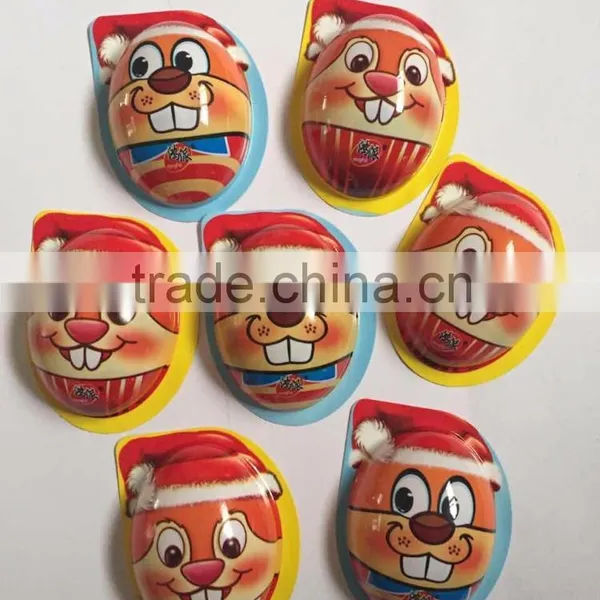

Samples:
DPB-400B Chocolate & Biscuit Blister Packing Machine Car Shape:
/watch?v=KyxcX2kuJtk
Manufacturer of Automatic Chocolate Blister Packing Machine:
/watch?v=0-JSJkub_JE
Automatic Kinder Joy Egg Production Line:
/watch?v=oqQjF-WVrHM
Big Kinder Joy Egg Blister Packaging Machine Spider-man:
/watch?v=XFtj6NE8gDE
