Honey Jam Chocolate Cheese Automatic Blister Packing Machine
- NINGBO PORT
- T/T Credit Card
You May Like
-
Candy Biscuit Chocolate Blister Automatic Packaging Machine Manufacturer
-
Good Performance Chocolate Cheap Blister Packing Machine
-
Automatic Fruit Vacuum Packaging Machine in Tray Packaging With Rigid Film
-
Factory Price Thermoform Vacuum Packing Machine for Seafood With High Capacity BD-420E
-
Fully Automatic Seafood Vacuum Packing Machine, Vacuum Packing Machine in Tray Packing Machine
-
Price for High Speed Vacuum Packing Machine for Injector
Product Details
| Condition | New | Application | Beverage, Food, Medical | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380V/220V/440V, 60HZ, 3 Phase | Power | 10KW | |
| Place of Origin | Zhejiang, China | Brand Name | APT | |
| Model Number | DPB-400 | Dimension(L*W*H) | 4500 x 820 x 1600mm (L/W/H) | |
| Weight | 3000kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DPB-400 Automatic Jam/Chocolate Cream/Coffee Powder Small Cup Forming Filling Sealing Machine
1) Application:
This machine is special designed for packing jam/chocolate/butter/honey/cheese automatically.
2) Working Process:
Plastic Sheet (PVC/HIPS) Heating----Tray Thermoforming---Honey/Jam/Chocolate/Cheese Filling ----Aluminum Foil/Plastic Film Hot-Sealing---Impress---Servo Traction--- Cutting---Transport Final Product Out Automatically.
3) Main Technical Parameter:
Model | DPB-400 |
Running Speed | 20-30 cycles/min (If the forming height is more than 26mm, the speed will be lower) |
Max. Forming Area | 400x180mm |
Max. Forming Depth | 25mm |
Stroke | 40-180mm |
Air Pressure | 0.4-0.6MPa |
Air Consumption | 0.3m³/min |
Heating Power | 2.5KW*3pcs=7.5KW |
Main Motor Power | 2.2KW |
Lower Film Material (Rigid Film) | PET, PVC, PS Sheet |
Specification of Lower Film Material Thickness (Rigid Film) | Thickness: 0.15-0.5mm; Width: 410mm |
Specification of Upper Film Material | Aluminum foil(PTP) : 0.02-0.035mmX 410mm |
Dialysis Paper: 50-100gX: 410mm | |
Power Voltage | 380V/50HZ |
Machine Dimension | 4500x820x1600mm(L/W/H) |
Machine Weight | 3000kg |

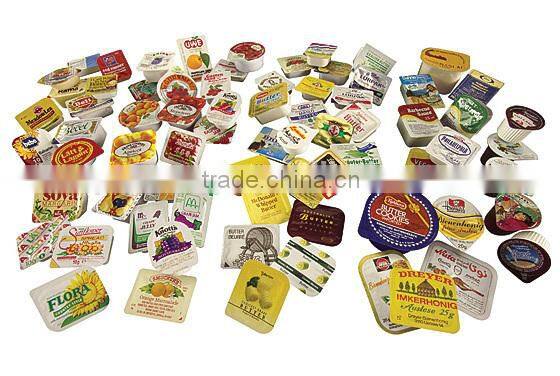

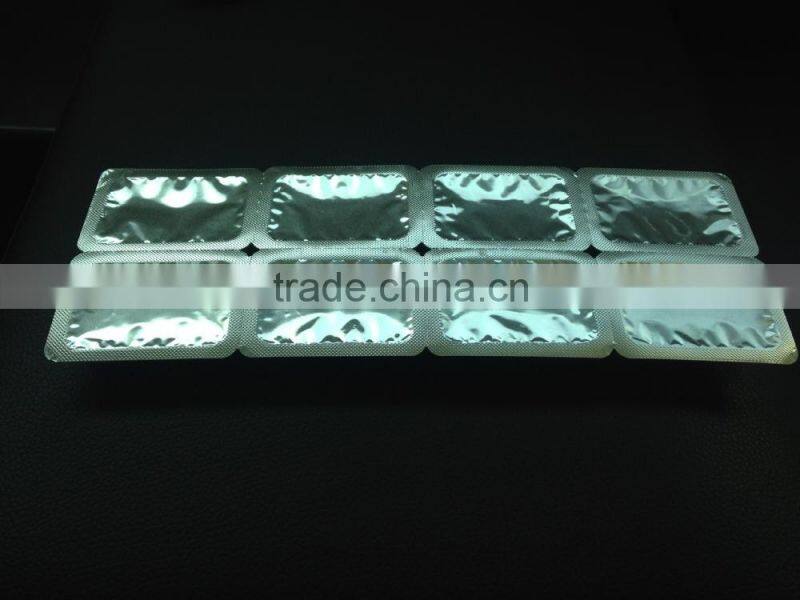

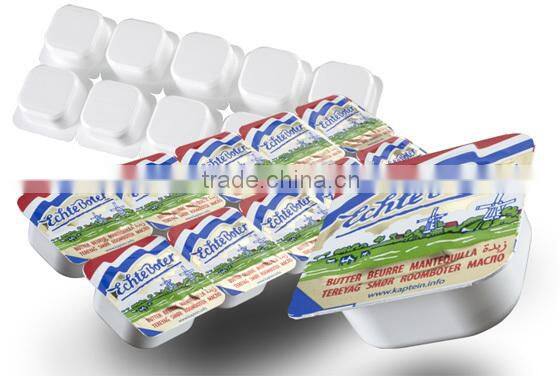

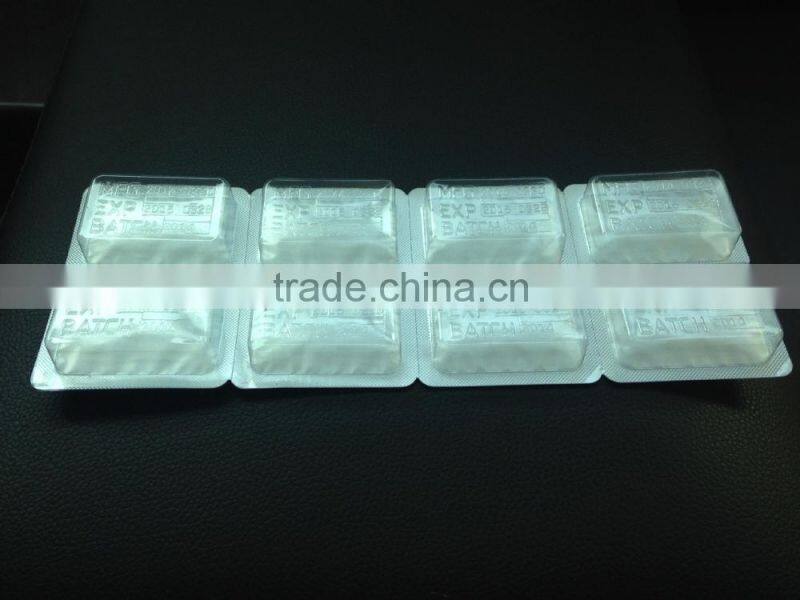

Samples:
The above machine photo is for reference. We will special design the filling system according to customer's products and request!
/watch?v=0-JSJkub_JE
