Help CenterHigh Speed Cold-Drinking Paper Cup Machine(APT-12/22 )
Related Products
-
APTD-12/22 PLC Controlled Paper Cup Making Machine (Forming-Counting-Stacking Inline)US$ 25,000 - 35,000MOQ: 1 Set -
Paper Cup Making Machine With Stacking and CountingUS$ 25,000 - 35,000MOQ: 1 Set
-
China Printing Machine for Paper CupUS$ 20,000 - 30,000MOQ: 1 Set
-
High Speed Extrusion Lamination Machine(APTL800-1800 )US$ 20,000 - 50,000MOQ: 1 Set
-
Paper Laminating Machine for Paper Cup Production LineUS$ 20,000 - 50,000MOQ: 1 Set
Features:
APT-12/22 high speed paper cup machine is our latest machine, which is made by us base on our manufacturing experience and advanced technology from oversea countries; it is pioneer equipment in China. Three turnplates system is replaced by two turnplates system which is for paper cup bottom forming and mouth curling, so that the timing was reduced, the machine runs steadily and fastly, finished cup with good quality, waste percentage reduced, it is especially good for making tall paper cups. It the best choice for making paper cups.
Main Technical Parameters:
Paper Cup Volume |
4-9(ounce) |
12-16(ounce) |
18-24(ounce) |
Paper Material |
190-500g/m2 |
190-500g/m2 |
190-500g/m2 |
Running Speed (pcs/min) |
60-80 |
70 |
55-65 |
Total Power |
380V 50Hz 9Kw |
380V 50Hz 9Kw |
380V 50Hz 9Kw |
Air Consumption |
0.4m3/min |
0.4m3/min |
0.4m3/min |
Weight(Kg) |
2200 |
2200 |
2200 |
Dimension(m) |
2.8×1.6×1.6 |
2.8×1.6×1.6 |
2.8×1.6×1.6 |

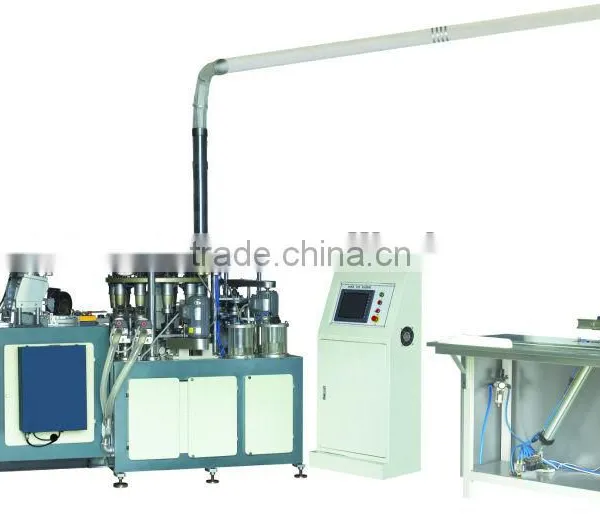

Products Photos:
