Usage:

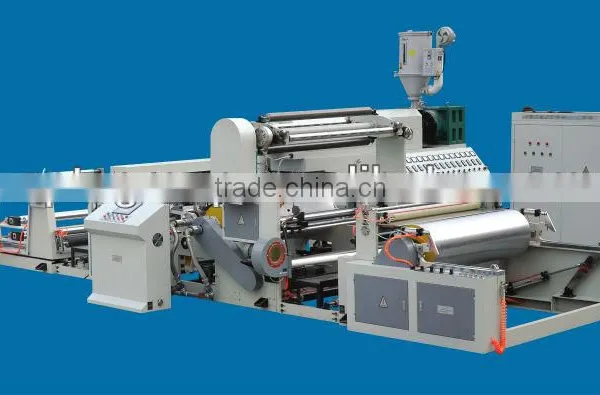

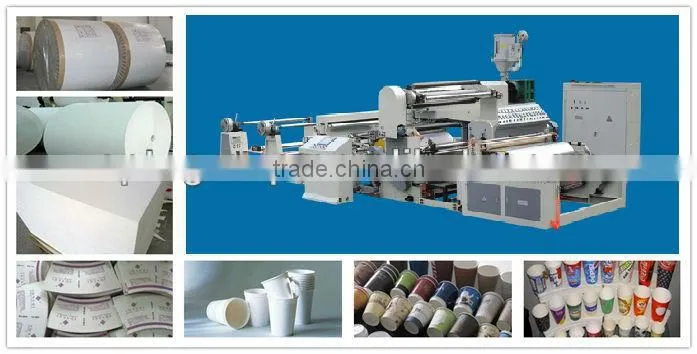

APTL800-1800 High Speed Extrusion Lamination Machine is used to laminate PE film onto different kind of sheets, such as paper sheet roll, plastic sheet roll, non-woven cloth sheet roll, aluminum foil roll into double-layer, three-layer or multi-layer compounded new sheets. Such compounded sheets are widely used for making different of products, such as packagers for cement, chemical products, forage, food and medicine, paper cups/bowls, EPS fast food containers and etc.
It is a healthy environmental coating laminating machine and paper-plastic composition unit (non-adhesive composition equipment). It has functions of feeding, drying, surface processing, compounding, edge-slitting, edge-absorbing and rewinding. And it adopts advanced technologies, such as photo-electricity tracking, electric-flower processing, highest speed, digital display of material's length, automatic eternal tension, temperature control, etc.
Main Technical Parameters:
Model |
APTL -800 |
APTL-1100 |
APTL-1300 |
APTL-1600 |
APTL-1800 |
Die Head Width |
900mm |
1200mm |
1400mm |
1800mm |
2000mm |
Finished Sheet Width |
400-700mm |
500-1000mm |
600-1250mm |
600-1500mm |
900-1700mm |
Max. Coating Speed |
80-110m/min |
80-100m/min |
80-110m/min |
60-110m/min |
60-110m/min |
Coating Thickness |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
Screw Dia. And L/D Ratio |
ø80mm×30 |
ø95mm×30 |
ø105mm×30 |
ø112mm×32 |
ø140mm×32 |
Max. Winder and Unwinding Dia. |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
Dimension |
9.6×6.0× |
9.6×7.0× |
9.6×8.0× |
9.6×9.0× |
9.6×1.2× |
Installed Power |
60kw |
70kw |
80kw |
100kw |
130kw |
Press/ Cooling Mirror Roll |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
Suitable Material |
BOPP, BOPET, BOPA, CPP, CPE, PAPER ALUMINUM FOIL Sheet Rolls |
||||
