Usage:

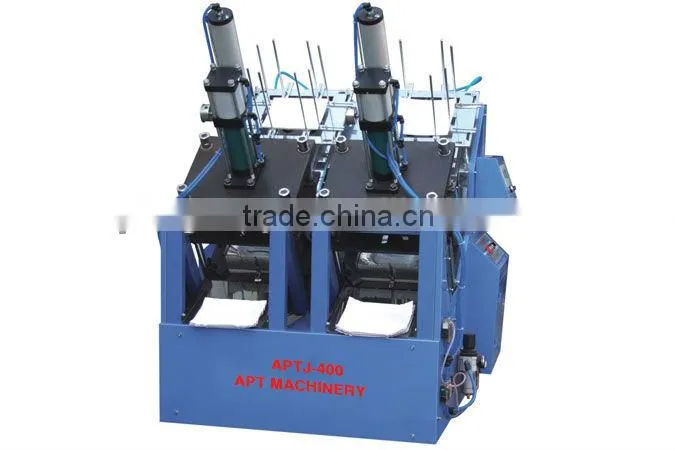

APTJ-400 Model Medium-speed Automatic Paper Plate/dish/tray Forming Machine is developed and researched by our professional engineering team in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model APTJ-400 medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to 5Ton ,Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design .
Standard APTJ-400 Paper plate machine has two working stations, each station install one set of mold and each station has separately PLC digital control and electric control.

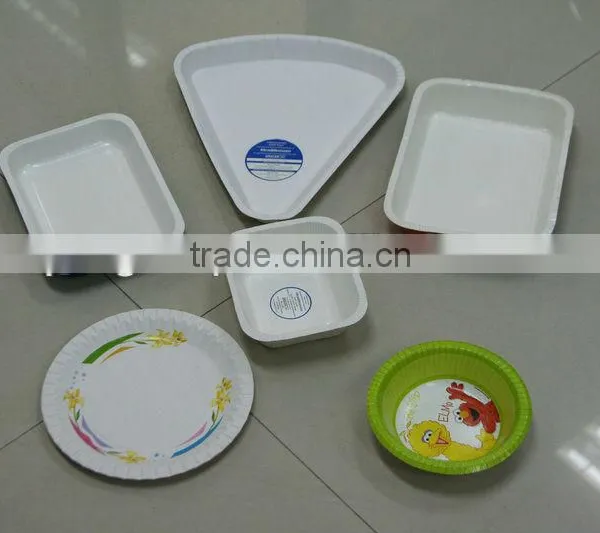

It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
Main Technical Parameters:
HS. Code: 8441309000
Paper Plate Size : 5--11 inch (mold exchangeable);
Raw Material : Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or others;
Suitable paper weight : 100--500 gsm (gram a square meter);
Rated Productivity: 60--80 piece/minute (total two stations, about 3600--4800pcs per hour);
Total Power : 3 KW;
Power Source : 220V 50Hz or other required;
Total Weight : 600 Kg;
Package Size (L x W x H) : 1.43m x 1.6m x 1.9m ;
Air Source: Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air compressor);
If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Pressurizing Air Cylinder Technical Specification:
MPT-63-150-5T-10;
Air flow volume: 0.8 cubic/min;
Air Pressure: 0.6-0.8Mpa;
Air cylinder stroke:150mm;
