Usage:

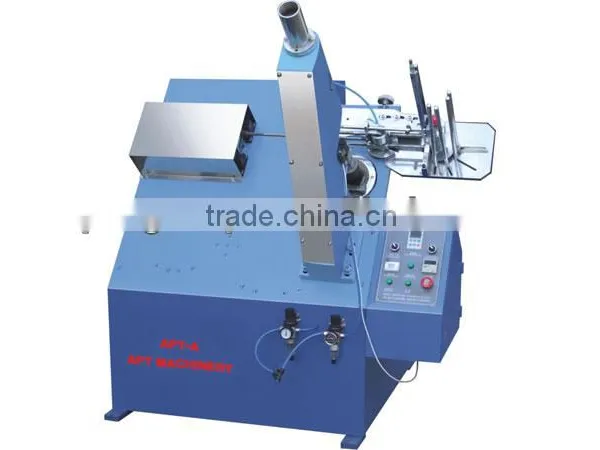

Model APT-A Full Automatic Paper Cake Tray Forming Machine is a self-innovating equipment after assimilating the technology from Italy, it is a first-class equipment at home and abroad with the advantages of simple structure, easy operation, fast production efficiency and reliable performance.
It has the advanced technology such as pneumatic manipulator-collect controlling paper, auto separating paper, mold punching-forming by heat, trays discharging etc.
Easy exchanging molds to make different sizes paper trays and aluminum foil trays.

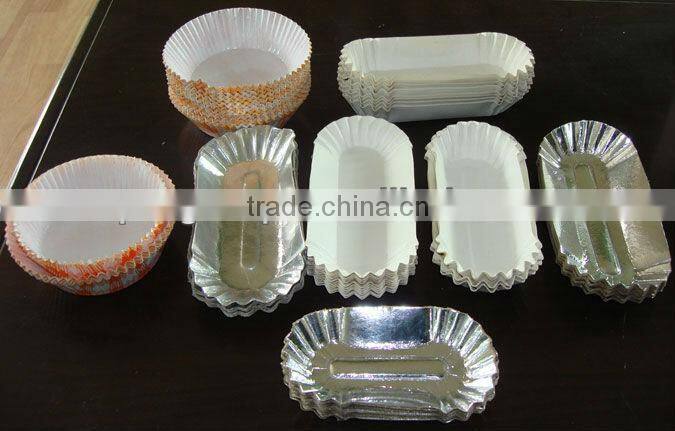

It is a ideal equipment of making paper cake trays, paper food trays, paper cake cups, paper food dishes, cake plates, cake dishes and containers etc.
Main Technical Parameters:
HS. Code: 8441309000
Raw Paper Size : Φ50--Φ120 mm (open paper) (mold exchangeable);
Raw Material : Anti-oil paper(Greaseproof paper), aluminum foil paper or other;
Suitable paper weight : 15gsm--80gsm;
Rated Productivity : 20--40 beat/minute, 15--35 pcs/beat;
Total Power : 2.5 KW (motor1.5kw, heating 1kw);
Power Source : 220V 50Hz or other required;
Total Weight : 500 Kg;
Package Size (L x W x H) : 1580 x 1480 x 1800 mm;
Working Air Source : Air Pressure: 0.6Mpa,
Air Out-put : 0.3 m3/min
Need to buy an air compressor.
