Usage:

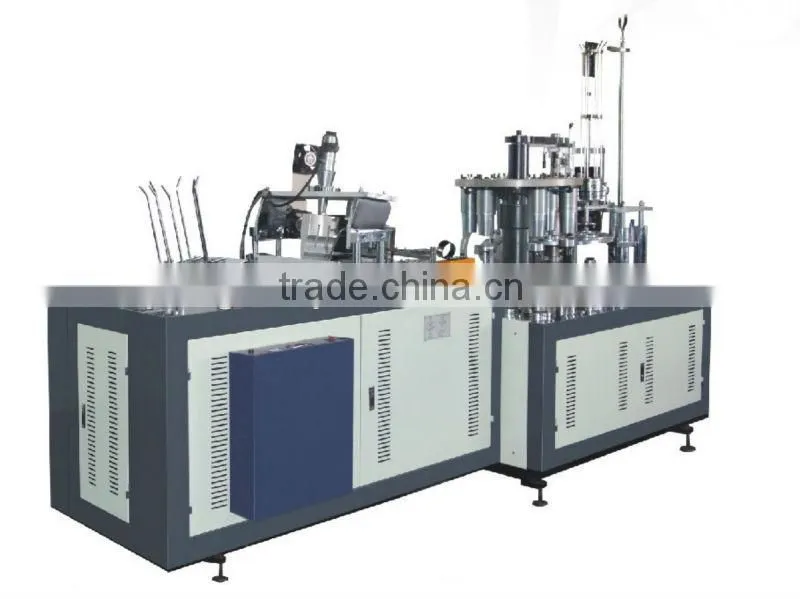

APT-09 High Speed Double Wall Paper Cup/Bowl Forming Machine is assistant equipments of paper cup/bowl forming machine. It can automatically feed paper, seal paper, curling bottom, spray glue, unload bowls/cups, conglutinate outside paper onto the bowl/cup, Photoelectric detection, failure warning, counting and etc. It has advanced craft, reasonable design, automatic operation, convenient maintenance and other advantages. It is widely used to produce direct-pasting, hollow and corrugated double layer cup by method of hot melting adhesion or ultrasonic adhesion according to outer packing method.

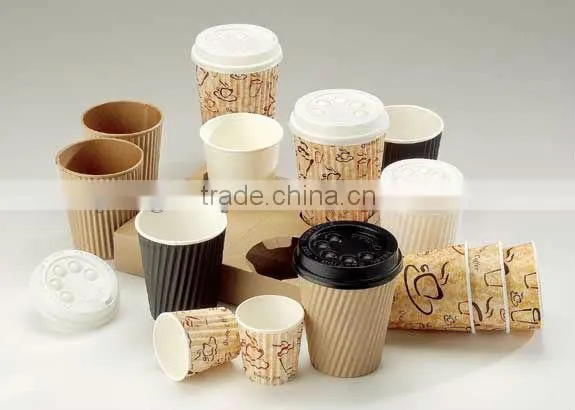

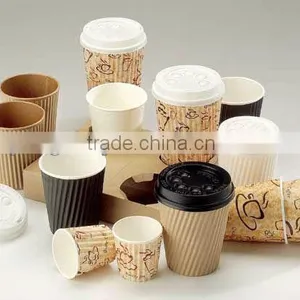

It is the first-choice for production cup/bowl with heat insulation, such as, coffee cup, noodle bowl and etc.
Main Technical Parameters:
Model |
APT-09 |
Suitable Cup/Bowl Size |
8~35oz |
Paper thickness |
240~350gsm paper board |
Running Speed |
50-60pcs/min |
Power Supply |
380V or 220V, 50HZ, 3PH |
Power Consumption |
1.5KW |
Weight |
1000kg |
Dimensions |
2500× 1200× 1500mm |
