Usage:

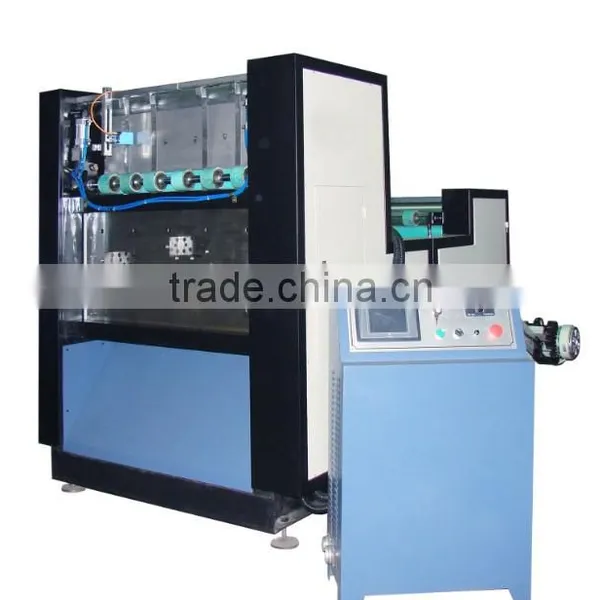

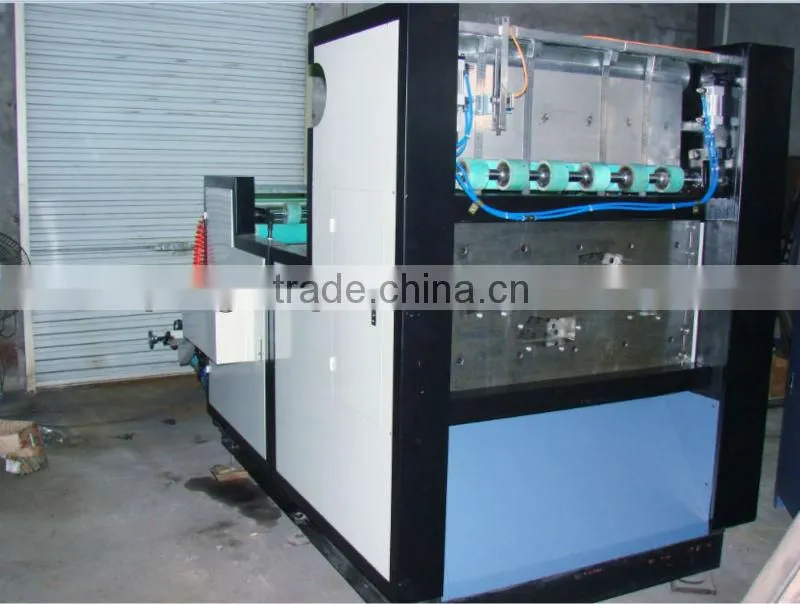

APT-C900 Paper Roll Die Cutting Machine adopts automatic die cutting technology to blend reel slitting, die cutting and scrap removal, saving the slitting link of traditional process and directly cutting print. The print has smooth cut, greatly reducing energy consumption, manpower and labor intensity and improving paper utilization. PLC microcomputer control system and visual liquid crystal human-computer interface achieve full automation, dynamically display working conditions and faults of the machine and achieve intelligent collection. The dinking machine is ideal equipment for slitting disposable paper bowls, paper cups and other paper vessels.
Working Conditions
Ambient Temperature: -1-35ºC
Relative Air Humidity: Not more than 85%
Mains Voltage Fluctuation: 10% at most
As for ambient media, no inflammable, explosive and corrosive substance or drastic vibration
Main Technical Parameter:
Cutting Method |
Die cutting (suitable for paper roll) |
Rated Cutting Speed |
100-250 cycles/min |
Moud Plate Size |
950*420mm |
Paper Specification |
135-400gsm roll paper, width range: 355-880mm |
Roll paper Diameter |
<1.5m |
Paper Feeding Speed |
>35m/min(intermittent work) |
Compressed Air |
0.2mm/min, 0.5MPa |
Paper Roll Width |
Max.950mm |
Installed Power |
6.3kw, 380V,50Hz |
Machine Weight |
2100kg |
Machine Dimension (L*W*H) |
3000mm×1600mm×2000mm |
Control Cabinet Size (L*W*H) |
700mm×700mm×1350mm |
