Features:

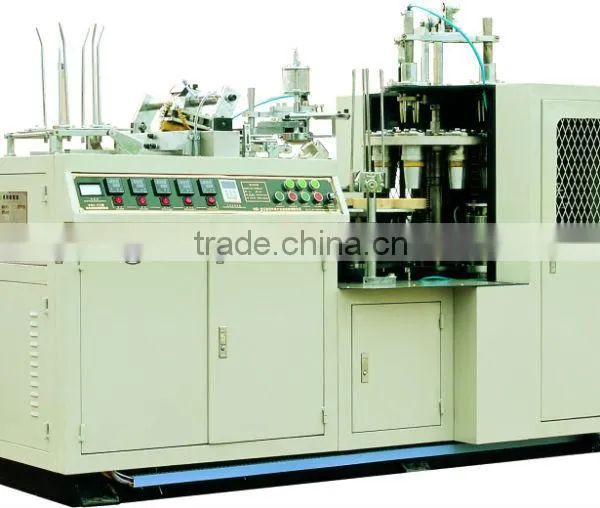

APT-12S Paper Cup Shaping Machine with heater sealing is the automatic machine with multi-running positions, which is suitable for producing different sizes of paper cups and other cone-shaped container by single PE coated paper. This machine runs a whole procedure of paper-feeding,sealing,oiling, bottom-punching,heating, curling,Rimming,and formed cup discharging.
This machine adopts micro-computer system to control the frequency-changing meter and with infinite speed adjustment, it is workable with power ranging from 220v to 380v, automatically control applies to photo control with noncontact switch.
Main Technical Parameter:
Running Speed |
40-50 (pcs/min) |
30-40 (pcs/min) |
30-40 (pcs/min) |
Paper Material |
180-230 Single PE coated paper |
180-230 Single PE coated paper |
180-230 Single PE coated paper |
Cup Size Range |
4-12 Adjustable mould |
14-16 Adjustable mould |
18-22 Adjustable mould |
Total Power |
220V 50Hz 4.8Kw |
220V 50Hz 4.8Kw |
220V 50Hz 4.8Kw |
Weight |
1500kg |
1500kg |
1500kg |
Dimension |
2.6×1.2×1.7 |
2.6×1.2×1.7 |
2.6×1.2×1.7 |
