Usage:

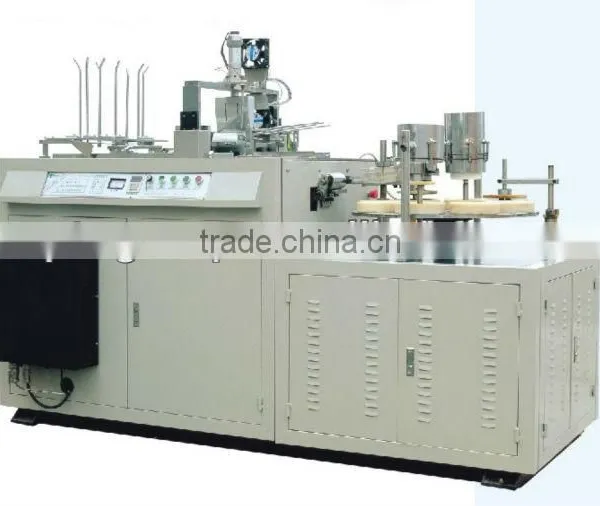

APT-35 is an economical and efficient machine for making big paper containers for filling instant noodles, ice cream and etc. Meantime for hot proof of paper cups/bowls, we have paper bowl outer sleeve forming and gluing machine which is accessorial of the APT-35. It is composed of consecutive processes. This machine adopts microcomputer system to control the frequency chancing meter and stepless governor. Such as automatic paper sending, ultrasonic welding, double cylinder, mechanic transmission, automatic brush glue, unloading, furring, counting etc. It is the first product in domestic market filled with paper bow forming equipment.
Main Technical Parameters:

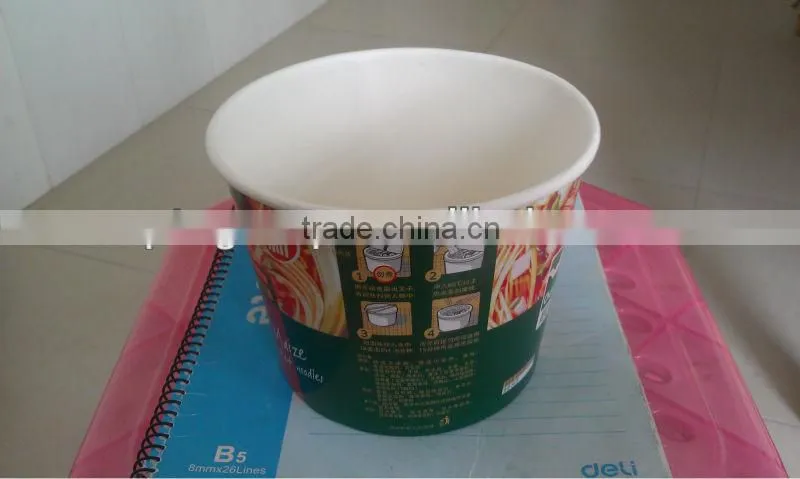

Paper bowl Size: Max.35OZ (Change molds produce different cups' size)
Paper bowl top diameter: Min 85mm ~~Max 150mm
Paper bowl bottom diameter: Min 65mm~~Max 126mm
Paper bowl height: Min 35mm~~Max 125mm
Thickness: 150~~350GSM
Raw material: One or two-side PE coated Paper
Running Speed: 45~~50 PCS/min
General Power: 1.5kw
Power source: 380V 50Hz or 220V 50Hz
Dimension: 2060mmx810mmx1050mm
Weight: 800kg
