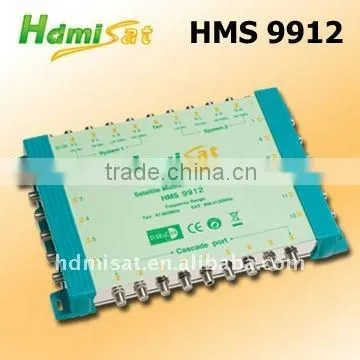

9 in 12 Out DiSEqC2.0 Satellite Multiswitch HMS 912/HMS 9912(Cascade)
Negotiable
MOQ: 40 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hdmisat
Model Number:
HMS 9912
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital HD 5 in 16 DiSEqC 2.0 Satellite MultiswitchNegotiableMOQ: 100 Sets -
DiSEqC 2.0 Satellite Multiswitch 9 inNegotiableMOQ: 40 Sets
-
Satellite TV Cascadable Multiswitch of 13 in 8out/24/32OUTUS$ 40 - 100MOQ: 100 Pieces
-
Cascadable Multiswitch of 10 in 8 OutNegotiableMOQ: 100 Pieces
-
Cascadable /End Type Satellite Multiswitch of 17 in 32 OutUS$ 1 - 130MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
Hdmisat
Model Number
HMS 9912
Specifications
1. 8 SAT inputs;1 Terr input;12 outputs Satellite multiswitch2. Low loss and high isolation
3. Adaptor fitted DC:18V2.5A
Features:
- Suitable for multi-satellite and multi-user system
- 8 satellite inputs, 1 terrestrial input
- 12 subscriber outputs, cascade and finite multiswitches
- Low cascading loss and high isolation
- Feed from Quattro-LNB or Quad-LNB thru 22 KHz generator
- SAT IF selected by 13/18V, 22 KHz and DiSEqC2.0 commands
- Professional design, exquisite appearance and convenient installation
Specifications:
Model | HMS 912 / HMS 9912(Cascade) | |
Inputs | SAT | 8 |
Terr | 1 | |
Subscriber Outputs | 12 | |
Frequency (MHz) | SAT | 950-2150 |
Terr | 47-862 | |
Trunk Loss (dB) (Cascade) | SAT | 9 |
Terr | 6 | |
Tap Loss (dB) | SAT | 0dB±2 |
Terr | 3dB±2 | |
Return Loss (dB) | SAT | 12 |
Terr | 10 | |
Isolation (dB) | LNB-LNB | 35 |
Terr-SAT | 30 | |
SAT-Terr | 35 | |
H/V | 30 | |
Switching Voltage | 15±1V | |
Switching Commands | DiSEqC 2.0 | |
Power Supply | DC:18V2.0A | |

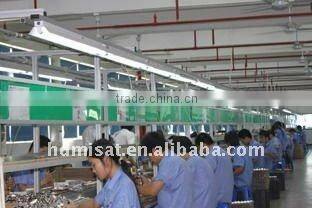

Welcome to visit our factory in Zhuhai and Samples will be sent by express upon request.
You may also like:

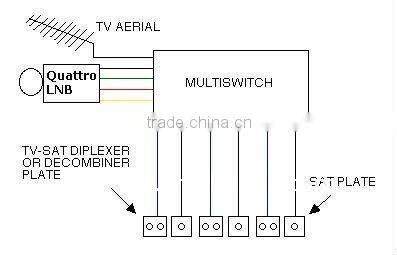

Installing a multiswitch
A multiswitch allows you to feed many satellite TV receivers in various rooms with satellite TV signals from a QUATTRO LNB on your dish. In addition, if you wish, you can also feed aerial signals from a UHF TV aerial or, with the addition of a V24-310 triplexer, any or all of UHF TV (analogue and/or digital), FM radio or DAB.
DISH SIZE
In general, it will be found beneficial to use "the next size larger than normal", for two reasons:
- A multiswitch has losses and, although some incorporate signal amplifiers, providing a better signal to begin with will reduce the percentage of "noise" added by the amplifier.
- Most installations that use a multiswitch will use longer cable runs than a "normal" house, resulting in more signal loss.
